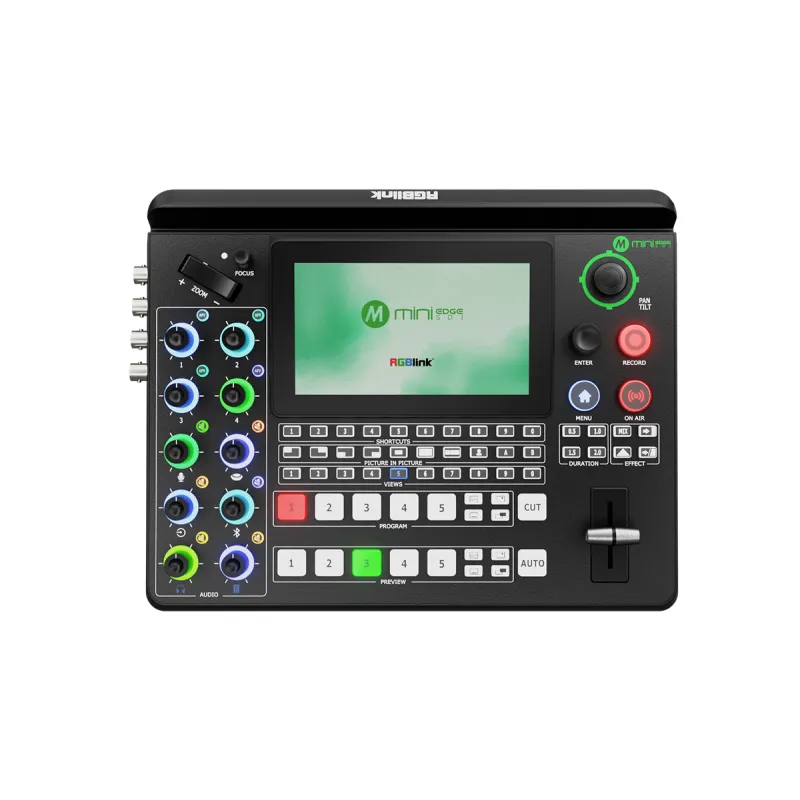

RGBlink Mini-Edge SDI Video Switcher with 4K HDMI and 3G SDI Inputs 230-0008-01-0

RGBlink Mini Edge SDI Production Mixer
10 Channel All-in-One Switcher

Mini Edge SDI features four 4K HDMI 2.0 inputs and four 3G SDI inputs, one UVC and one NDI bi-direction input & output, supporting digital embedded audio and video signals from PC, Camera and more. Also analog audio by 1xPhamton,1xLine in and 1xMic, and a blue tooth audio.

Embedded 5.5-inch monitor
10 input connectors (4x HDMI 2.0, 4x 3G-SDI, 2K UVC, and 2K NDI)
Streaming supports NDI | HX2
Streaming and management via RGBlink TAO Cloud
6-CH customizable video inputs Manual real-time control of PTZ cameras, such as zoom in/out, rotation & focus, via VISCA or NDI
Maximum 8 channels for audio mixing
2-CH independent HD HDMI Third-party control and integration via free RGBlink Central Control Protocol
2K streaming and live via IP and UVC

There are two separately HDMI outputs for multi-viewer Preview, Program or Test Pattern. One USB 3.0 output supports YUY2 and MJPEG capture formats, which can be recognized as webcam for streaming to Facebook, YouTube, ZOOM, etc. The UVC bi-direction for USB disk recording or wireless speaker or wireless microphone, such as RGBlink AI mini. The ethernet port with NDI license enable is bi-direction too, NDI encoder and decoder can work at the same time.

Mini-edge SDI is built in with 5-inch TFT panel for menu operation and multiviewer video display. Compared with mini-edge, mini-edge SDI has 4 more 3G SDI inputs and a ready to license NDI bi-direction in & out, also noise reduction for audio inputs. Else it is the same to mini-edge, which features including dynamic output control, multi-view preview, picture in picture, chroma Key, luma Key, transitions, on board PTZ camera controls and much more.

In the Box
1 Mini Edge SDI device
1 USB-C Cable + Adapter
