ABC Speedy 9 Crane System

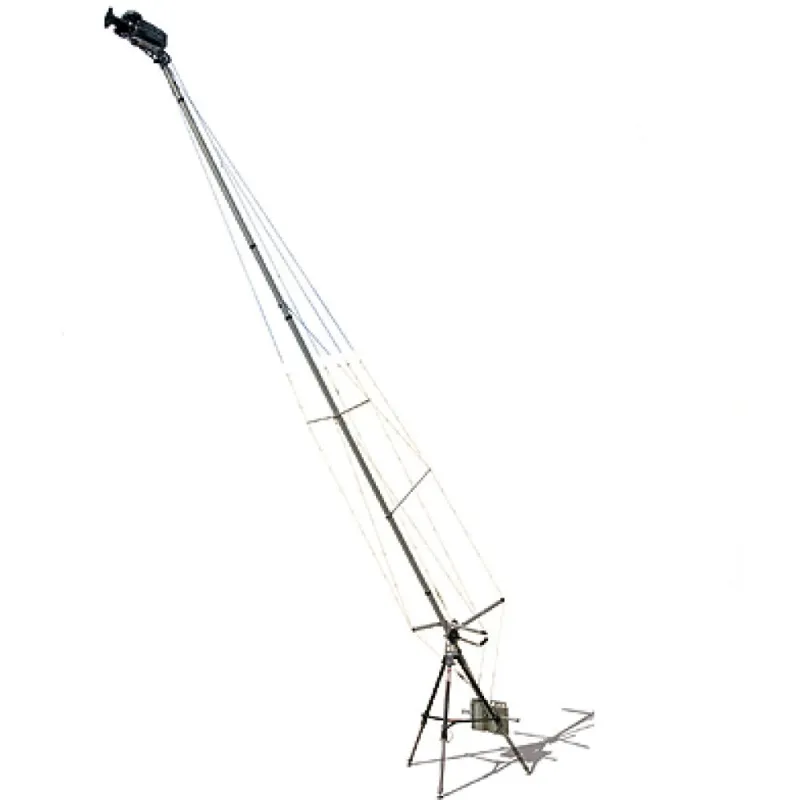

ABC Speedy Crane System

The ABC Speedy is a versatile crane designed for DV/HDV/HD cameras, supporting weights up to 13 kg for Speedy 6 and 10 kg for Speedy 9.

Highlights

• Quick assembly in approximately 10 minutes.
• Base-located hand grip for crane-head angle adjustment.
• Fixed horizontal position pin for Remote Head use.
• Color-coded wired rigs to prevent mix-ups.
• Three assembly lengths: small, medium, and large.
• Universal deployment for flexibility.
• Compatible with ABC Remote Head V5 for 360-degree pan and tilt.

Crane Lengths

Speedy 6

• Large: 4.58 m
• Medium: 2.98 m
• Short: 1.68 m

Speedy 9

• Large: 7.18 m
• Medium: 2.98 m
• Short: 1.68 m

Included Packages

Speedy 6: Includes crane segments, extension segments, outriggers, crane-head, adjustment frame, camera screws, rig sets, weight support bar, safety pins, transport bag, and manual.

Speedy 9: Similar components as Speedy 6, with additional extension segments for larger assembly lengths.

Note: Camera, counterweights, and tripod are not included.

Specifications

Speedy 6

• Weight: 15 kg
• Max Payload: 13 kg
• Counterweight: 58.55 kg

Speedy 9

• Weight: 18.6 kg
• Max Payload: 10 kg
• Counterweight: 74.64 kg
