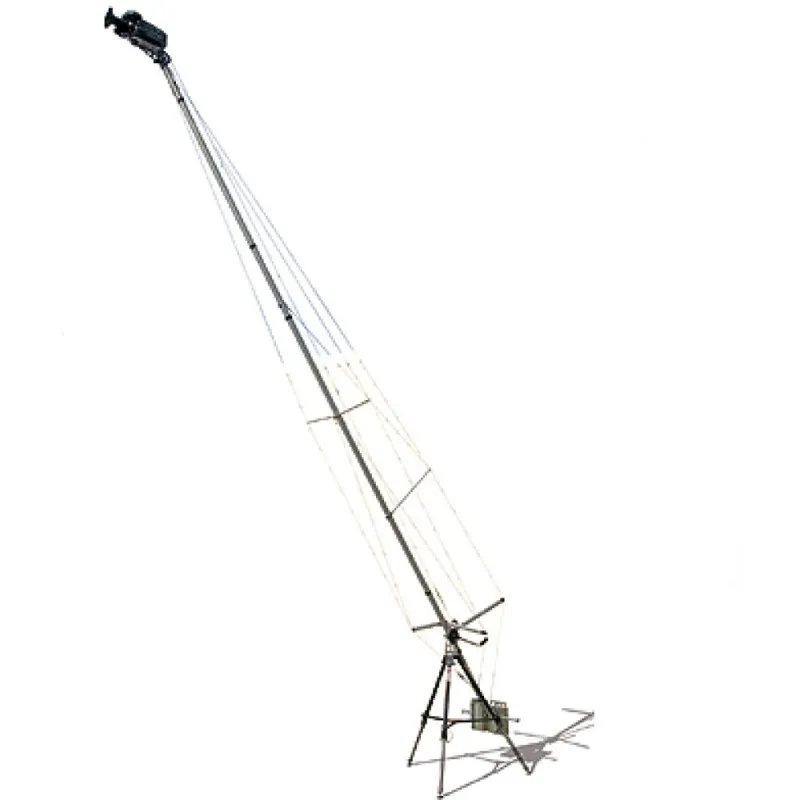

ABC Speedy 6 Crane System

ABC Speedy Crane System

The ABC Speedy is a versatile crane designed for DV/HDV/HD cameras, supporting weights up to 13 kg for Speedy 6 and 10 kg for Speedy 9.

Highlights

• Quick assembly in approximately 10 minutes.
• Base hand grip for continuous crane-head angle adjustment.
• Fixed horizontal position pin for Remote Head use.
• Color-coded wired rigs to prevent mix-ups.
• Three assembly lengths: small, medium, and large.
• Universal deployment for high flexibility.
• Compatible with ABC Remote Head V5 for 360-degree pan and tilt.

Crane Lengths

Speedy 6

• Large: 4.58 m
• Medium: 2.98 m
• Short: 1.68 m

Speedy 9

• Large: 7.18 m
• Medium: 2.98 m
• Short: 1.68 m

Included Packages

Both Speedy 6 and Speedy 9 packages include various crane segments, adjustment frames, camera screws, rig sets for different lengths, a weight support bar, safety pins, a transport bag, and a manual. Note that the camera, counterweights, and tripod are not included.

Specifications

Speedy 6

• Weight: 15 kg
• Max Payload: 13 kg
• Counterweight: 58.55 kg

Speedy 9

• Weight: 18.6 kg
• Max Payload: 10 kg
• Counterweight: 74.64 kg
