ABC Traveller Crane System

ABC Traveller Crane System

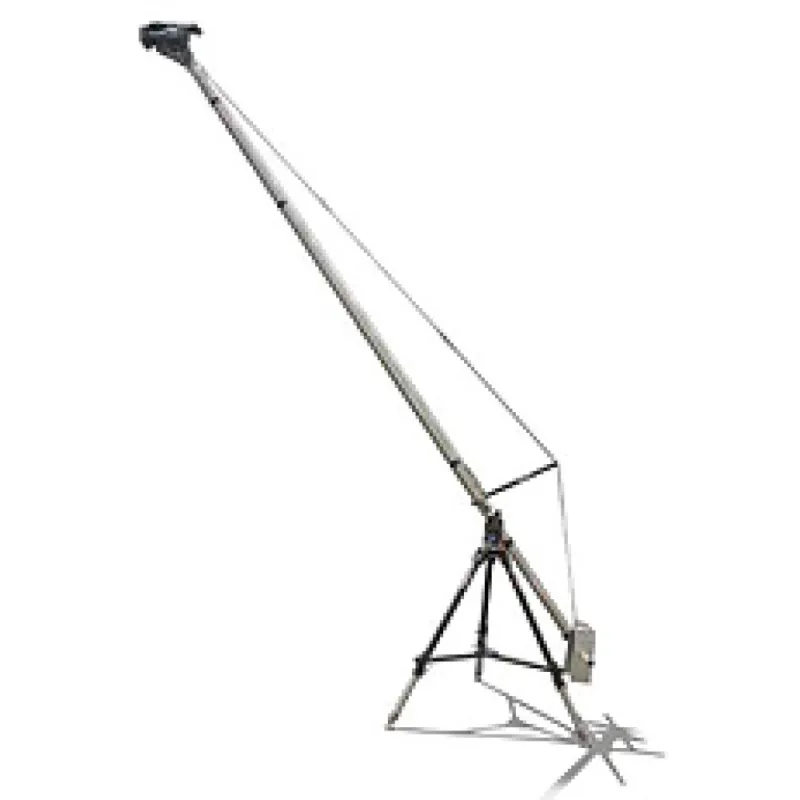

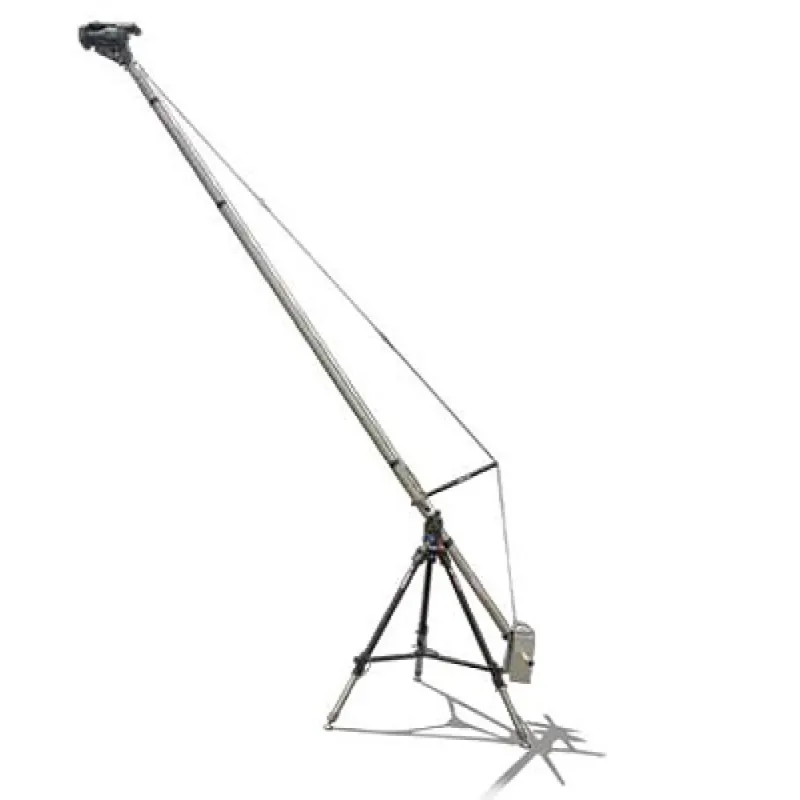

The ABC Traveller Crane System is a robust remote crane designed for DV/HDV cameras weighing up to 7.5kg/16.53 lb.

Highlights

• Quick assembly in approximately 10 minutes
• Color-coded wired rigs to prevent mix-ups
• Three different assembly lengths for flexibility
• Suitable for indoor and outdoor use
• Upgradeable with light ABC - Remote Head V5 for 360-degree pan and tilt

Package Includes

• 1 Crane segment with crane prop
• 2 Extension segments
• 1 Segment with crane-head
• Various camera screws and rig sets
• Weight support bar and safety pins
• Transport bag and manual

Note: Camera, counterweights, and tripod are not included.

Specifications

• Crane weight: 6 kg / 13.23 lb
• Packing length: 165 cm / 5.41 ft
• Transport dimensions: 165 x 40 x 12 cm (64.96 x 15.75 x 4.72 in)
• Total crane length: 4.75 m / 15.58 ft (longest version), 3.45 m / 11.32 ft (middle version), 2.15 m / 7.05 ft (shortest version)
• Lift range: 0 - 4.5 m / 0 - 14.76 ft
• Max. camera weight: 7.5 kg / 16.53 lb (longest version), 11 kg / 24.25 lb (middle version), 15 kg / 33.07 lb (shortest version)
• Counterweight: 32.5 kg / 71.65 lb
