Canare HBCP-D25HD crimp MICRO-BNC connector HBCP-D25HDA

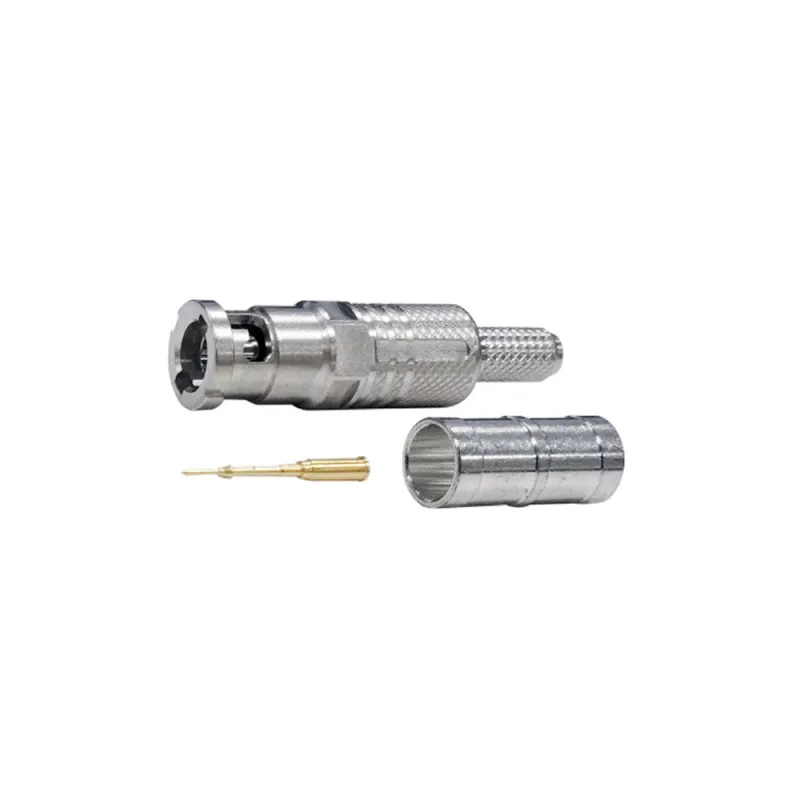

Canare HBCP-D25HD Micro BNC Connector

Canare HBCP-D25HD is a 12G, 75 ohm Micro BNC (M) crimp connector (straight type) suitable for Canare cables L-2.5CHD and L-2.5CHLT.

Usage

• In accordance with the specifications SMPTE 2082-1, 424M & 292M
• HDTV
• 12G/3G/HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Testing equipment

Features

• True 75 ohm design with crimp pin and sleeve
• Attenuation: 20dB at 3GHz, 8dB at 12GHz
• Extended body for better handling
• Position mark on the body allows for easy connector verification
• Excellent cable retention
• Gold-plated center pin
• Connector body is die-cast - achieving lower cost with high performance
• Easy assembly using Canare crimping tool
