Canare L-5CFW flexibilný 3G/HD-SDI coaxial cable CNRL5CFW

Canare

SKU: 52855

Model: CNRL5CFW

Būklė: Naujas produktas

Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.

€ 7,45 su mokesčiais

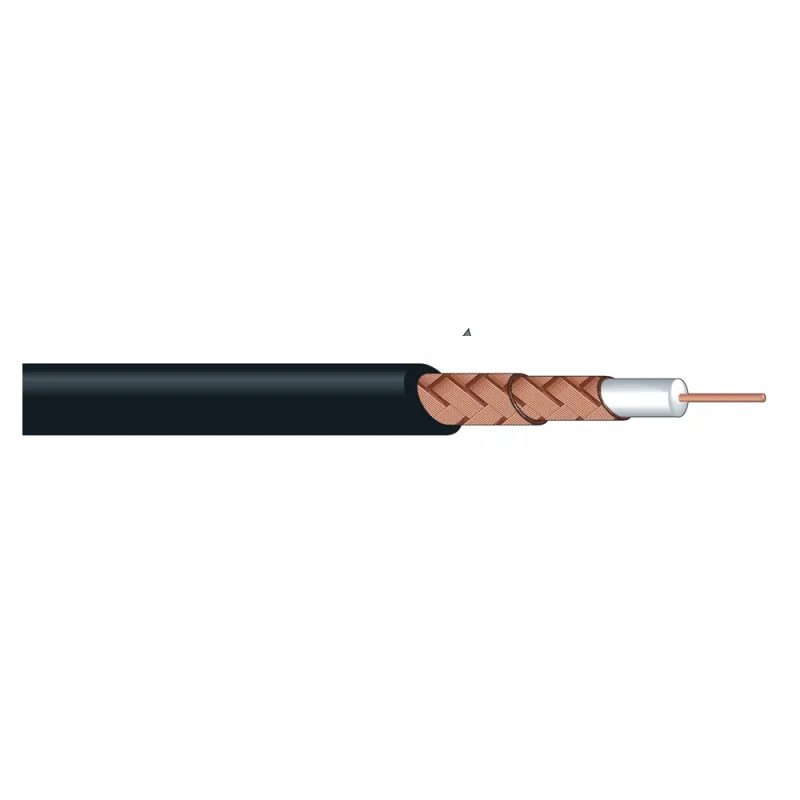

Canare L-5CFW is a "Low Loss" flexible and durable 75 ohm coaxial cable, outer diameter 7.7 mm - meter, price per regular meter.

Daugiau detalių

Type of ProductWires, cables for video
Type of ProductAudio Cable
Type of ProductAudio Adapter
Type of ProductCables
Battery typeCharger
LCD monitorsHDMI adapter
ConnectionsUSB-C to 3.5mm
ConnectionsUSB-C to Micro-B
ConnectionsUSB-C to USB-C
ConnectionsHDMI to HDMI Mini
ConnectionsHDMI to VGA
ConnectionsD-tap male and DC male
Connections3.5mm to USB-C
ConnectionsHDMI to HDMI Micro
ConnectionsBNC to BNC
ConnectionsXLR to XLR
ConnectionsHDMI Mini to HDMI Micro
Connections3.5mm to Lightning
ConnectionsHDMI to HDMI
Lenght, m1
Lenght, m3
Lenght, m0.11
Lenght, m2
Lenght, m1.2

Usage:

  • in accordance with SMPTE 424M & 292M specification
  • HDTV
  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications:

  • Standard produced lengths: 100/200m
  • Shell diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100m: 8.1
  • Central conductor - number and diameter of cores in mm: 1/1.05
  • Total diameter of central conductor in mm: 1.05
  • Foam dielectric - diameter in mm: 5.00
  • Central conductor resistance in Ω/100m: 2.3
  • Resistance of the outer conductor in Ω/100m: 0.5
  • Static capacitance in pF/m: 55
  • Attenuation in dB/100m: 19.4
