Canare L-4CFB installation coaxial SDI cable, metrage CNRL4CFB
SKU: 52853
Model: CNRL4CFB
Ean: 0000000000000
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 2,44 su mokesčiais
Canare L-4CFB installation 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable. Price per meter
| Type of Product | Audio Adapter |
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Type of Product | Audio Cable |
| Battery type | Charger |
| LCD monitors | HDMI adapter |
| Connections | HDMI to HDMI Micro |
| Connections | BNC to BNC |
| Connections | XLR to XLR |
| Connections | HDMI Mini to HDMI Micro |
| Connections | 3.5mm to Lightning |
| Connections | HDMI to HDMI |
| Connections | USB-C to 3.5mm |
| Connections | USB-C to Micro-B |
| Connections | USB-C to USB-C |
| Connections | HDMI to HDMI Mini |
| Connections | HDMI to VGA |
| Connections | D-tap male and DC male |
| Connections | 3.5mm to USB-C |
| Lenght, m | 2 |
| Lenght, m | 1.2 |
| Lenght, m | 1 |
| Lenght, m | 3 |
| Lenght, m | 0.11 |

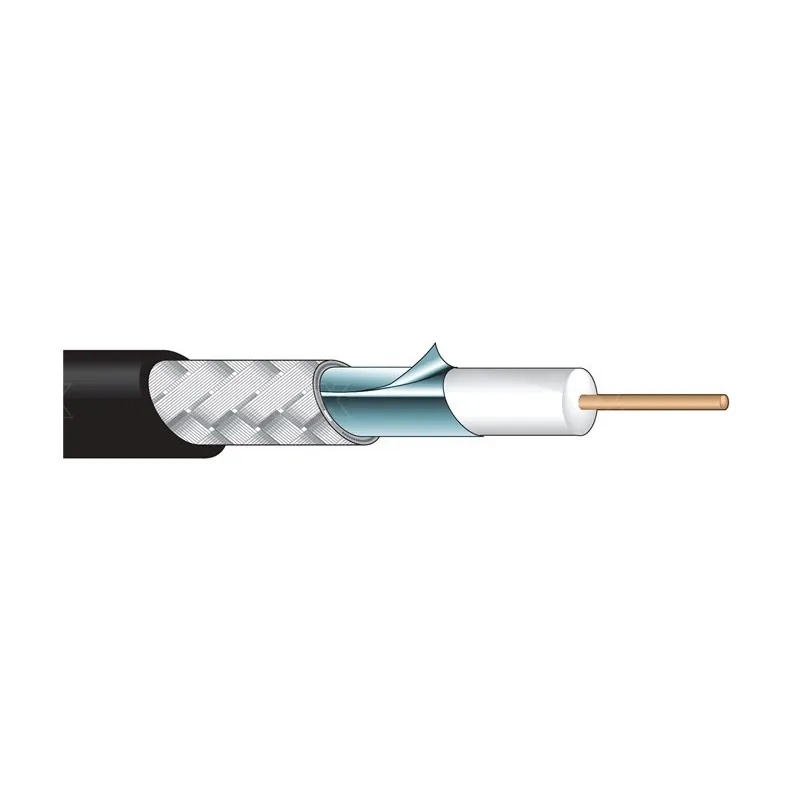

Canare L-4CFB is a 3G/HD/SD-SDI "low loss" 75 ohm coaxial cable with a central copper wire conductor, a tightly woven tinned copper braid and an aluminum foil with excellent shielding capability. The Canare L-4CFB cable is suitable for fixed installations.
Usage:
- HD-Serial Digital Video
- Satellite Technology
- HDTV
- Broadband equipment
- SMPTE 259M, 292M,424M
Features:
- Copper wire central conductor
- PE foam dielectric
- Tinned copper braid + 100% Alu foil
- Dielectric layers separated from conductor
- 100% precision coaxial cable - continuously variable frequency test
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 6.1
- Cable weight in kg/100m: 4.9
- Total diameter of central conductor in mm: 0.8
- Foam dielectric - diameter in mm: 3.7
- Resistance of central conductor in Ω/100m:3.6
- Resistance of outer conductor in Ω/100m:1,0
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 23,6
- Impedance in Ω: 75
