Canare L-3C2VS YEL (yellow color) CNRL3C2VSYEL
SKU: 52849
Model: CNRL3C2VSYEL
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 3.45 su mokesčiais

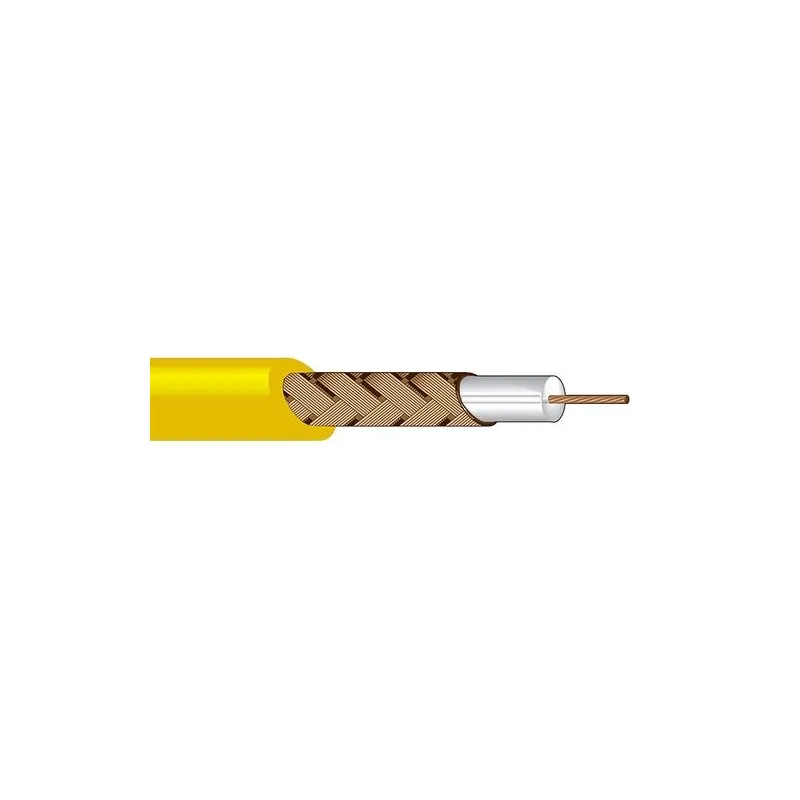

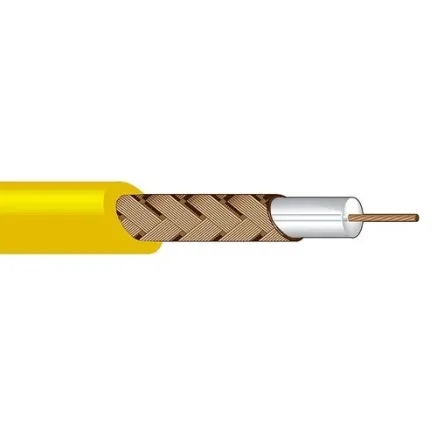

Canare L-3C2VS YEL /yellow/
Canare L-3C2VS is a very lightweight and extremely flexible 5.5mm HD/SD-SDI coaxial cable with a braided center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures.
| Type of Product | Cables |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |
Application:
- HD/SD-SDI video
- PAL and NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Patch cables for video
Cable Specifications:
- Sheath diameter (overall diameter) in mm: 5.5
- Cable weight in kg/100 m: 4.5
- Medium conductor - number and diameter of cores in mm: 7/0.18
- Total diameter of the middle conductor in mm: 0.54
- Foam dielectric - diameter in mm: 3.1
- Resistance of the middle conductor in ohms/100 m: 10.5
- Resistance of outer conductor in ohms/100 m: 1.9
- Static capacitance in pF/m: 67
- Attenuation in dB/100 m: 4.5
- Impedance in ohms: 75
Connector specifications: - Internal connector:
- Tensile strength in kg: >24.9
- Insulation resistance at 500 V DC in ohms: 24.5 mm: >1000M
- Rated voltage at 1 min: 1500 V AC (rms)
- Central contact resistance: <6m ohms
- External contact resistance: 1 mm contact force: <3m ohm
- Impedance in ohms: 75
- Connector body - material/surface: brass/nickel
- Center contact - material/surface: brass/gold
- Outer contact - material: beryllium copper
- Dielectric - material: PTFE polytetrafluoroethylene
- Crimp sleeve - material/surface: copper/tin
