Canare L-3C2VS RED Video Cable 75 Ohm 5.5mm
SKU: 52848
Model: CNRL3C2VSRED
Ean: 0000000000000
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 3.45 su mokesčiais
Canare L-3C2VS RED

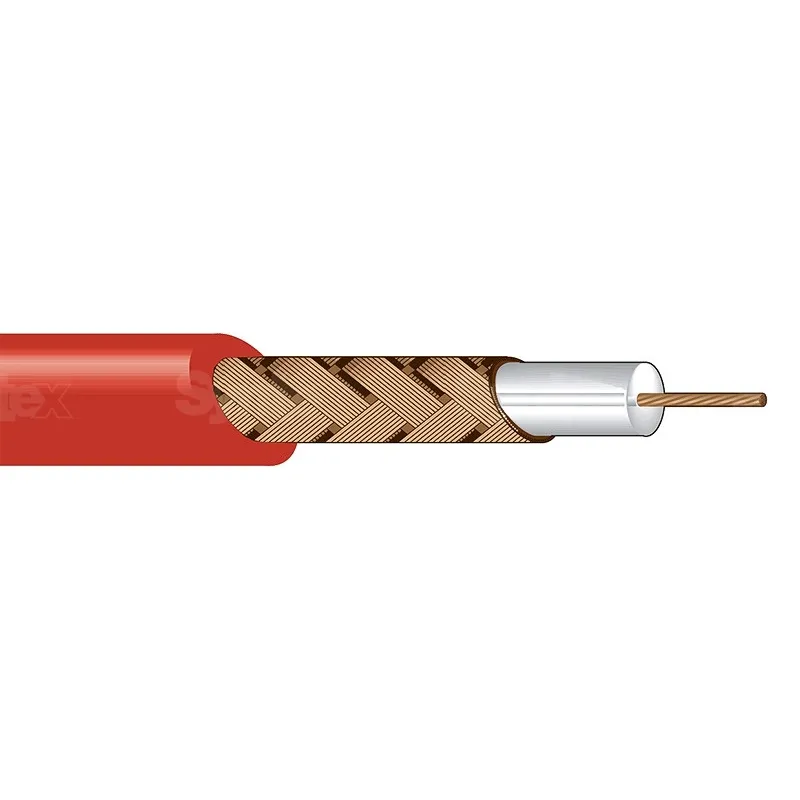

Canare L-3C2VS is a very lightweight and super flexible 75 ohm 5.5mm HD/SD-SDIcoaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures.
| Type of Product | Cables |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |
Usage:
- HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
- Rack cabling
- Video Patch Cables
Cable Specifications:
- Sheath diameter (overall diameter) in mm:5.5
- Cable weight in kg/100m: 4.5
- Central conductor - number and diameter of strands in mm: 7/0,18
- Total diameter of central conductor in mm: 0.54
- Foam dielectric - diameter in mm: 3.1
- Resistance of the central conductor in ?/100m:10.5
- Outer conductor clearance in ?/100m:1.9
- Static capacitance in pF/m:67
- Attenuation in dB/100m:4.5
- Impedance in ?: 75
Connector Specifications:
- Cable pull in kg:>24.9
- Insulation resistance at 500V DC in ?:>1000M
- Rated voltage for 1min: 1500V AC (rms)
- Resistance of central contact:<6m ohm
- Resistance of outer contact:<3m ohm
- Impedance in ? : 75
- Connector body - material/surface : Brass / Nickel
- Central contact - material/surface:Brass / Gold
- External contact - material: Beryllium Copper
- Dielectric - material: PTFE polytetrafluoroethylene
- Crimp sleeve - material/surface: Copper / Tin
