Canare L-3C2VS GRN Video Cable 6803 - CNRL3C2VSGRN

Canare

SKU: 52847

Model: CNRL3C2VSGRN

Būklė: Naujas produktas

Pristatymas per 5 - 7 dienas

€ 3.45 su mokesčiais

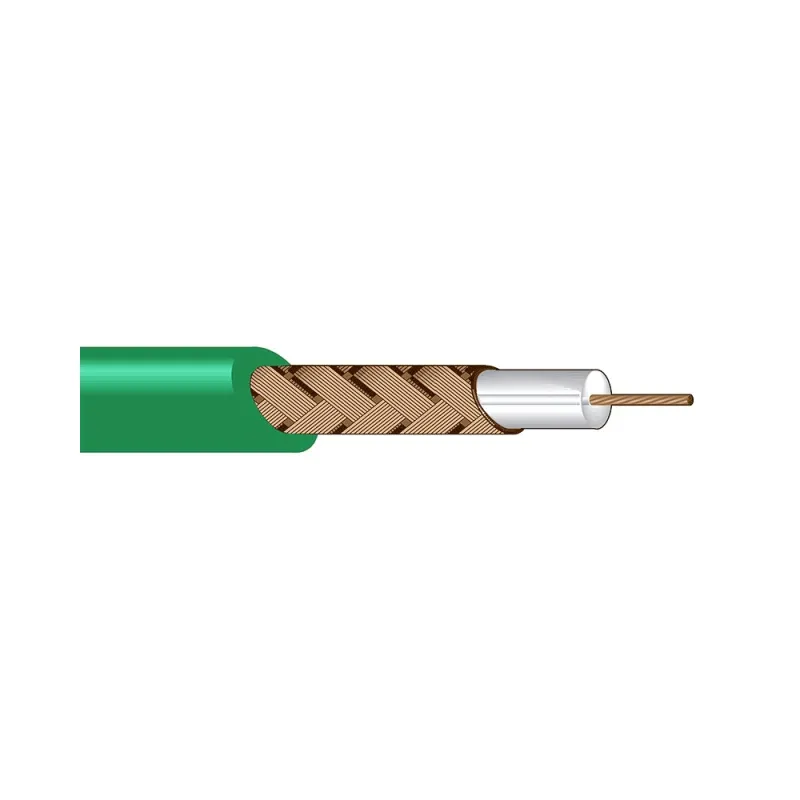

Canare L-3C2VS

is a very lightweight and super flexible 75 ohm 5.5mm coaxial cable with a stranded center conductor and a tightly woven shielded outer conductor. The L-3C2VS cable remains flexible even at low temperatures.

Daugiau detalių

Type of ProductCables
Type of ProductWires, cables for video


Usage:

  • HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment
  • Rack cabling
  • Video Patch Cables

Specifications:

  • Standard manufactured lengths: 100/200m
  • Sheath diameter (overall diameter) in mm:5.5
  • Cable weight in kg/100m: 4.5
  • Central conductor - number and diameter of strands in mm: 7/0,18
  • Total diameter of central conductor in mm: 0.54
  • Foam dielectric - diameter in mm: 3.1
  • Resistance of the central conductor in ohm/100m:10.5
  • Resistance of the outer conductor in ohm/100m:1,9
  • Static capacitance in pF/m:67
  • Attenuation in dB/100m:4.5
  • Impedance in Ohm: 75
