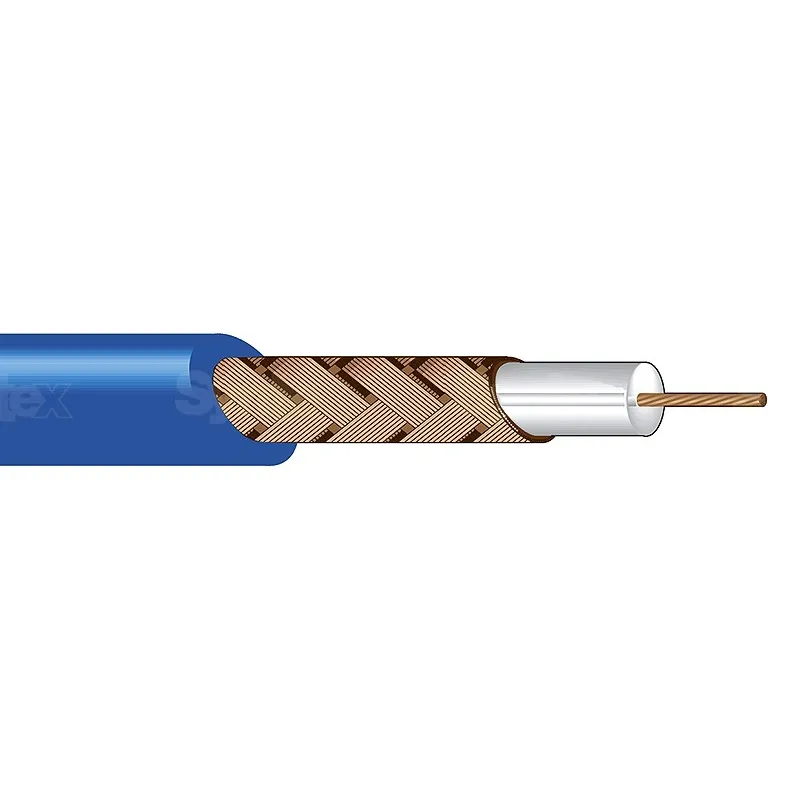

Canare L-3C2VS BLU Video Cable 75 Ohm 5.5mm

Usage:

• HD/SD-SDI video
• PAL & NTSC analog video
• Satellite applications
• TELCO
• Test equipment
• Rack cabling
• Video Patch Cables

Cable Specifications:

• Sheath diameter (overall diameter) in mm:5.5
• Cable weight in kg/100m: 4.5
• Central conductor - number and diameter of strands in mm: 7/0,18
• Total diameter of central conductor in mm: 0.54
• Foam dielectric - diameter in mm: 3.1
• Resistance of the central conductor in ?/100m:10.5
• Outer conductor clearance in ?/100m:1.9
• Static capacitance in pF/m:67
• Attenuation in dB/100m:4.5
• Impedance in ?: 75

Connector Specifications:

• Cable pull in kg:>24.9
• Insulation resistance at 500V DC in ?:>1000M
• Rated voltage for 1min: 1500V AC (rms)
• Resistance of central contact:<6m ohm
• Resistance of outer contact:<3m ohm
• Impedance in ? : 75
• Connector body - material/surface : Brass / Nickel
• Central contact - material/surface:Brass / Gold
• External contact - material: Beryllium Copper
• Dielectric - material: PTFE polytetrafluoroethylene
• Crimp sleeve - material/surface: Copper / Tin
