Canare BCJ-JR Panel mount connector BCJ-JR
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 10,09 su mokesčiais
- Jack to Jack or Jack to Solder
- Mounts in Common Canare Hole Punch
- Totally Isolated from Panel
- Flush mount to avoid impact
| Type of Product | Wires, cables for video |
| Type of Product | Cables |
| Connections | BNC to BNC |

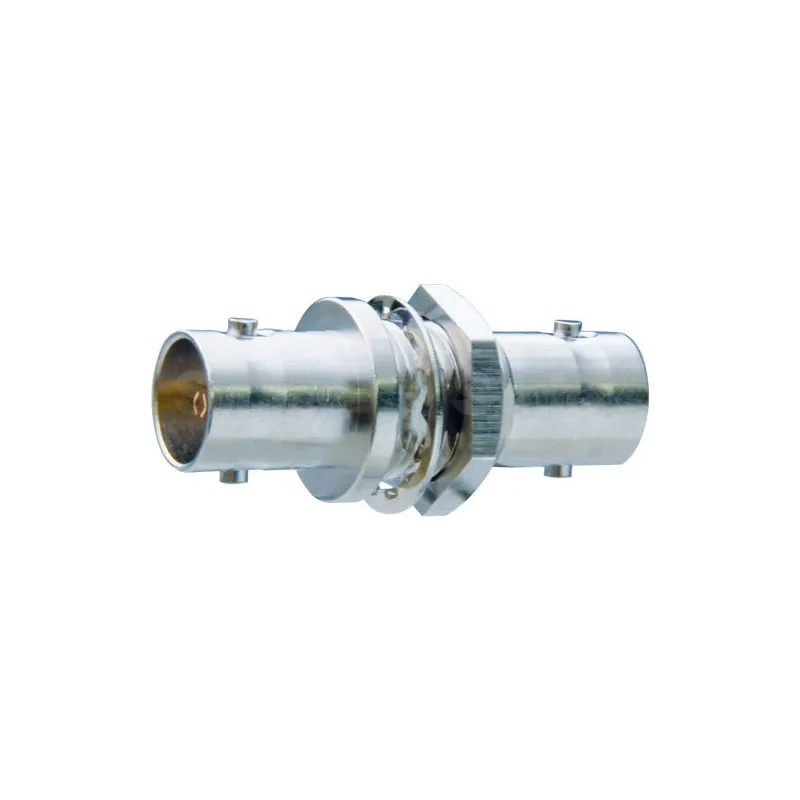

Canare BCJ-JR is a 75 ohm BNC(F) / BNC(F) double-sided Panel mount connector
Applications:
- Headends
- Multimedia Edit Suites
- Master Control Rooms
- Satellite
- TelCom
- Broadband
Specifications:
- Bandwidth VSWR Return Loss DC-2GHz: 1.1 >26dB
- Center Contact Material / Plating: Beryllium Copper/ Gold
- Body/ Material Plating: Brass/Nickel
- Dielectric: PTFE
- Flange Material / Plating: DieCast AL / Nickel
- Insulation Resistance at 500V DC: >1000 MegaOhms
- Voltage Rating for 1 Minute: 1500V AC(rms)
- Center Contact Resistance: <6 miliOhms
- Outer Contact Resistance: <3 miliOhms
