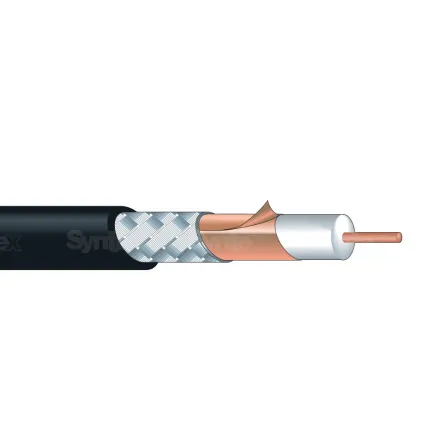

Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk CNRL55CUHD
SKU: 52778
Model: CNRL55CUHD
Ean: 0000000000000
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.
| Type of Product | Wires, cables for video |
| Type of Product | Audio Cable |
| Type of Product | Audio Adapter |
| Type of Product | Cables |
| Battery type | Charger |
| LCD monitors | HDMI adapter |
| Connections | HDMI to VGA |
| Connections | D-tap male and DC male |
| Connections | 3.5mm to USB-C |
| Connections | HDMI to HDMI Micro |
| Connections | BNC to BNC |
| Connections | XLR to XLR |
| Connections | HDMI Mini to HDMI Micro |
| Connections | 3.5mm to Lightning |
| Connections | HDMI to HDMI |
| Connections | USB-C to 3.5mm |
| Connections | USB-C to Micro-B |
| Connections | USB-C to USB-C |
| Connections | HDMI to HDMI Mini |
| Lenght, m | 0.11 |
| Lenght, m | 2 |
| Lenght, m | 1.2 |
| Lenght, m | 1 |
| Lenght, m | 3 |
Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.
Canare L-5.5CUHDis a12G-SDI75 ohm digital video coaxial cable from our high-end " Ultra Coax" series with an outer diameter of 7.7 mm.Price per standard meter
Usage:
- compliant with ST 2082-1, SMPTE 424M, 259M and 292M specifications
- HDTV
- 12G-SDI, 3G-SDI, HD/SD-SDI video
- PAL & NTSC analog video
- Satellite applications
- TELCO
- Test equipment
Specifications:
- Standard manufactured lengths:100/200/500/1000m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 7.1
- Total diameter of central conductor in mm: 1.35 (wire)
- Foam dielectric - diameter in mm: 5.55
- Resistance of central conductor in Ω/100m: 1.3
- Resistance of outer conductor in Ω/100m:1,0
- Static capacitance in pF/m:52
- Attenuation in dB/100m at 12G-SDI 11.88Gbps: 39.1
