Canare 12G-SDI Ultra Coax Cable L-5.5CUHD bulk CNRL55CUHD

Canare

SKU: 52778

Model: CNRL55CUHD

Ean: 0000000000000

Būklė: Naujas produktas

Pristatymas per 5 - 7 dienas

€ 5.45 su mokesčiais

Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.

Daugiau detalių

Type of ProductAudio Adapter
Type of ProductCables
Type of ProductWires, cables for video
Type of ProductAudio Cable
Battery typeCharger
LCD monitorsHDMI adapter
ConnectionsHDMI Mini to HDMI Micro
Connections3.5mm to Lightning
ConnectionsHDMI to HDMI
ConnectionsUSB-C to 3.5mm
ConnectionsUSB-C to Micro-B
ConnectionsUSB-C to USB-C
ConnectionsHDMI to HDMI Mini
ConnectionsHDMI to VGA
ConnectionsD-tap male and DC male
Connections3.5mm to USB-C
ConnectionsHDMI to HDMI Micro
ConnectionsBNC to BNC
ConnectionsXLR to XLR
Lenght, m1.2
Lenght, m1
Lenght, m3
Lenght, m0.11
Lenght, m2

Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 39.1 dB/100 m @ 6 GHz at 7.7 mm diameter and 7.1 kg/100 m weight. Impedance 75 ohms, capacitance 52 pF/m. Capable of carrying 12G-SDI signal over distances up to 102 m (depending on technology used). Price per 1 m.

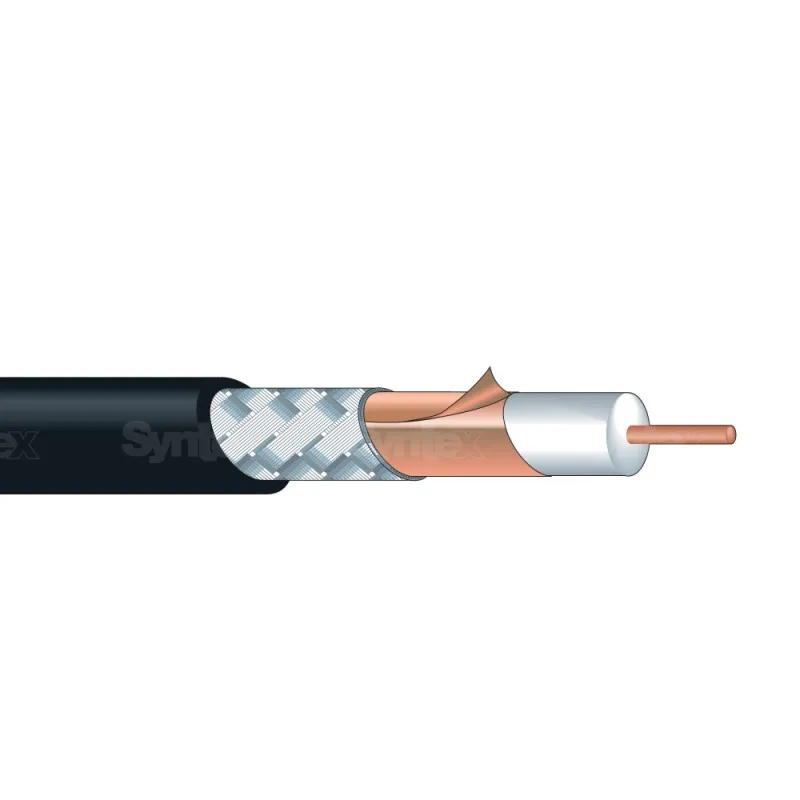

Canare L-5.5CUHDis a12G-SDI75 ohm digital video coaxial cable from our high-end " Ultra Coax" series with an outer diameter of 7.7 mm.Price per standard meter

Usage:

  • compliant with ST 2082-1, SMPTE 424M, 259M and 292M specifications
  • HDTV
  • 12G-SDI, 3G-SDI, HD/SD-SDI video
  • PAL & NTSC analog video
  • Satellite applications
  • TELCO
  • Test equipment

Specifications:

  • Standard manufactured lengths:100/200/500/1000m
  • Sheath diameter (overall diameter) in mm: 7.7
  • Cable weight in kg/100m: 7.1
  • Total diameter of central conductor in mm: 1.35 (wire)
  • Foam dielectric - diameter in mm: 5.55
  • Resistance of central conductor in Ω/100m: 1.3
  • Resistance of outer conductor in Ω/100m:1,0
  • Static capacitance in pF/m:52
  • Attenuation in dB/100m at 12G-SDI 11.88Gbps: 39.1
