Canare 12G-SDI Ultra Coax Cable L-3.3CUHD CNRL33CUHD
SKU: 52777
Model: CNRL33CUHD
Ean: 0000000000000
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 3.45 su mokesčiais

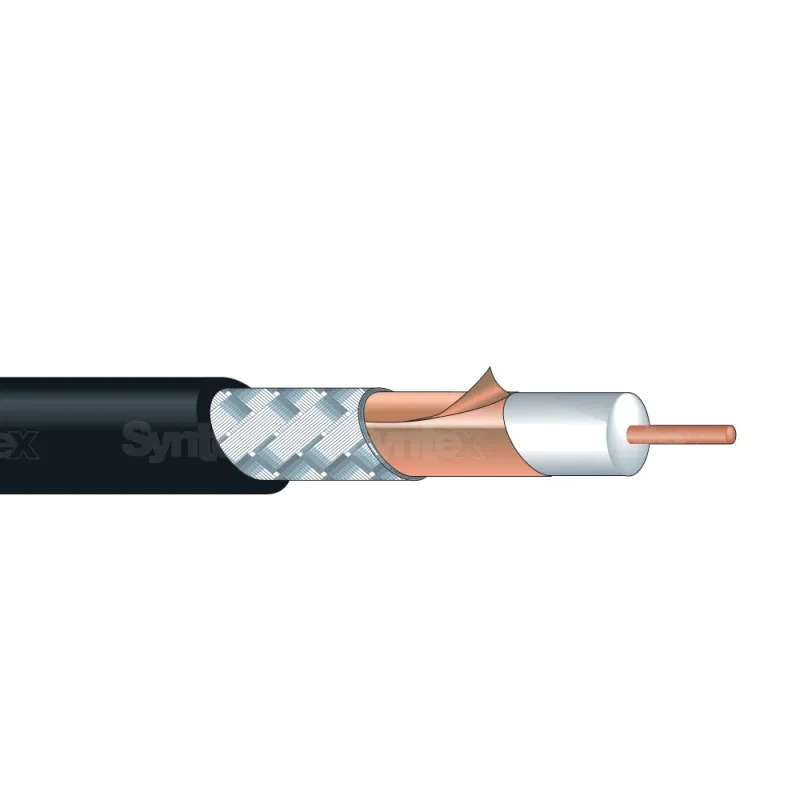

Special 12G-SDI coaxial cabling (SMPTE 2082-1). Attenuation 68.5 dB/100 m @ 6 GHz at 5.5 mm diameter and 4.1 kg/100 m weight. Impedance 75 ohms, capacitance 55 pF/m. Capable of carrying 12G-SDI signal over distances up to 58 m (depending on technology used). Price per 1 m.
| Type of Product | Wires, cables for video |
| Type of Product | Audio Cable |
| Type of Product | Audio Adapter |
| Type of Product | Cables |
| Battery type | Charger |
| LCD monitors | HDMI adapter |
| Connections | USB-C to USB-C |
| Connections | HDMI to HDMI Mini |
| Connections | HDMI to VGA |
| Connections | D-tap male and DC male |
| Connections | 3.5mm to USB-C |
| Connections | HDMI to HDMI Micro |
| Connections | BNC to BNC |
| Connections | XLR to XLR |
| Connections | HDMI Mini to HDMI Micro |
| Connections | 3.5mm to Lightning |
| Connections | HDMI to HDMI |
| Connections | USB-C to 3.5mm |
| Connections | USB-C to Micro-B |
| Lenght, m | 3 |
| Lenght, m | 0.11 |
| Lenght, m | 2 |
| Lenght, m | 1.2 |
| Lenght, m | 1 |
Cable Specifications
- Sheath diameter (overall diameter) in mm: 5.5
- Cable weight in kg/100m: 4.1
- Central conductor - number/diameter in mm: 1/0.75
- Total diameter of central conductor in mm:0.75
- Foam dielectric - diameter in mm: 3,3
- Resistance of central conductor in Ω/1000m: <= 41.4Ω/km (20°C)
- Resistance of outer conductor in Ω/1000m: <= 14.9Ω/km (20°C)
- Temperature range:-20°C ~ +75°C
- Static Capacitance in nF/1km: 55nF/km ( 1kHz)
- Attenuation in dB/100m at 6.0GHz: 68.5dB/100m 12G-SDI
