Neutrik NBNC75BWU13 rearTWIST HD BNC connector NBNC75BWU13
SKU: 49077
Model: NBNC75BWU13
Ean: 7613187002595
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 9.45 su mokesčiais

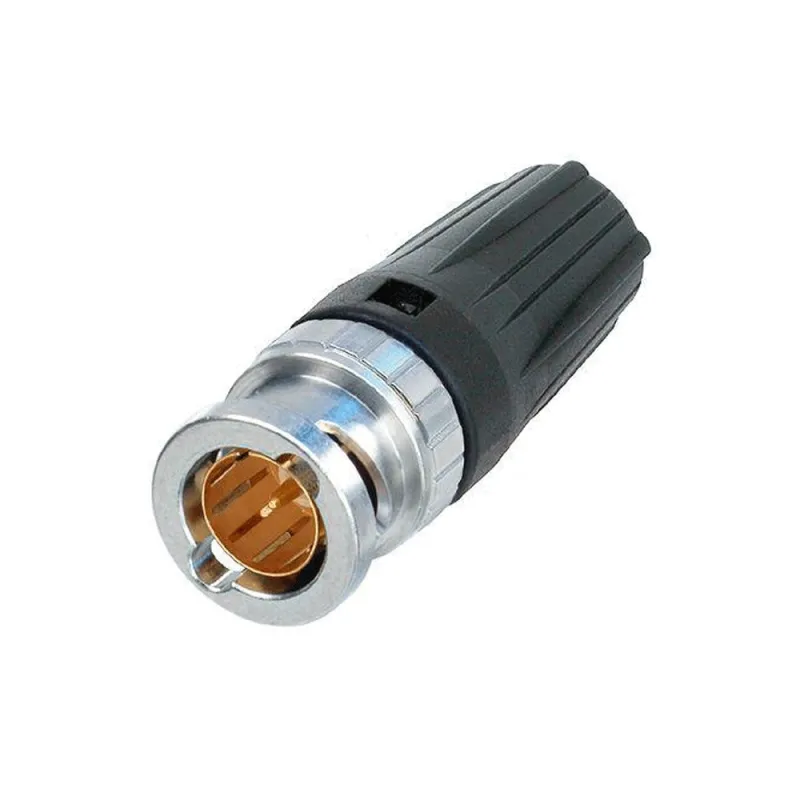

The rearTWIST HD BNC cable connector offers a true 75 Ω design and is perfectly suitable for HD applications.
The patented rearTWIST boot guarantees easy access even in high density applications and offers color coding.
| Type of Product | Audio Adapter |
| Type of Product | Cables |
| Type of Product | Wires, cables for video |
| Type of Product | Audio Cable |
| Battery type | Charger |
| LCD monitors | HDMI adapter |
| Connections | 3.5mm to Lightning |
| Connections | HDMI to HDMI |
| Connections | USB-C to 3.5mm |
| Connections | USB-C to Micro-B |
| Connections | USB-C to USB-C |
| Connections | HDMI to HDMI Mini |
| Connections | HDMI to VGA |
| Connections | D-tap male and DC male |
| Connections | 3.5mm to USB-C |
| Connections | HDMI to HDMI Micro |
| Connections | BNC to BNC |
| Connections | XLR to XLR |
| Connections | HDMI Mini to HDMI Micro |
| Lenght, m | 1.2 |
| Lenght, m | 1 |
| Lenght, m | 3 |
| Lenght, m | 0.11 |
| Lenght, m | 2 |
Suitable cable:
Draka 1.2L/4.8Dz, Draka 1.2L/4.95AF, Canford SDV-F-HD, Cordial CVM 12-50 HD-FLEX, Cordial CVM 12-50 UHD-Flex, Percon VK770F
Crimp size:
Pin: 1.6 mm (square)
Shield: 7.36 mm (hex)
- Features & Benefits
“rearTWIST Principle” locking/unlocking using the easily accessible soft touch boot (Patent DE 100 48507) - Ideal for recessed bulkheads where access to the “head” of the connector might be an issue. These connectors turn from the back and not the front.
- True 75 Ω design meets the stringent HDTV / DVD requirements
- Leading area: Avoids tilting due to side forces to protect contacts from deformation. Guarantees a lifetime of min. 1000 mating cycles!
- Snug-fit center pin insert provides tactile feedback
- Shield and jacket crimp technology prevents the problem of an exposed grounding braid on cable assemblies
- Excellent cable protection and retention
- Precise Swiss machined brass parts for outstanding durability
- Accessories include color coded boots in 10 standard colors, crimp tool and dies
Technical Information
Product
- Title: NBNC75BWU13
- Connection Type: BNC 75 Ω
- Gender: male
Electrical
- Signal Type: HD, SDI, Video, AES/EBU, Composit, YUV, RGB, RGBH, RGBHV
- Contact resistance: ≤ 3 mΩ
- Contact resistance: ≤ 2 mΩ
- Dielectric strength: 1,5 kVdc
- Impedance: 75 Ω
- Insulation resistance: > 5 GΩ
- Rated voltage: <50
- VVSWR:
≤ 1.050/>32 dB up to 1 GHz
≤ 1.065/>30 dB up to 2 GHz
≤ 1.100/>26 dB up to 3 Ghz
Mechanical
- Cable O.D.: 7.3 mm
- Cable retention: > 30 N (Center)
- Crimp size: 7,36 Hex crimp (shield)
- Crimp size (pin): 1,6 Square crimp (pin) acc. IEC 60803 (die designation 2)
- Insertion force: < 25 N
- Lifetime: > 1000 mating cycles
- Locking device: Bayonett
- Cable anchoring: Jacket crimping
Material
- Contacts: Brass: (CuZn35Pb2), 0.2 µm AuCo (Center contact)
- Insert: PTFE
- Shell: Brass (CuZn39Pb3)
- Shell plating: Optalloy®
- Environmental
- Temperature range: -30 °C to +85 °C
- Contact crimpability: Complies with IEC 60803 and IEC 60352-2
