Neutrik NBNC75BTU11 rearTWIST HD BNC konektor NBNC75BTU11
SKU: 49076
Model: NBNC75BTU11
Ean: 7613187002540
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 9.45 su mokesčiais
- Easy rearTWIST Locking/Unlocking
- Ideal for Recessed Bulkheads
- Swiss-Machined Brass Plating
- 7.3mm Cable Outside Diameter
- Optional Color-Coding in 10 x Hues
- Tactile, Snug-Fit Center Pin
| Type of Product | Cables |
| Connections | BNC to BNC |

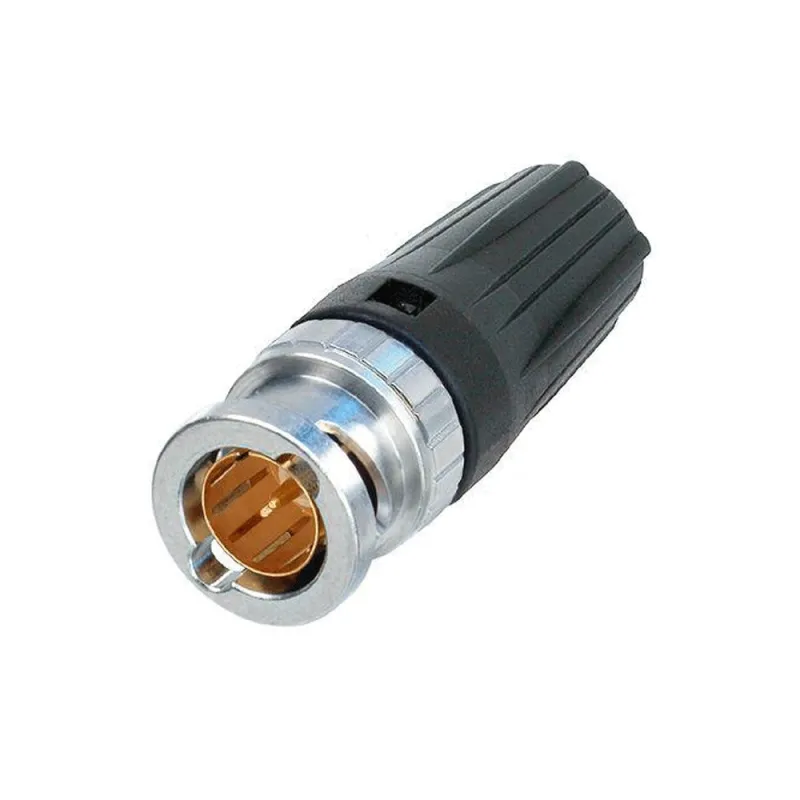

The Neutrik NBNC75BTU11 rearTWIST BNC Cable Connector uses a patented rear locking system that is ideal for recessed bulkheads and other setups where it might be difficult to access the front end of the connector. This 75-ohm connector resists side-to-side warping and features a sturdy design with a lifetime of 1000 mating-cycles. The rearTWIST boot can be color-coded with separately available boots in 10 hues.
Compatible Cables
- Belden 1694A (ANH), 4694R
- Bryant BD SD11
- Canare L-4.5CHD
- Clark Wire CD7506-0
- CommScope 5765
- Gepco VSD2001
- Suhner S05163-02, S05133-07
- Percon VK77
Crimp Size
- Pin: 1.6mm, Square
- Shield: 7.36mm, Hex
Locking rearTWIST Connector
The patented rearTWIST lock turns from the back, enabling easier access to recessed bulkheads and similar setups
Resists Warping
Durable design avoids tilting side-to-side, protecting the contacts from deformation
Prevents Exposed Grounding
Shield and jacket crimp technology prevents exposed grounding problems on cable assemblies
Precision Machined
Precise Swiss-machined brass parts for high durability
Color Coding
Optional accessories include a crimp tool, color-coded boots in 10 standard colors, and dies
