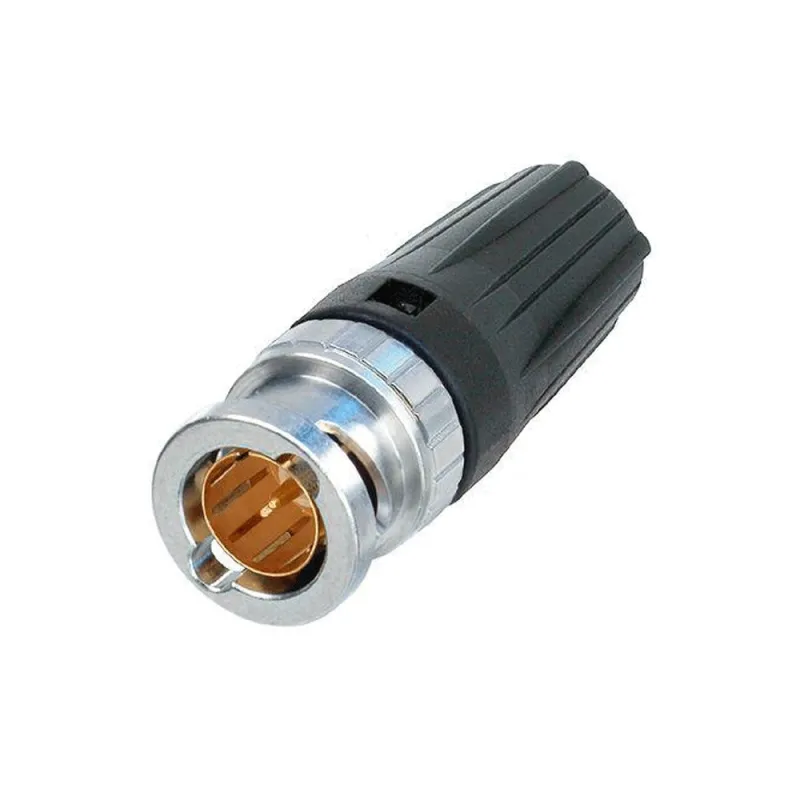

Neutrik NBNC75BFG7 rearTWIST UHD 12G-SDI BNC connector NBNC75BFG7
SKU: 49073
Model: NBNC75BFG7
Ean: 7613187004865
Būklė: Naujas produktas
Pristatymas per 5 - 7 dienas
€ 9.45 su mokesčiais
- 1.6mm Square Pin & 5mm Hex-Shaped Shield
- 75-Ohm Impedance
| Type of Product | Wires, cables for video |
| Type of Product | Cables |
| Connections | BNC to BNC |
The NBNC75BFG7 rearTWIST BNC Cable Connector from Neutrik features a 1.6mm square pin and 5mm hex-shaped shield, compatible with Argosy Image 360, Belden 1855ENH, and many other cables (see more examples below). It has true 75 Ohm impedance for HD applications. The rearTWIST boot ensures easy access even in high-density applications. A snug-fit center pin insert provides tactile feedback. This connector is ideal for recessed bulkheads where access to the "head" of the connector might be an issue. The connector turns from the back rather than the front.
Compatible Cables
Argosy Image 360, Belden 1855ENH, Bryant BD SD01, CAE HD0628LSZH, Canford SDV, Canford SDV-LFH, Canford SDV-X-LFH, Cordial CVI 06-28, Cordial CVI 06-28HD, Cordial CVI 06-28HD-FRNC, Cordial CVI 3-7, Draka 0.6/2.8 AF, Draka 0.6 L/2.8 AF, Extron BNC-5RC, Fuzion SD-1, Klotz V06/28, Klotz VMXx75Y, Kabeltronik HFV 0.6/2.8 AF-FRNC, Kabeltronik MVP 5x 0.6/2.8 AF-FRNC, Nexans HF 75 0.6/2.9 02YS(ST)CH, Percon VK5, Quadtronics CABPGHD70MW-500, Sommer 600-0101M, Sommer 600-0104M, Tesca Supra
