Canare Patch panel BNC 19 1U 4xBNC (F) KAT-6099
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 119,45 su mokesčiais
| Type of Product | Wires, cables for video |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |

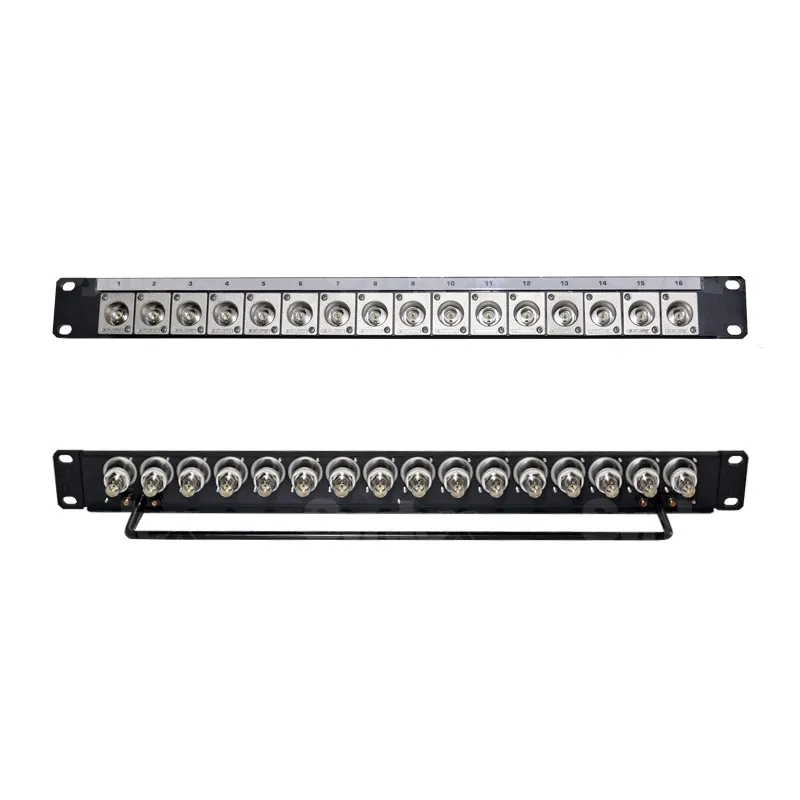

Canare Patch panel BNC 19 1U 4xBNC(F)
Canare Patch panel BNC 19 1U - equipped with double-sided BNC (F) / BNC (F) Canare BCJ-JRUDK adapters and cable holder on the back. Using the supplied metric screws in pre-drilled holes with pre-cut threads, the connectors are easily manipulated without removing the patch panel from the rack!
Panel Features:
- 19 wide
- 1U panel
- 16 holes type D
- Cable bracket on the back
- black color
- White strip with plastic cover for easy labeling
Specifications:
- Attenuation at 12GHz: 15dB
- Insulation resistance at 500V DC in : >1000M
- Rated voltage for 1min: 1500V AC (rms)
- Resistance of central contact: <6m ohm
- Resistance of outer contact: <3m ohm
- Impedance in : 75
- Connector body - material/surface : Brass / Nickel
- Central contact - material/surface : Beryllium Copper / Gold
- Flange - material/surface: Die Cast AL / Nickel
- Dielectric - Material: PTFE polytetrafluoroethylene
