Blackmagic Design Blackmagic Cable for DeckLink 4K/HD Extreme 3

Blackmagic Cable for DeckLink 4K/HD Extreme 3 (BM-CABLE-BDLKHDXT3)

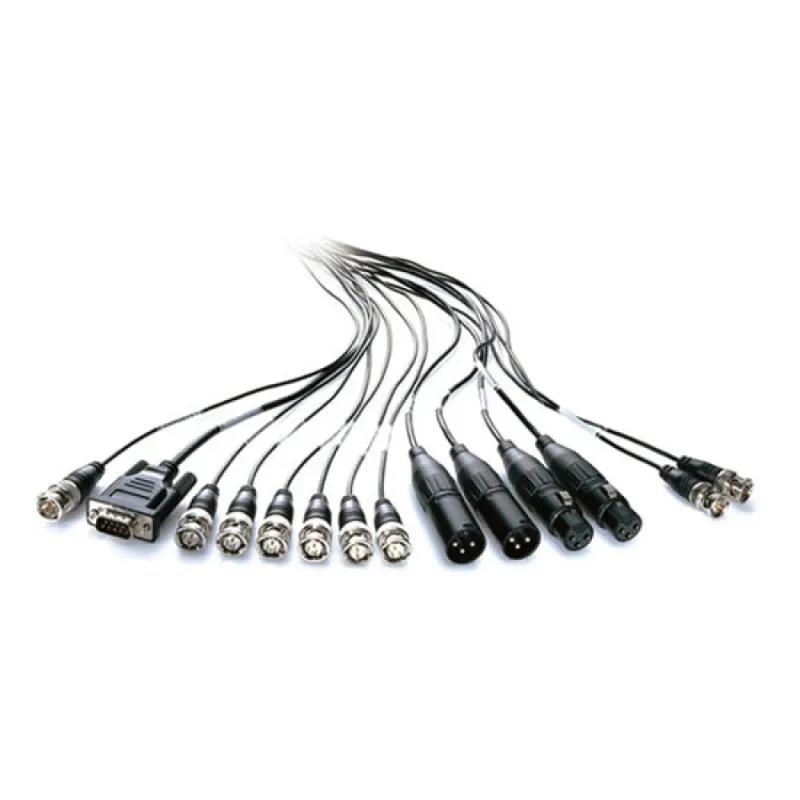

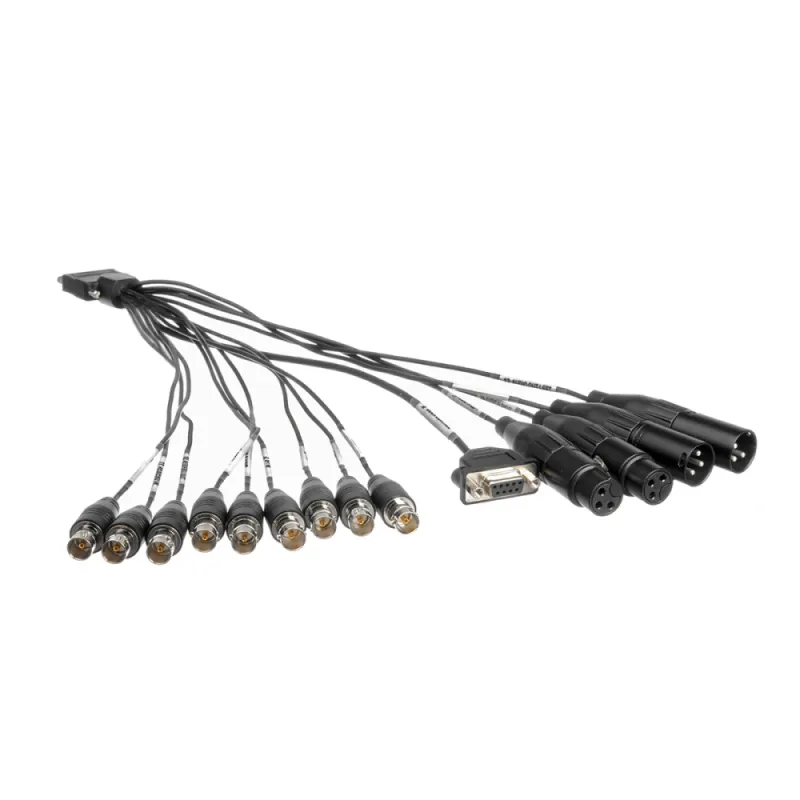

The Decklink HD Extreme Breakout Cable from Blackmagic Design is designed to facilitate the input and output of various signal types with your audio-video system. It features a serial connector on one end and (14) different input and output connectors on the other end.

In the Box
• Blackmagic Cable for DeckLink 4K/HD Extreme 3

Specifications

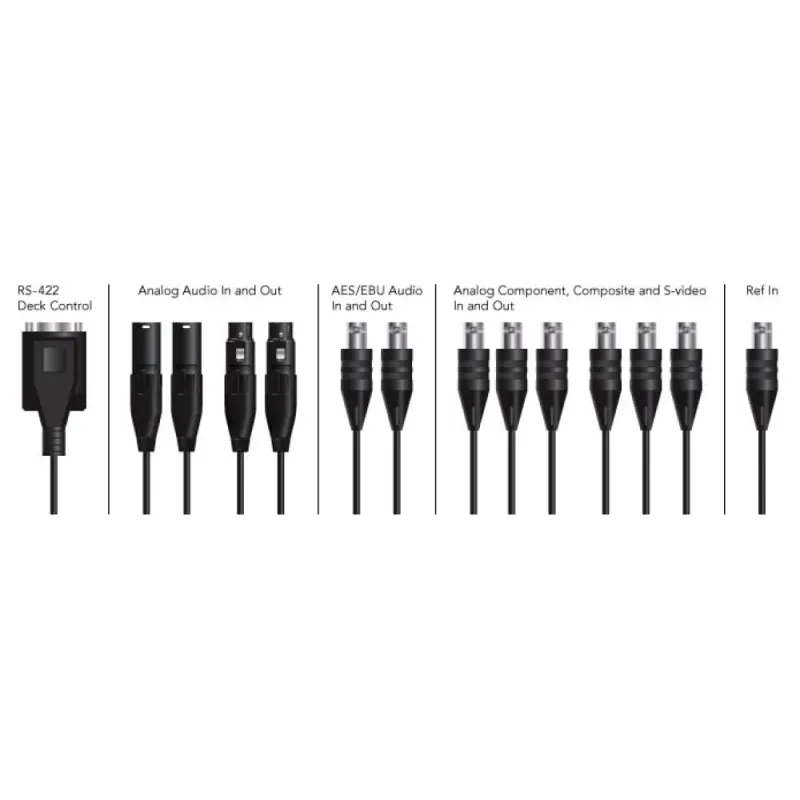

Connector 1

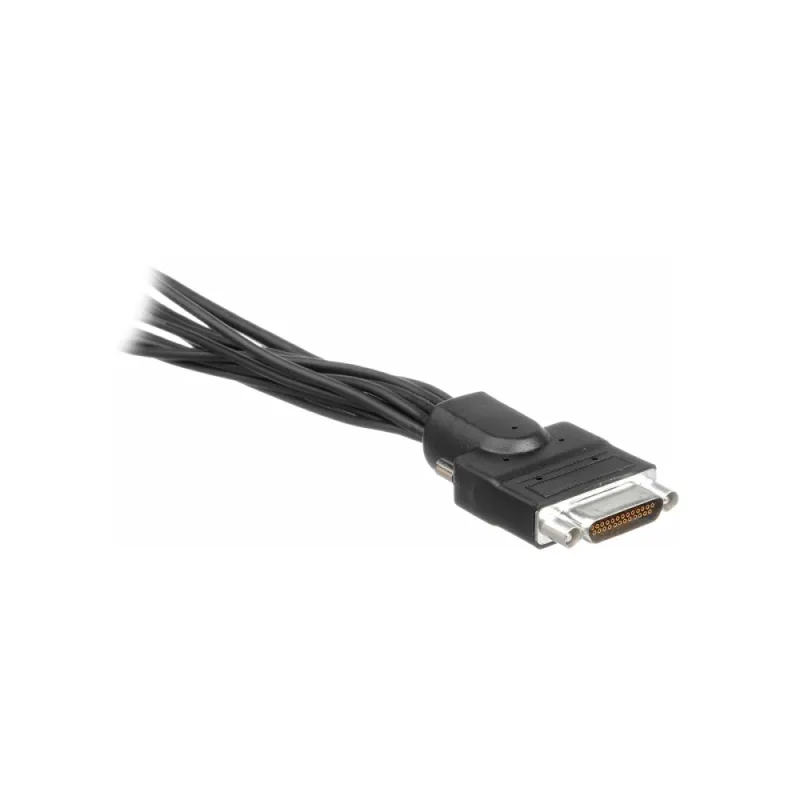

Serial connector

Connector 2

RS-422 Deck control
R-Y input
Y input
B-Y input
Reference input
R-Y output
Y output
B-Y output
AES/EBU output
AES/EBU input
Audio left output
Audio right output
Audio left input
Audio right input
