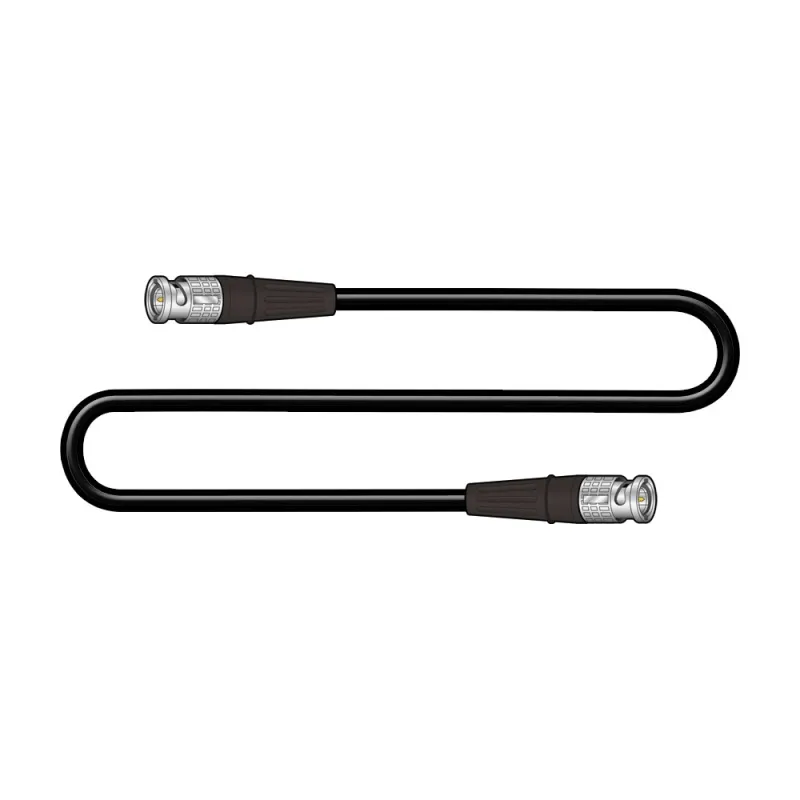

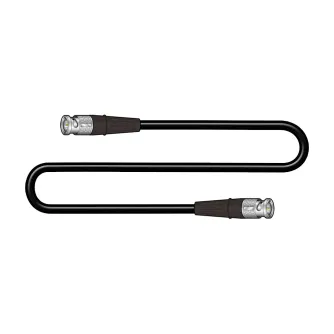

Canare L-5CFW Flexible 3G/HD-SDI cable BNC 30m CV-5W-M/M-BLK-30
SKU: 18996
Model: CV-5W-M/M-BLK-30
Ean: 0000000000000
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 149,45 su mokesčiais
| Type of Product | Wires, cables for video |
| LCD monitors | HDMI adapter |
| Connections | BNC to BNC |
Canare L-5CFW BNC (M-male) / BNC (M-male)
Specifications:
- Standard manufactured lengths: 100/200m
- Sheath diameter (overall diameter) in mm: 7.7
- Cable weight in kg/100m: 8.1
- Central conductor - number and diameter of cores in mm: 1/1.05
- Total diameter of central conductor in mm: 1.05
- Foam dielectric - diameter in mm: 5,00
- Resistance of the central conductor in /100m: 2,3
- Resistance of outer conductor in /100m: 0,5
- Static capacitance in pF/m: 55
- Attenuation in dB/100m: 19.4
Maximum transmission distance depending on video format
| Distance in (m) | 535m | 483m | 384m | 333m | 267m | 103m | 105m | 56m |
| Transmission speed | 143 Mbps | 177 Mbps | 270 Mbps | 360 Mbps | 540 Mb/s | 1.5 Gb/s | 3.0 Gb/s | 12.0 Gb/s |
| Specifications | SMPTE 259M | ITU-R BT.601 | SMPTE 259M | SMPTE 259M | SMPTE 344M | SMPTE ST-292 | SMPTE ST-424 | SMPTE ST 2082-1 |
| Use | NTSC composite | PAL composite | 525/625 (4:3) | 525/625 (16:9) | 525/625 (4:3) p60 SDI | HD-SDI 1080i | HD-SDI 1080p | 4K UHD |
