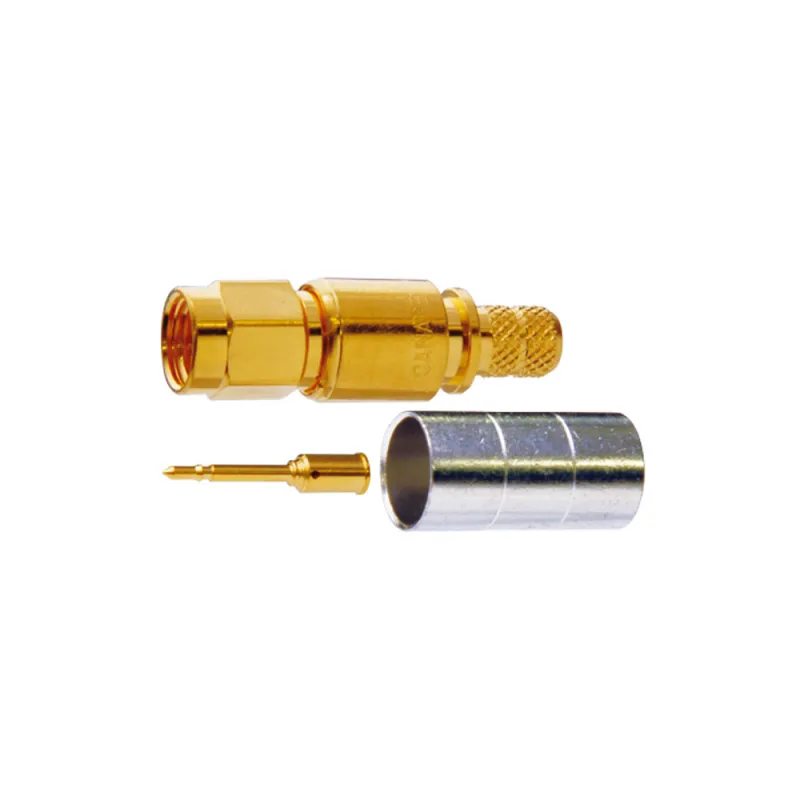

Canare SMAP-C31A SMA 50Ohm Crimp Connector for Telecommunication CNRSMAPC31A
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 14,67 su mokesčiais
| Type of Product | Cables |
| Connections | BNC to BNC |
| Lenght, m | 0.11 |
| Weight, gr | 2.1 |
SMA 50Ohm Crimp Connector
Designed for telecommunication equipment and measuring instruments.
Key Features and Benefits
- VSWR of 1.1 or less up to 2 GHz, 1.2 or less up to 4 GHz.
- Canare crimp design for quick and reliable installation.
Voltage Standing-Wave Ratio (VSWR) and Return Loss
Improper termination of coaxial cables can cause reflected waves, leading to interference and fluctuating voltage levels. The VSWR indicates how well the termination matches the characteristic impedance, while return loss measures the size of the reflected wave compared to the traveling wave.
VSWR to Return Loss Conversion
- VSWR 2: Return Loss 9.54 dB
- VSWR 1.5: Return Loss 13.98 dB
- VSWR 1.2: Return Loss 20.83 dB
- VSWR 1.1: Return Loss 26.44 dB
- VSWR 1.05: Return Loss 32.26 dB
- VSWR 1.02: Return Loss 40.09 dB
- VSWR 1.01: Return Loss 46.06 dB
