Canare RCAP-C3A 75 Ohm RCA Connector, Straight Plug CNRRCAPC3A

Canare RCAP-C3A

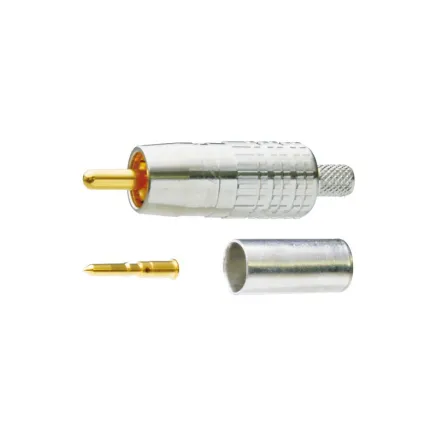

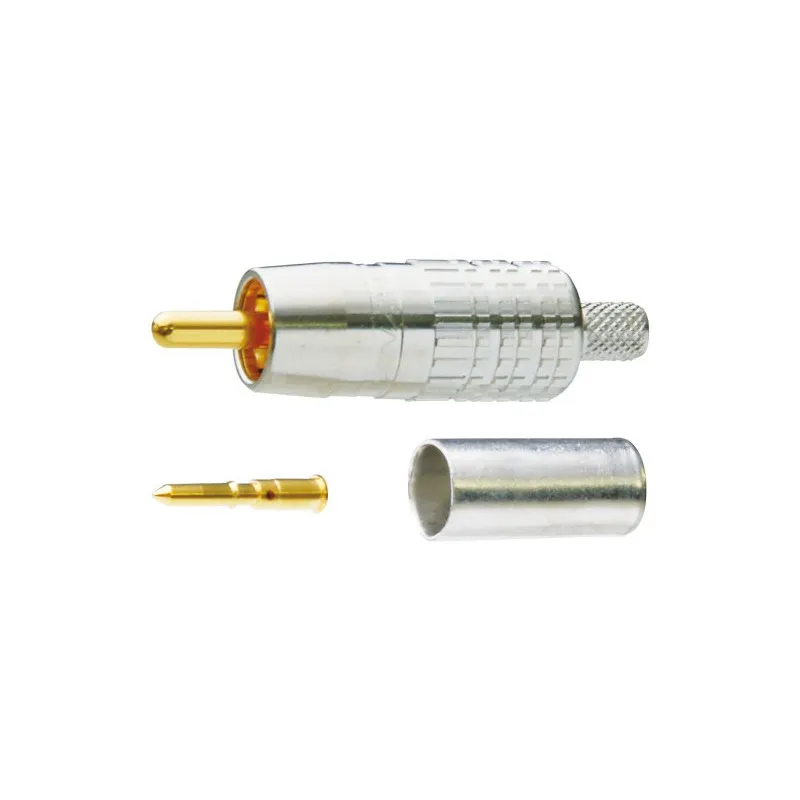

Canare RCAP-C3A is a 75 ohm RCA Connector, Straight Plug.

Applications

• Multimedia Patchcords
• Hi-Res Video Monitors
• SPDIF Digital Audio
• Duplication Decks
• VCR and Camcorders
• Audio Interconnects
• Home Theater Installations

Features

• Standard 75 ohm construction Crimp Pin & Sleeve
• DC to 200MHz > 26dB Return Loss (< 1.1 VSWR)
• Absolutely No Soldering Required
• Assembly Time Reduced by 80%
• Superior cable pull strength
• Internal Pressure Contact Fingers
• Gold plated center shaft
• Operating temperature -20 to +60 degrees Celsius
