Swit PB-R160S+ 160Wh Heavy Duty Digital Battery Pack
Produkto numeris: 39102
| Type of Product | Camera battery (dummy) |
| Type of Product | AC Adapter |
| Type of Product | Cables |
| Type of Product | Batteries |
| Type of Product | Charging accessories and cables |
| Battery type | V-tipa baterijas |
| Battery compatible | Panasonic DMW-DCC12 |
| Battery compatible | Canon LP-E6 |
| Suitable for | NANLITE Forza 60 |
| Connections | D-tap male and DC male |
| Connections | D-tap |
| Lenght, m | 0.64 |

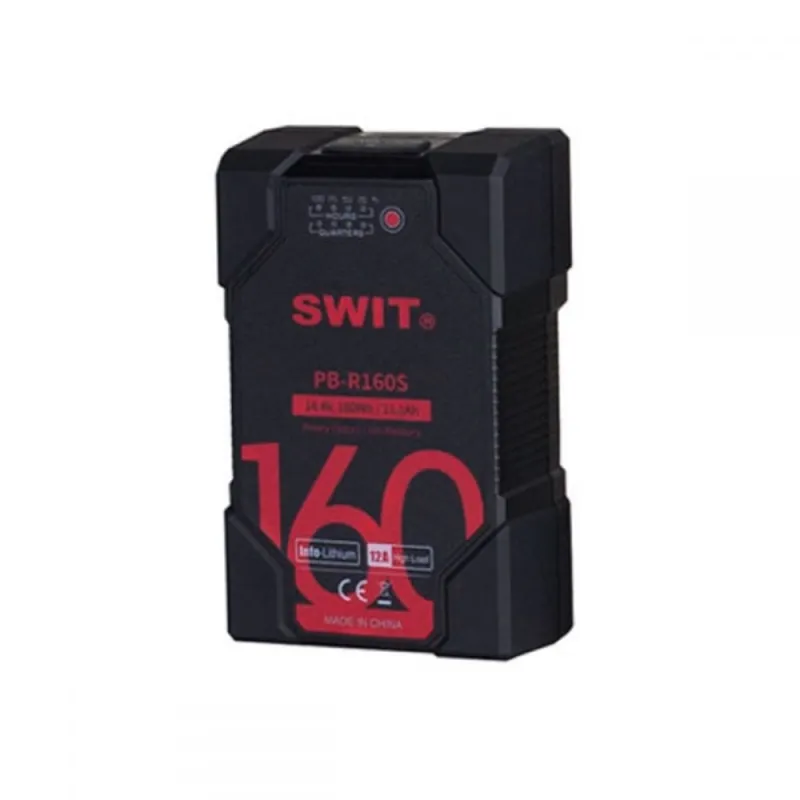

Swit PB-R160S 160Wh Heavy Duty Digital Battery Pack
Heavy Duty Digital Li-ion Battery
V-mount camera battery
PB-R160S is a 160Wh V-mount battery, for Cine and ENG cameras, with latest designed dual housing heavy duty structure, drop-off proof. The battery supports high load, fast charging and digital power info display, which is an ideal power solution for field applications.
Strong Protective Structure
Dual housing + Robber cover
PB-R160S has innovative dual housing structure: the inner cell cage and outer anti-shock housing with rubber covers. The new structure makes the battery quite strong, anti-shock, protects the battery from drop-off accident.
160Wh / 11.1Ah Capacity
The largest capacity for airplane boarding
Consists of 18pcs high class 18650 battery cells, and reaches 160Wh / 11.1Ah high capacity, which is the largest capacity to board to airplane.
Can run approx 6 hours for normal ENG cameras, and approx 2 hours for ARRI ALEXA.
High Load for Cine Cameras
Max 150W / 12A constant output
Normal Li-ion batteries offer 100W/8A output and suitable for most ENG cameras, but the Cine Cameras such as ALEXA require around 85W high draw which is too heavy for the normal Li-ion batteries: the battery life will be reduced if long time full draw powering. Moreover, if there’re monitor, lighting work together, and total power will be above 100W, and the normal batteries cannot draw completely.
Using PB-R160S high-load battery, you can get MAX 150W/12A constant power output, which can drive more high power cameras, lightings and other equipments easily, and won’t reduce battery life during long time high power output.
6A Fast Charging
Using SWIT S-3812S fast charger
PB-R160S supports 6A fast charging by SWIT S-3812S fast charger, to save more than 50% charging time. The 160Wh PB-R160S battery can be charged from 0 to 80% after 1.5 hours, and fully charged within 2.5 hours.

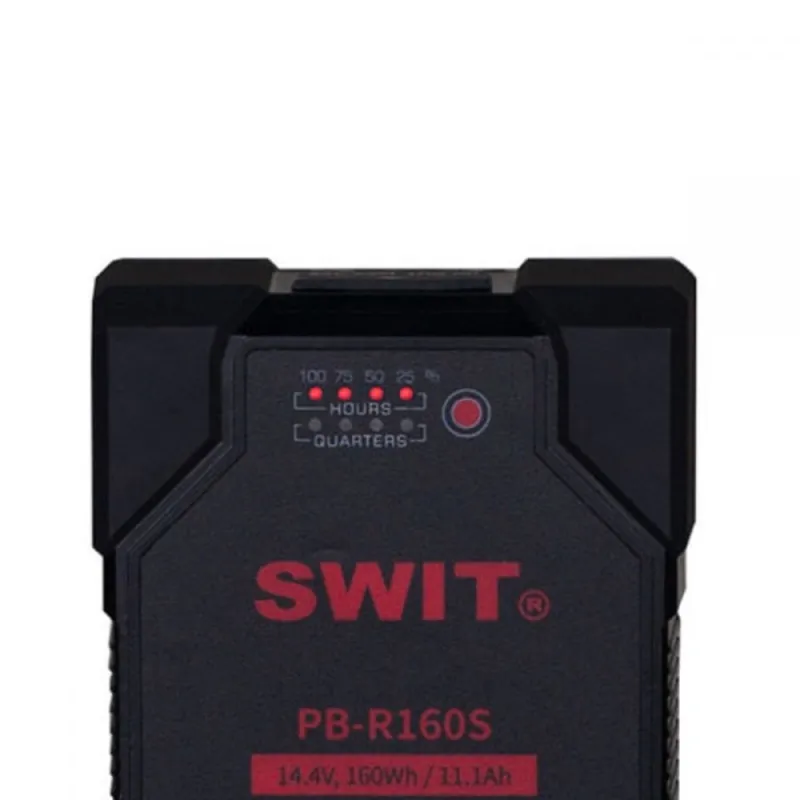

Digital Power Info
8-LED + SONY&RED viewfinder info
PB-R160S has the innovative 8-LED power indicators. When free or charging, the LEDs will indicate current capacity percentage, and when battery is discharging, the LEDs will display the remaining running time at the current discharging power, accurate to 15 minutes. Meanwhile, the battery pack adopts intelligent digital info chip that compatible with both SONY and RED camera info system, and can display remaining minutes on camera viewfinder.

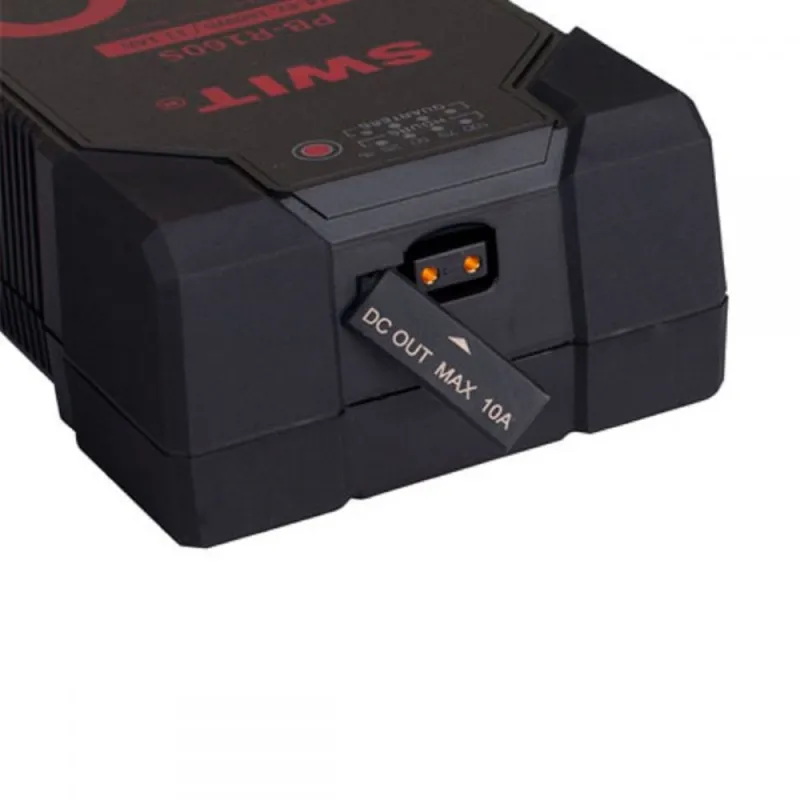

D-tap Socket
A D-tap DC output socket is equipped on the top side of the battery pack, to power the other on-camera equipments together.
The Max output current of D-tap is 10A.
Key Features:
◆ Dual housing strong structure
◆ 14.4V, 160Wh capacity
◆ Max 150W/12A heavy load
◆ 6A fast charging support
◆ 8-LED digital power indicators
◆ SONY/RED viewfinder power info display
◆ D-tap power output socket
◆ V-mount connection
◆ Multiple circuit protections
Specifications:
| Nominal Voltage | 14.4V |
| Capacity | 160Wh/11.1Ah |
| Max output power | 150W |
| Max output current | 12A (D-tap port 10A) |
| Max charging current | 6A fast charging |
| Mount Type | V-mount |
| Operation Temperature | 0-40°C |
| Net weight | Approx 1.08kg |
| Dimensions | 162×101×53mm |
