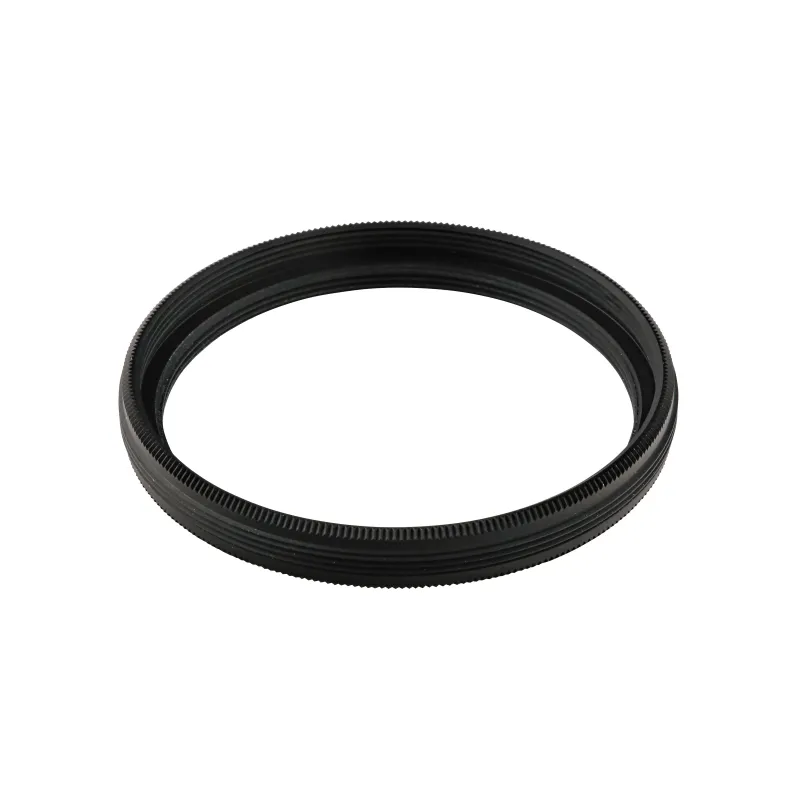

Bresser Vixen M56 filter adapter for M48mm and M52mm filter thread
Produkto numeris: 48358
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
- Vixen M56 Filteradapter für M48mm und M52mm Filtergewinde
- Adapted to M52 thread for photo filters
- Adapted to M48 thread for astronomical nebula filters
- Can be used with the 60mm Wide Photo Adapters
- Female thread M48 x 0.75mm
- Female thread M52 x 0.75mm
- Male thread M56 x 0.75mm
- Dimension: 56 x 7 mm
- Weight: 7g
- High manufacturing quality "Made in Japan
| Type of Product | Telescope acsessories |

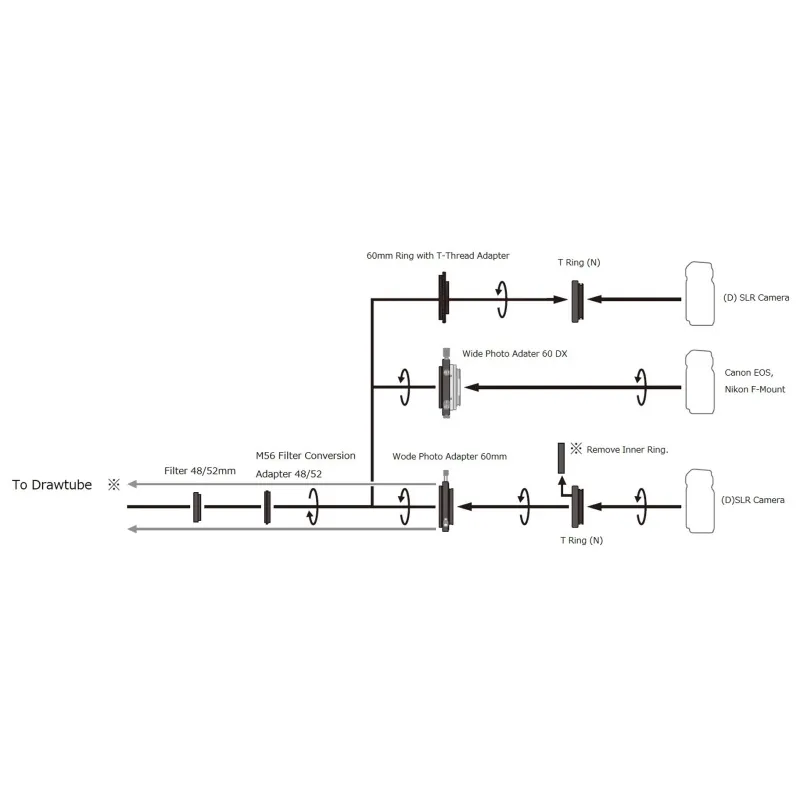

The M56 thread of the filter adapter is screwed into the Wide Photo Adapter AD 60DX, for example, and then offers an adaptation to M52 and M48 filter threads for various nebula filters for photography. The adapter has each one 48 mm and 52 mm thread. The adapter ring can be used on the Wide Photo Adapter 60DX, Wide Photo Adapter 60 mm, 60 mm ring with T-thread adapter or the EA60mm up to 50.8mm.
The adapter ring can be used on the telescopes A81M, A105M II, SD81S, SD115S, AX103S, FL55SS, VC200L, VMC200L, VMC260Lin combination with the optionally available adapters described above.
IMPORTANT NOTE: The Corrector PH, the Extender PH and the Coma Corrector 3 cannot be used with this Adater when used with the R200SS OTA in combination with the EA 60mm to 50.8mm.

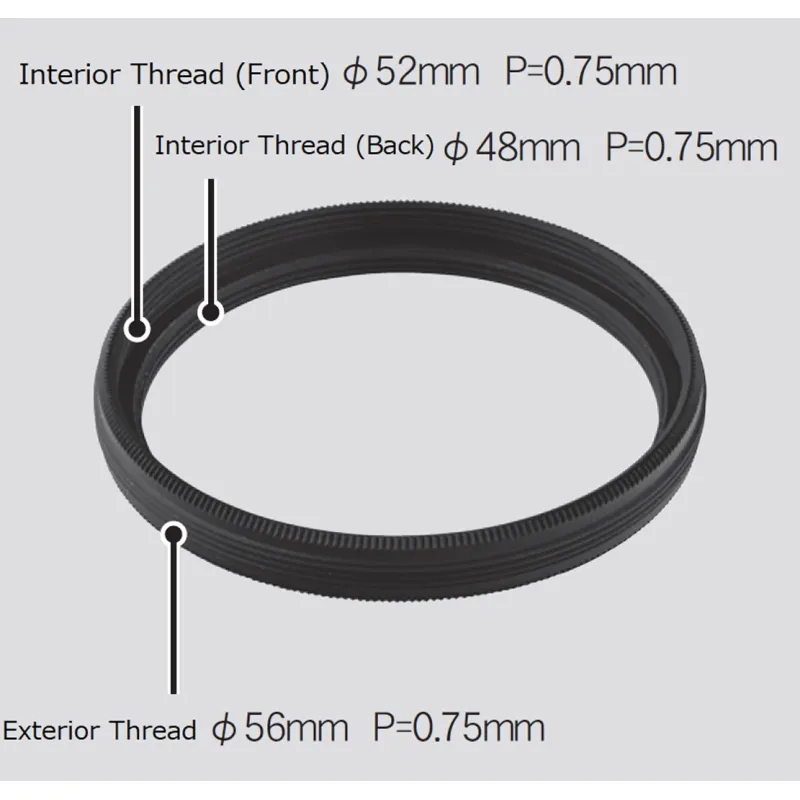

- Internal thread M48 (diameter 48 mm, thread pitch = 0.75 mm)
- Internal thread M52 (diameter 52 mm, thread pitch = 0.75 mm)
- External thread M56 (diameter 56 mm, thread pitch = 0.75 mm)Applicable adapters: Wide Photo AD 60DX, Wide Photo AD 60 mm, 60 mm ring with T-thread AD, EA60 mm to 50.8 mm
- Dimensions: 56 x 7 mm
- Weight: 7g
- Made in Japan
SCOPE OF DELIVERY
- Filter adapter for M48mm and M52mm filter thread
