Bresser Vixen Polar fine adjustment unit DX

Produkto numeris: 48352

Pagal išankstinį užsakymą, pristatymo terminas nežinomas
€ 289,44 su mokesčiais

Bresser

SKU: 48352

Ean: 4955295354924

Būklė: Naujas produktas

Greita užklausa

Type of ProductTelescope acsessories
​ For precise polar alignment of the POLARIE U Star Tracker.

With this fine adjustment unit DX you can make sensitive movements in all directions in order  to achieve an exact polar alignment.

There is a quick-release fastener at the head of the fine-adjustment, which is compatible with the Vixen quick-change angle plate, or the Arca Swiss
system. You can attach or remove your Star Tracker quickly.  An optional dovetail plate mounting block is available for versatile use.
Thanks to the two M8 threaded holes at a distance of 35 mm on the head, the quick release can be exchanged for the separately available dovetail mounting block.
This enables the straightforward mounting of telescopes or heavy telephoto lenses,  like the Vixen FL55SS telescope.
The fine adjustment DX is equipped with a 1/4 "or 3/8" thread and can therefore be used on all common photo tripods.

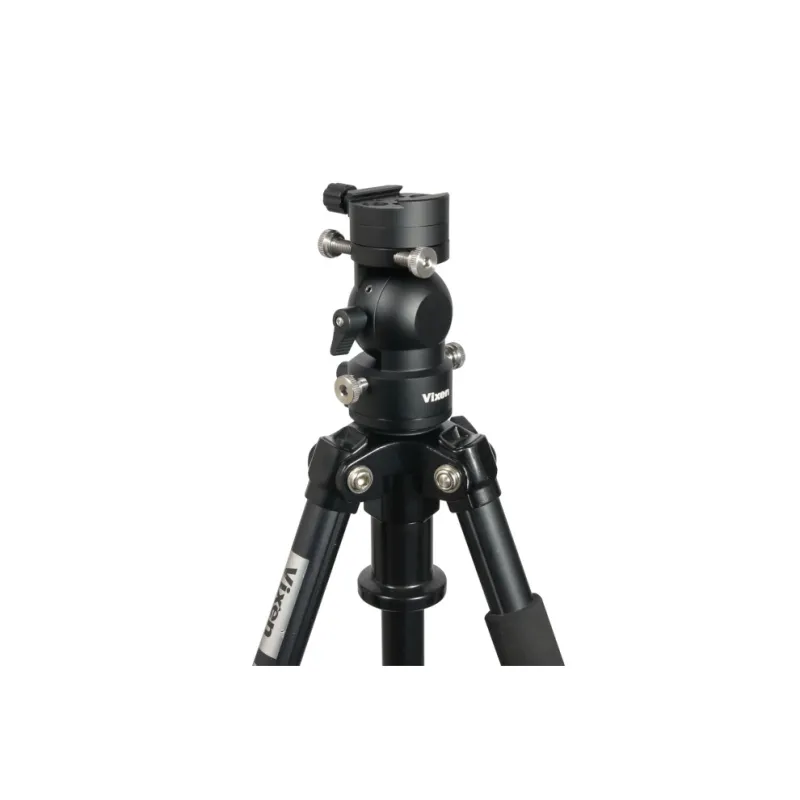

This tripod adapter can be exchanged for a Vixen tripod adapter in order to be able to connect the fine adjustment unit to the heavier duty Vixen telescopic tripods too.
The fine adjustment DX enables a large adjustment range from -30 degrees to 90 degrees and 360 degrees in azimuth.

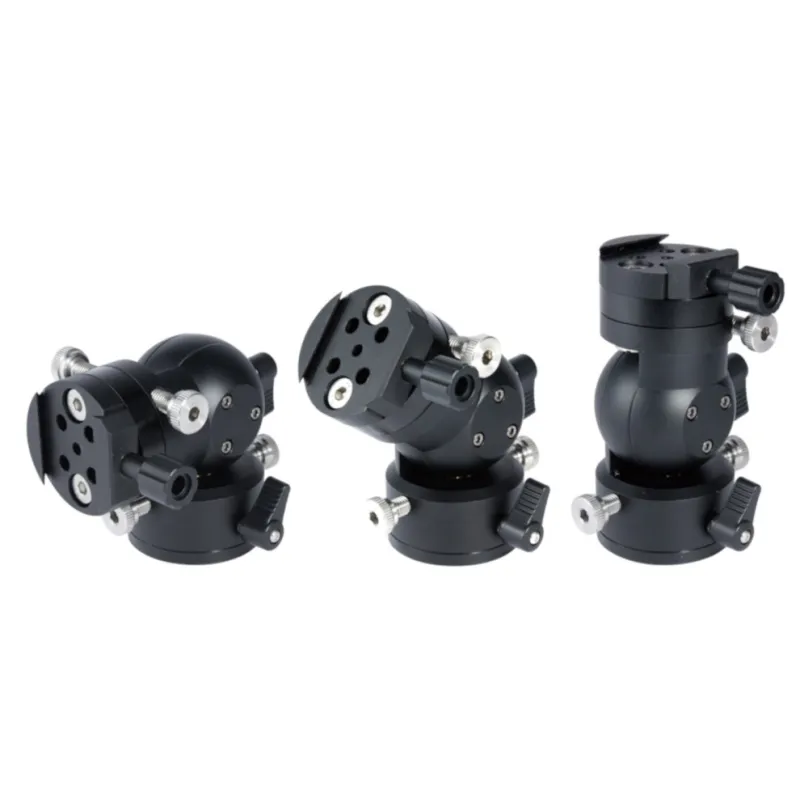

The mounted camera can be tilted freely from 0 degrees (horizontal) to 90 degrees (vertical) by loosening the clamping lever. The fine adjustments can be adjusted in a range of +/- 7.5 degrees.


PROPERTIES

1/4 "or 3/8" thread for photo tripods
-30 degrees to 90 degrees and 360 degrees adjustable in azimuth
Fine adjustments in the range of +/- 7.5 degrees adjustable
2 degrees adjustment per turn of the screw
Arca Swiss System compatible
Adaptable to Vixen telescopic tripods
Assembly of telescopes or heavy telephoto lenses
Over 8 kg payload possible

WHAT'S INCLUDED

Pole fine adjustment unit DX
Quick release clamp

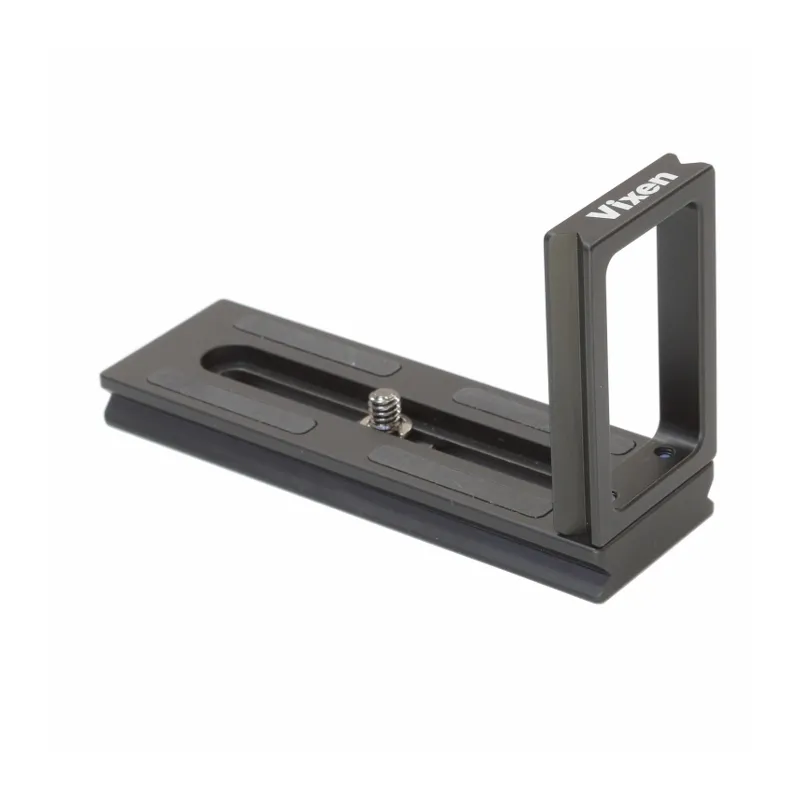

Angle plate L adapter for Vixen telescopic tripods with 45mm connection
