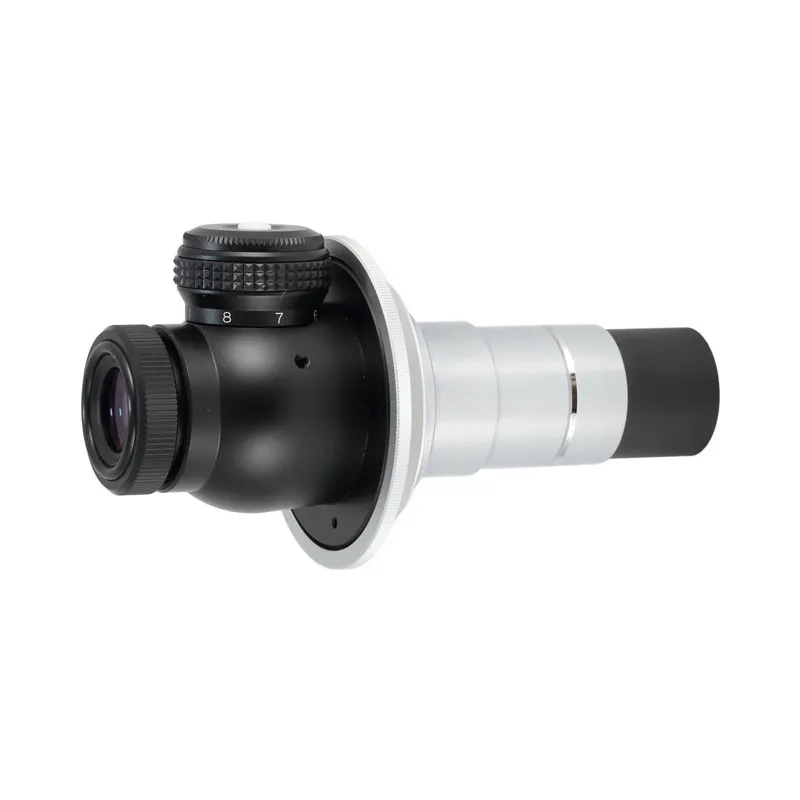

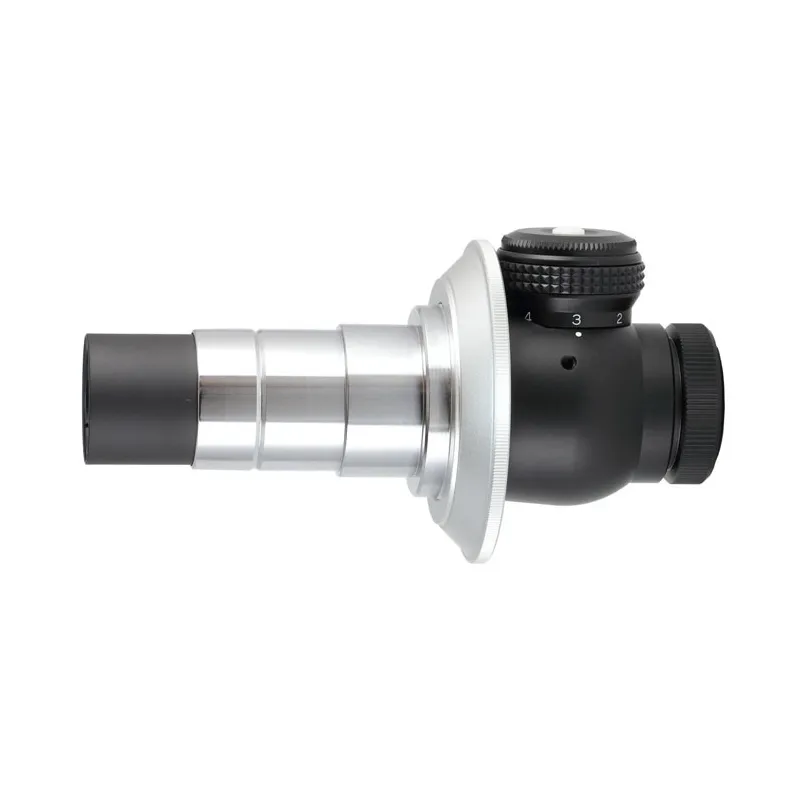

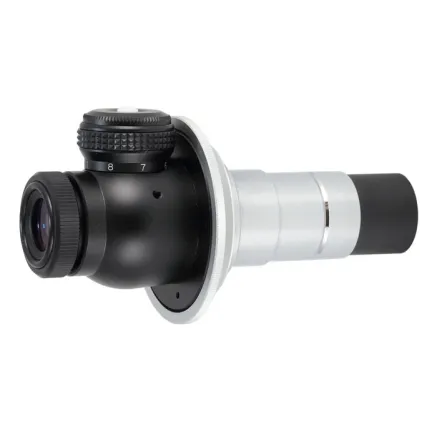

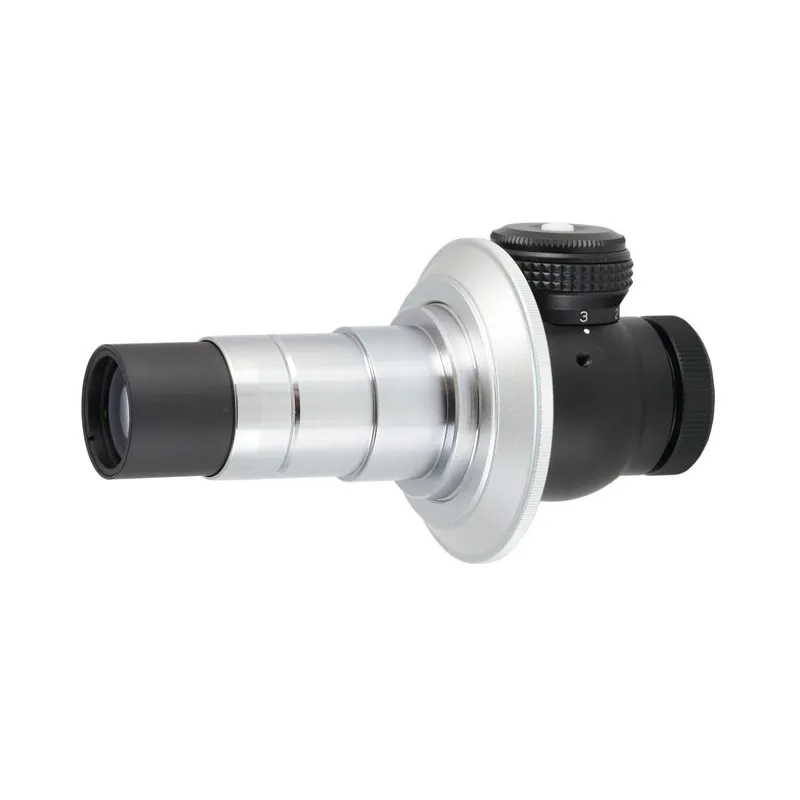

Bresser Vixen POLARIE PF-L II Polar Finder with Light

In the northern hemisphere*, simply position the polar star and two additional stars in the finder’s field of view so that each star is aligned with the corresponding positions in the finder reticle. This enables you to easily configure the equatorial mount with an accuracy of 3 arc minutes or less. The new design of the polar scope eyepiece improves the visibility of stars and makes the scale easier to read. *Three stars for polar orientation in the southern hemisphere are located in Octans.

What is the polar alignment scope?
The polar alignment scope is a small telescope that is installed parallel to the R.A. axis of an equatorial mount such that it matches the R.A. axis to be parallel in the direction of the diurnal motion of stars. The polar alignment scope utilizes 3 stars (Polaris, Delta UMi and 51 Cep) near the north celestial pole. To locate the north celestial pole, simply align the positions on the reticle in the polar alignment scope with the 3 designated stars. In addition, the patterns of the Big Dipper and Cassiopeia are engraved on the polar alignment reticle for use as a guide for the north celestial pole. The polar alignment scope can align the polar axis of the equatorial mount as accurately as 3 arc minutes or less.

The marks and patterns on the built-in reticle provide everything that you need for polar alignment
The necessary information for polar alignment is integrated into the reticle, which is designed for locating the north (or south) celestial pole. It is not necessary to configure an hour angle setting in the dark. This makes polar alignment easier, as you can look through the eyepiece of the polar alignment scope.
A free app is available to download via the following link.
https://www.vixen.co.jp/app/

Dark field illumination (with automatic power off function)
The switch on the polar alignment scope’s brightness adjustment dial illuminates the reticle in red when activated. Compared with bright field illumination, this prevents less bright stars from disappearing from the scope's field of view. The brightness can be adjusted in 8 levels by turning the brightness adjustment dial. The red light dims gradually after a certain period of time and turns off automatically.

Easy to set up

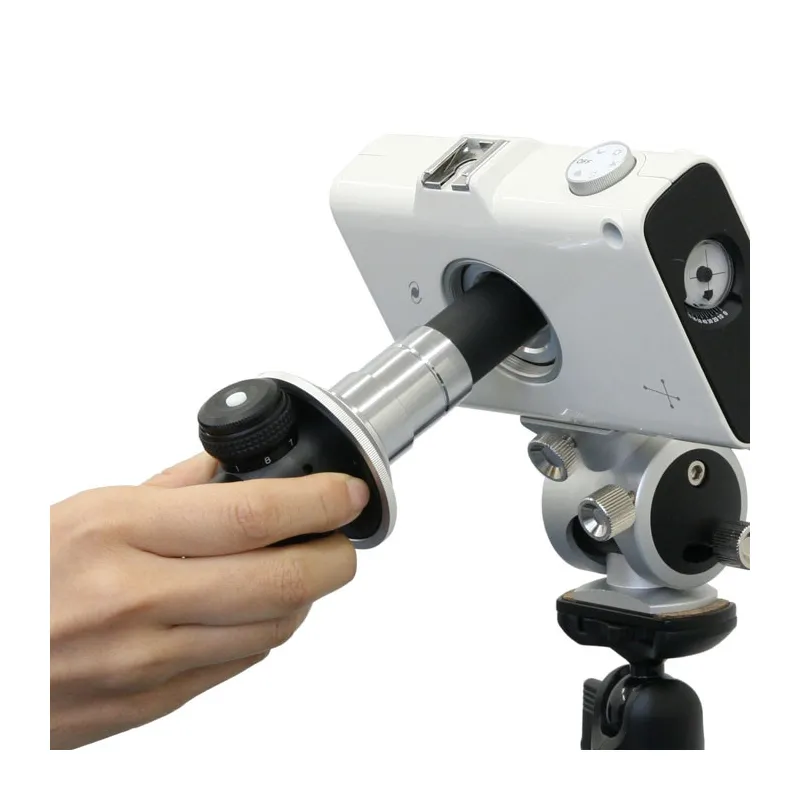

Remove the mounting block on the front side and the cap on the rear side of the POLARIE. Then insert the POLARIE PF-L finder scope into the POLARIE to complete the installation. The telescope is ready for use in no time!

FEATURES

• Easy alignment via reference stars
• Dimmable red light
• No date or time settings required
• Light switches off automatically
• Free app from https://www.vixen.co.jp/app/

DELIVERY CONTENT

• 1x PF-L II polar finder
• 1x CR2032 battery
