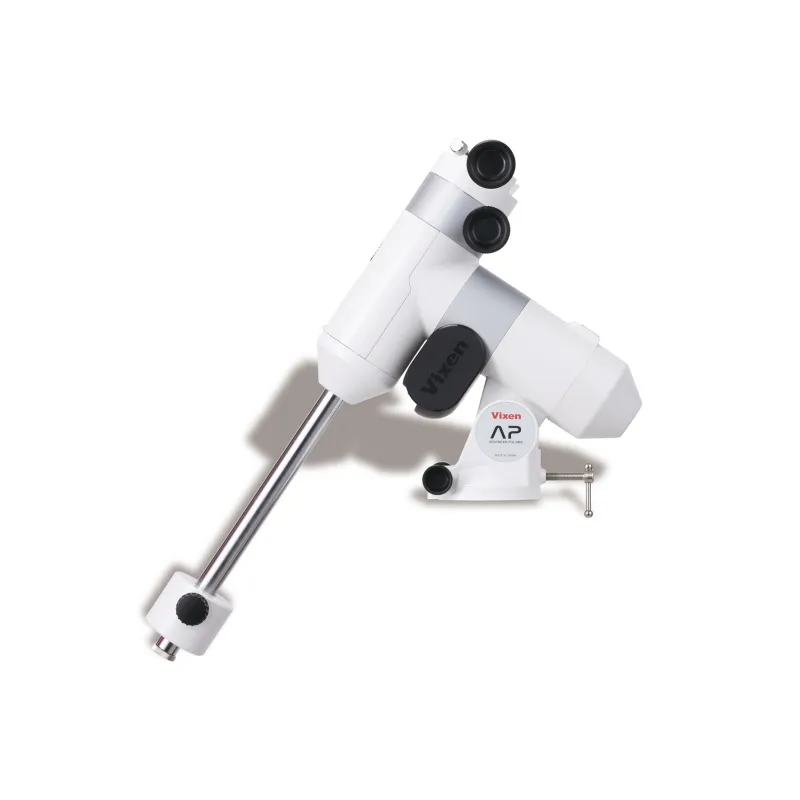

Bresser Vixen AP-SM Mount with RA Motor Module and Star Book One Controller
Produkto numeris: 48255
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
- Collapsible travel mount with manual fine adjustment

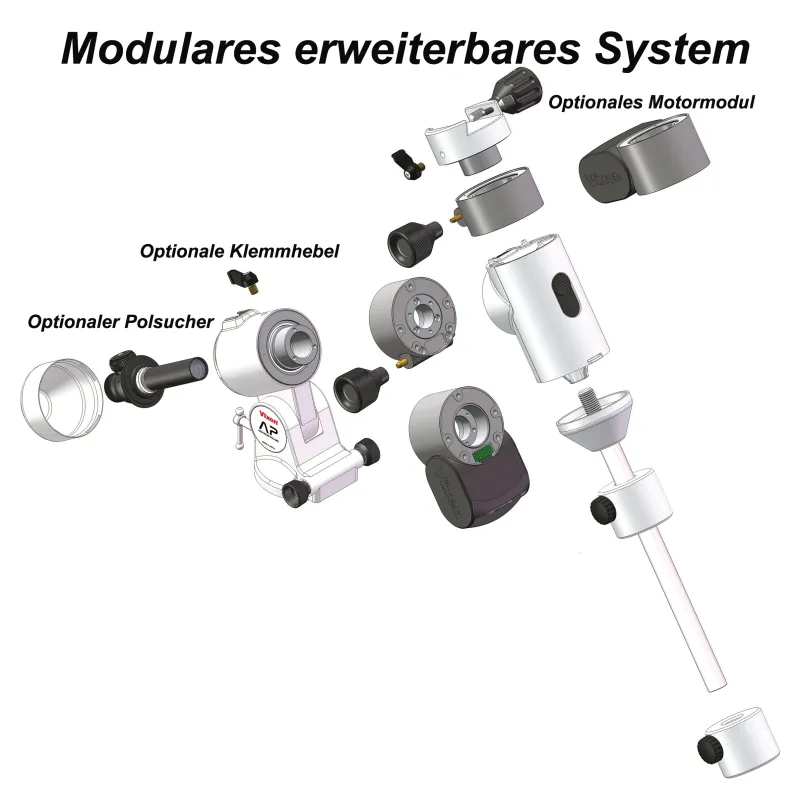

- The modular system can be dismantled in a few simple steps
- Ideal for air travel
- Built-in slip clutch mechanism
- Load capacity of up to 6 kg
- Lightweight and portable
- STARBOOK ONE controller
- Automatic tracking in right ascension
- Can be upgraded with a DC motor module
- Dimensions: 263 x 302 x 96 mm
| Type of Product | Telescope acsessories |
The AP mount provides a secure, stable support for your telescope. Thanks to the slip clutch mechanism , the mount can be adjusted quicky to the target object.
There is a wide range of optional accessories. The ADVANCED POLARIS mount is ideal for both beginners and advanced observers who require a lightweight travel mount.
STYLISH DESIGN
The AP mount features an ultra-smooth finish without any projecting parts. Simply place your telescope on the mount and move it to the desired celestial object without having to loosen any clamps!
QUICK POLAR ALIGNMENT

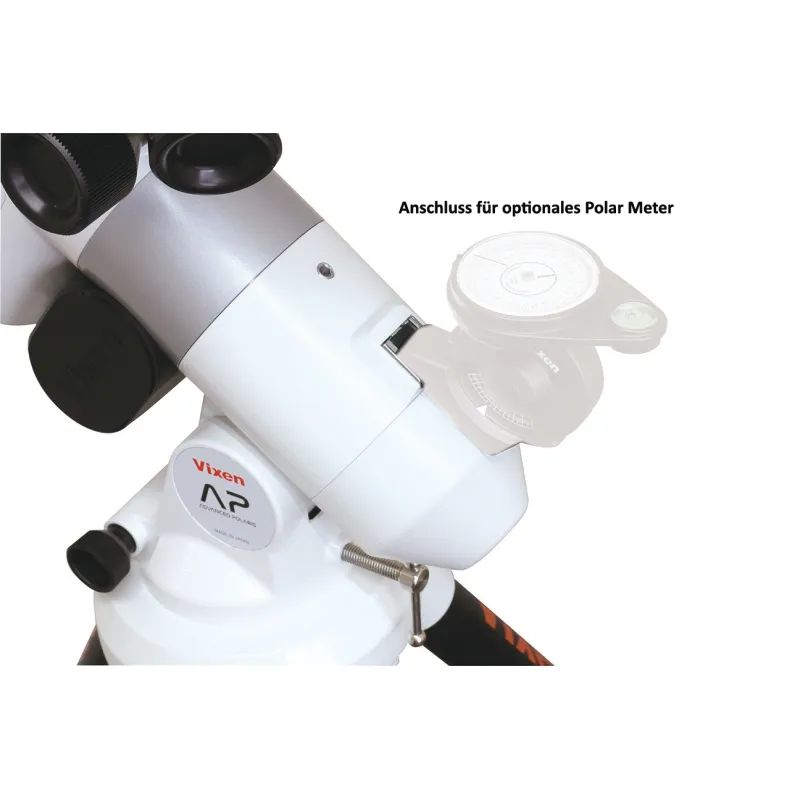

The slip clutches allow you to adjust the telescope to your target object easily – no more searching for adjustment clamps in the dark! An optional polar meter is available, which enables you to locate the celestial pole when it is hidden by trees or buildings.
OPTIONAL POLAR FINDER SCOPE
The innovative polar finder scope provides a new way to polar align your telescope. Simply align the stars in the crosshair reticle with the same stars in the night sky. Polar alignment is achieved using 3 reference stars. The polar finder is illuminated to facilitate orientation and switches off automatically after 3 minutes to save battery power.
POWER SUPPLY
The RA and DEC motor modules are powered by four AA alkaline, Ni-MH or Ni-CD batteries. The RA motor module has a USB Micro-B port for an external power supply. A USB power pack or car charging cable can be used for longer observation sessions.

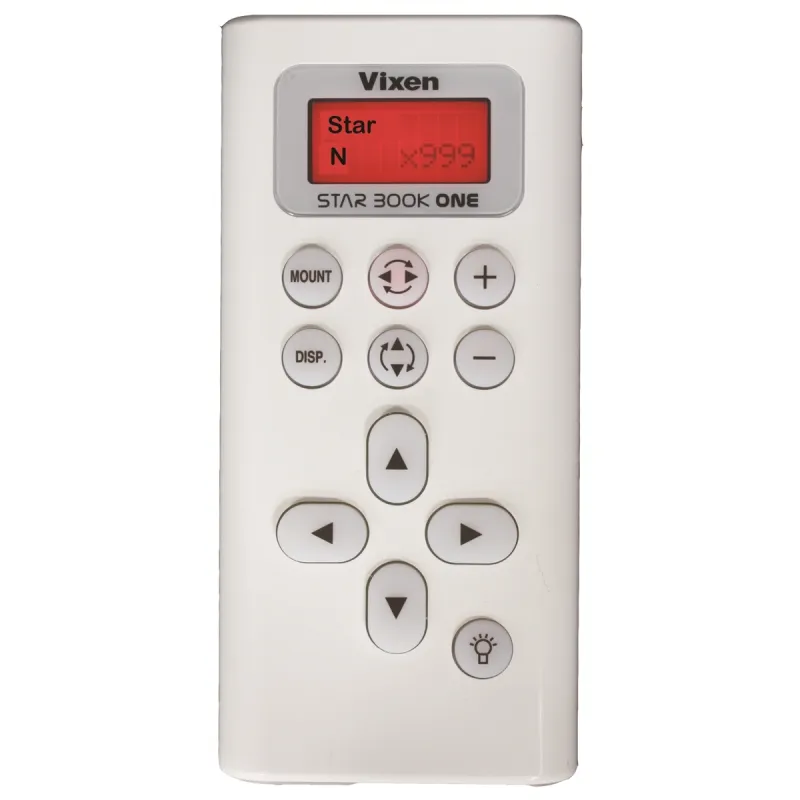

STAR BOOK ONE CONTROLLER
The STAR BOOK ONE is a multifunctional and intuitive controller that tracks in the RA and DC axis with a range of different speeds. The tracking options are designed for time-lapse cameras at a wide range of speeds, including sidereal, lunar and solar rates. The controller also offers many useful functions such as backlash compensation, autoguider port, PEC and a built-in red LED light.
FEATURES
- R.A. Worm wheels: 58.4 mm Ø gear wheel with 140 teeth
- DEC. Worm wheels: 58.4 mm Ø gear wheel with 140 teeth
- Azimuthal adjustment: Twin adjusting screws
- Altitude adjustment: Twin adjusting screws
- Number of ball bearings: 7
- Polar finder: Optional
- Motor: RA stepper motor
- Tracking: STAR BOOK ONE (max. 60x Slewing)
- Power supply: USB Micro-B
- Counterweight bar: 20 mm

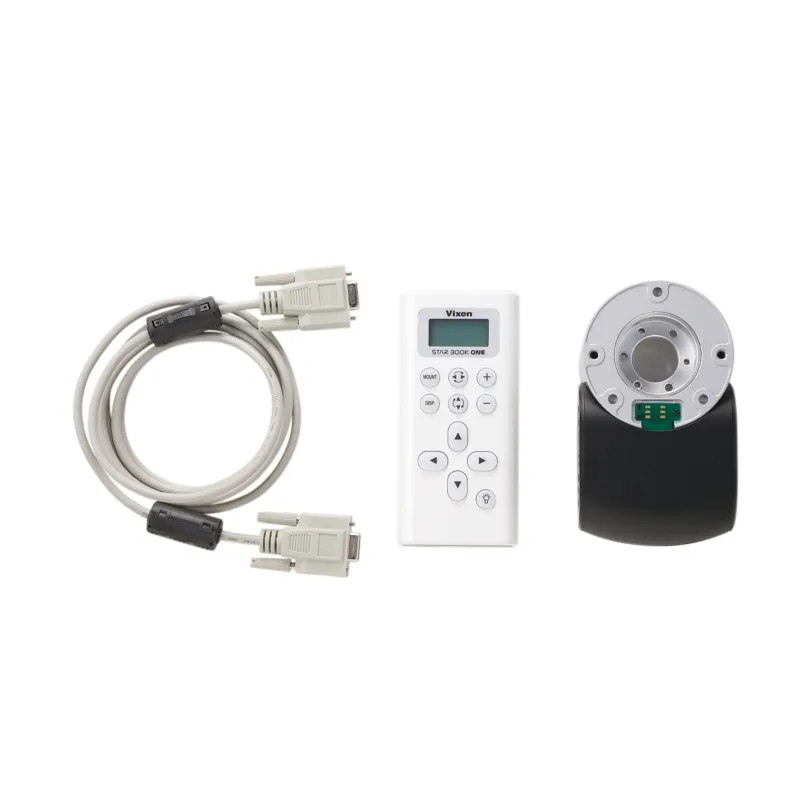

WHAT’S INCLUDED
- AP-SM mount
- 1.0 kg counterweight
- STARBOOK ONE controller
