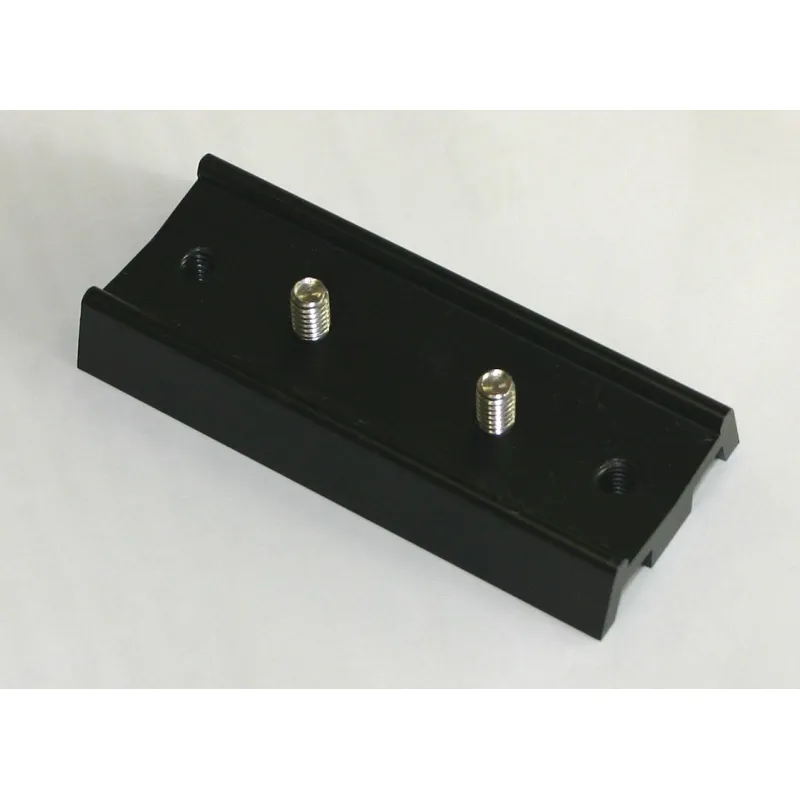

Bresser LUNT LS100PS Dovetail Bar 100mm (GP level)
Produkto numeris: 46897
Pagal išankstinį užsakymą, pristatymo terminas nežinomas
- 100mm long prism rail according to the VIXEN GP level
- For solar telescopes from Lunt Solar Systems
- Suitable for common astronomical mounts
| Type of Product | Telescope acsessories |
The width of the dovetail is conform to the GP-level standard. Therefore it could be used at the BRESSER EXOS 1+2 mounts for example, but also at many other mounts. The telescope connecting screws are 1/4-20 inch size and they do not look out of the rail, which makes this rail a perfect match for many astronomical mounts. The distance between the screws is matched for the Lunt Solar Systems telescopes LS50THa, LS60THa, LS60MT, and LS80THa.
FEATURES
- Length: 100mm
- Width: 44mm
- Distance between screws: 35mm
- Screws thread: 1/4"-20
- 1 x 100mm dovetail plate
- 2 x 1/4"-20 screws
