Bresser EXPLORE SCIENTIFIC ED APO 102mm f/7 FCD-100 CF HEX

Highly corrected 102mm air-spaced triplet apochromat (with three lenses) and carbon fiber tube and a 2.5" high-precision HEXAFOC focuser.

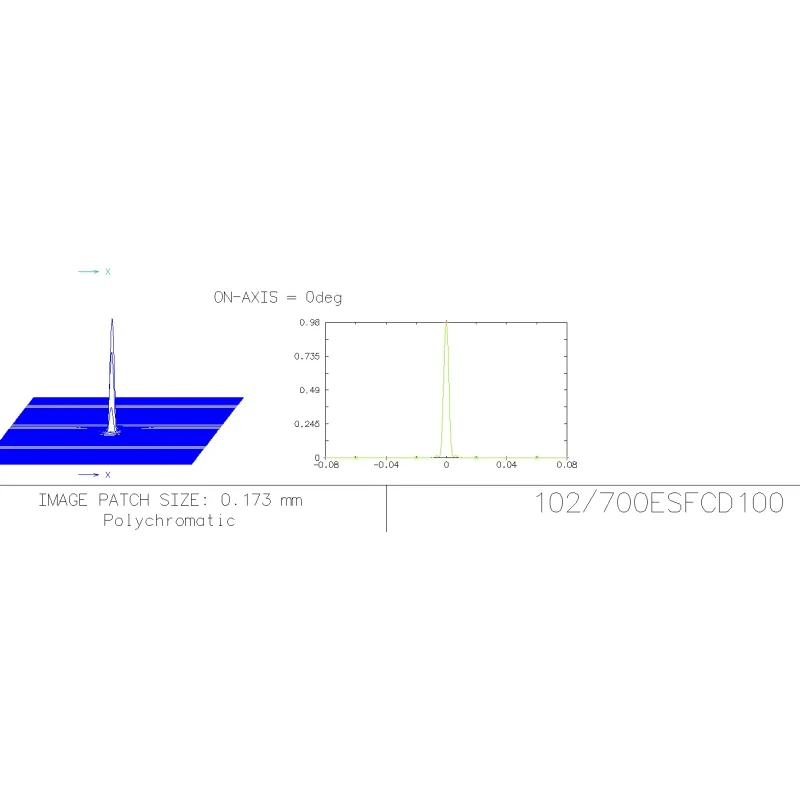

Apochromats are the ultimate choice in small to medium sized telescopes:  the combination of compactness, transportability, very high image contrast and sharpness together with the possibility to make excellent astrophotos cannot be bested. The advances in glass manufacturing during the last few years have made true apochromats available to more astronomy enthusiasts than ever before. The new  Explore Scientific FCD-100 CF Hex  represents another major improvement in this field -  the overall correction (color and spherical) is setting new standards in this price class.  The optical design shows a polystrehl value of 0,97 indicating a level of correction that is absolutely top of the line.

This excellent apochromat is a very versatile telescope:  the fast f-ratio makes short exposure times possible. The  high contrast and sharpness  of the image provide breathtaking views of large objects like the North america nebula or the Andromeda galaxy as well as tack sharp planetary images. The telescope is lightweight and compact - the dew shield slides down the tube to minimize size for transportation. Revolutionary glass and precision manufacturing created a telescope that offers observing joy on the highest level. This does not only qualify this telescope as the ideal travel scope, it is also the perfect choice for fast observations and  for astrophotography.  The excellent  2,5" HEXAFOC focuser with 10:1 reduction  is perfect for this - the  large inner diameter of 65mm prevents vignetting  by the focuser when the telescope is used for astrophotography with large sensors.

These very popular EXPLORE SCIENTIFIC Triplet ED APO Refractors we do offer in 3 different product lines:

Essential Line:
HOYA  FCD-1  Glass lens, AL-Tube, 2.0" Rack&Pinion Focusser with 1:10, 2.0" Star Diagonal 99% Reflectivity (see Part No. 0112084(AL), 0112106(AL), 0112132(AL)), 0112155(CF + 3"FT))

Professional Line:
HOYA  FCD-100  Glas lens, AL/CF-Tube, 2.5" HEXAFOC Focusser with 1:10, 2.0" Star Diagonal 99% Reflectivity (see Part No. 0112086(AL), 0112108(AL), 0112109(CF), 0112134(AL), 0112135(CF))

High-End Line:
OHARA  FPL-53  Glass lens, Carbon(CF) Tube, 3.0" Feather-Touch Focusser with 1:10, 2.0" Star Diagonal 99% Reflectivity (see Part No. 0112165(CF))


SPECIFICATIONS

• Aperture: 102mm
• Focal Length: 714mm
• Focal ratio: f/7.0
• Design: Apochromat with three lenses, two air spaces and FCD-100 glass
• Weigth: 3,3kg , lightweight due to carbon fiber tube
• Backfocus: 150mm above 2" adaptor
• Design: Apochromat with three lenses, two air spaces and FCD-100 glass

SCOPE OF DELIVERY

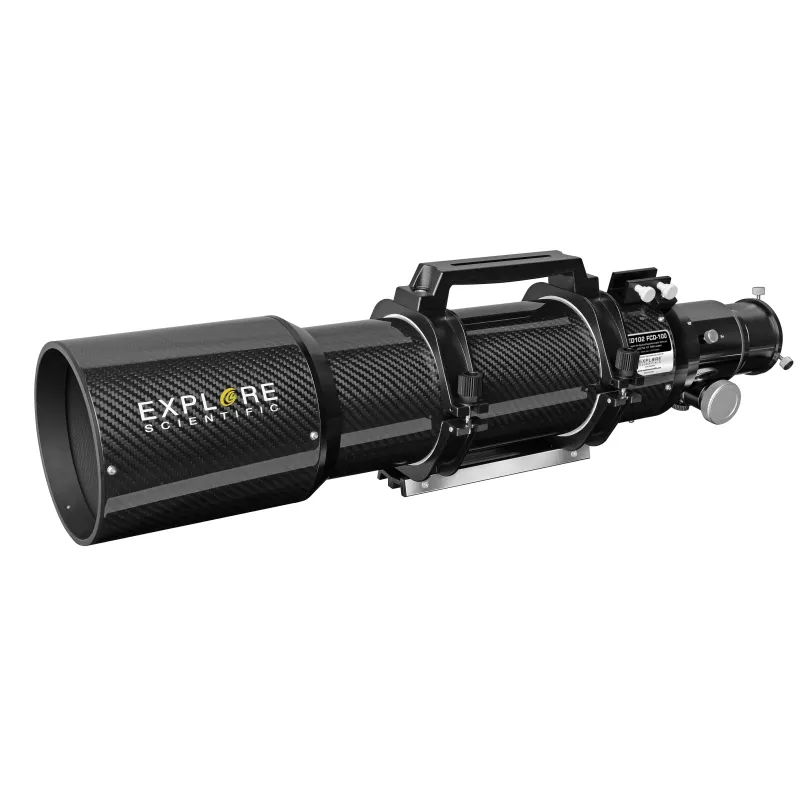

• Optical tube with retractable dew-shield
• 2.5" HEX focuser with 1:10 gear reduction
• 2" Star Diagonal 99% reflectivity
• Tube rings with dovetail plate and handle
• Extension tubes for focusser (2pcs)
• Dust caps for front-lens and focuser
• Universal finder slot
