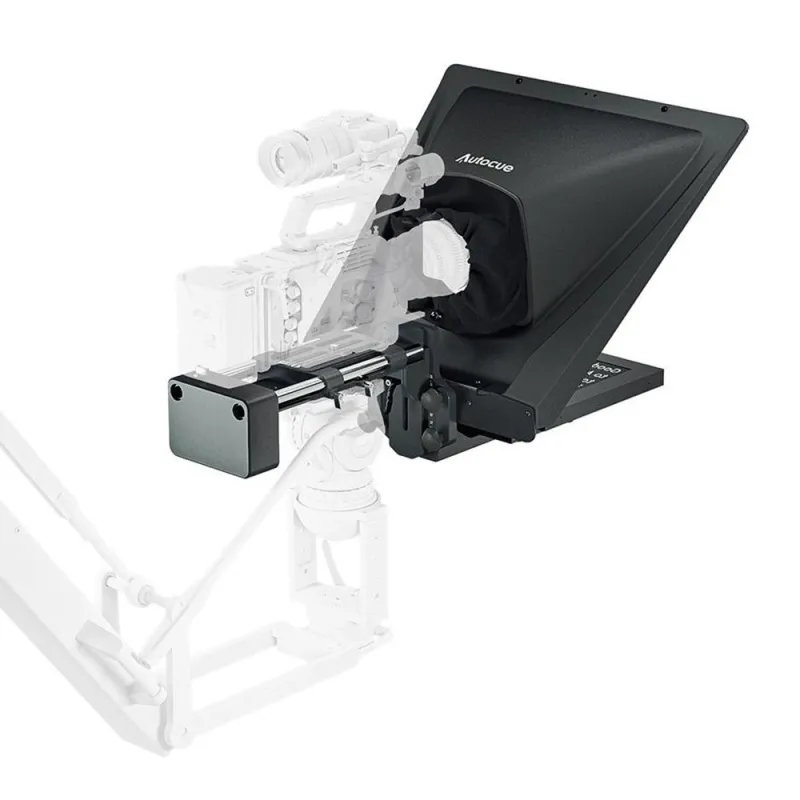

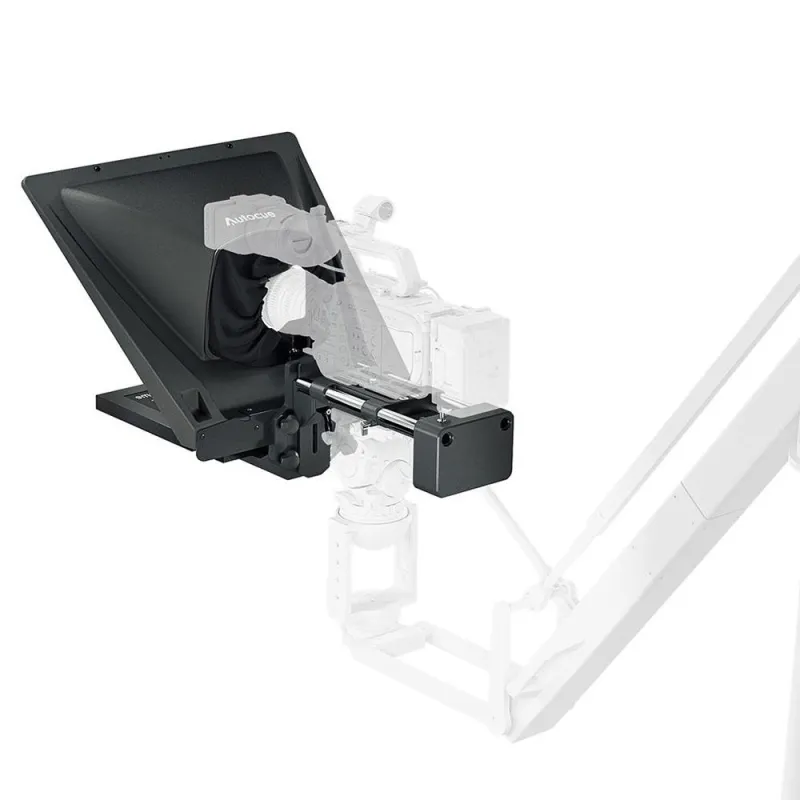

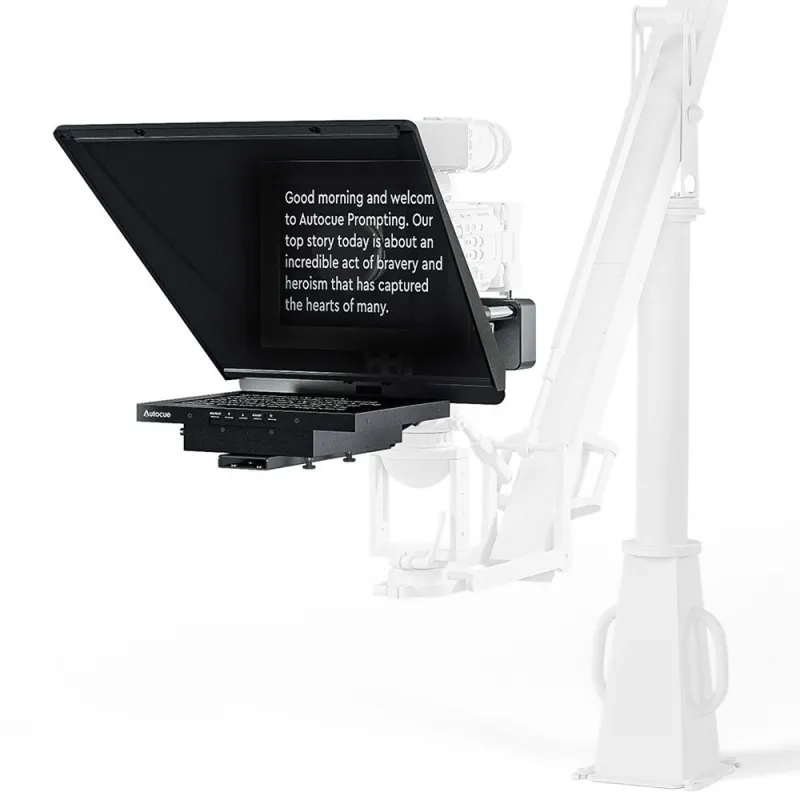

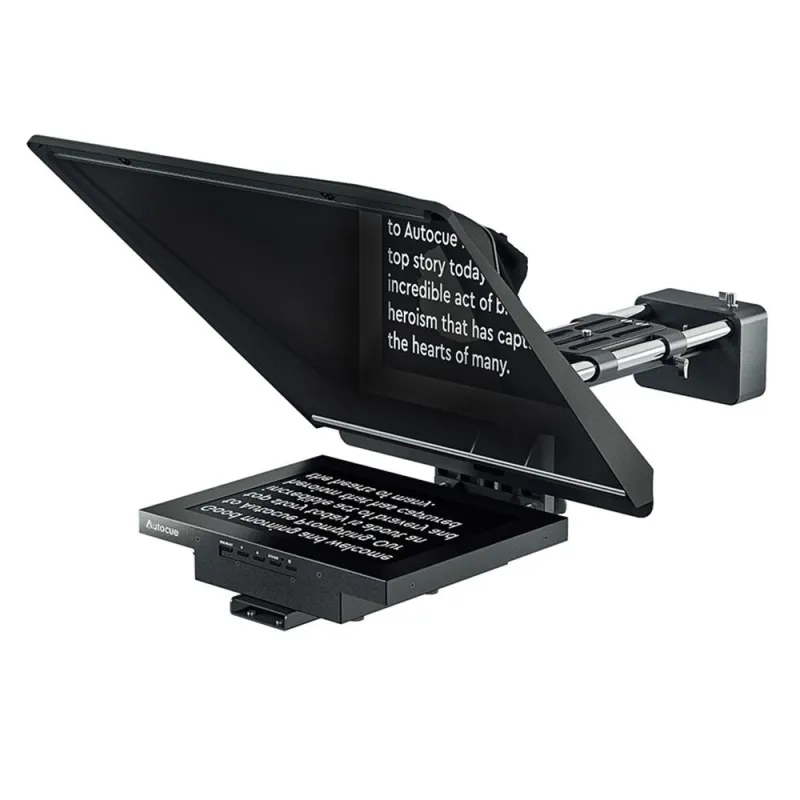

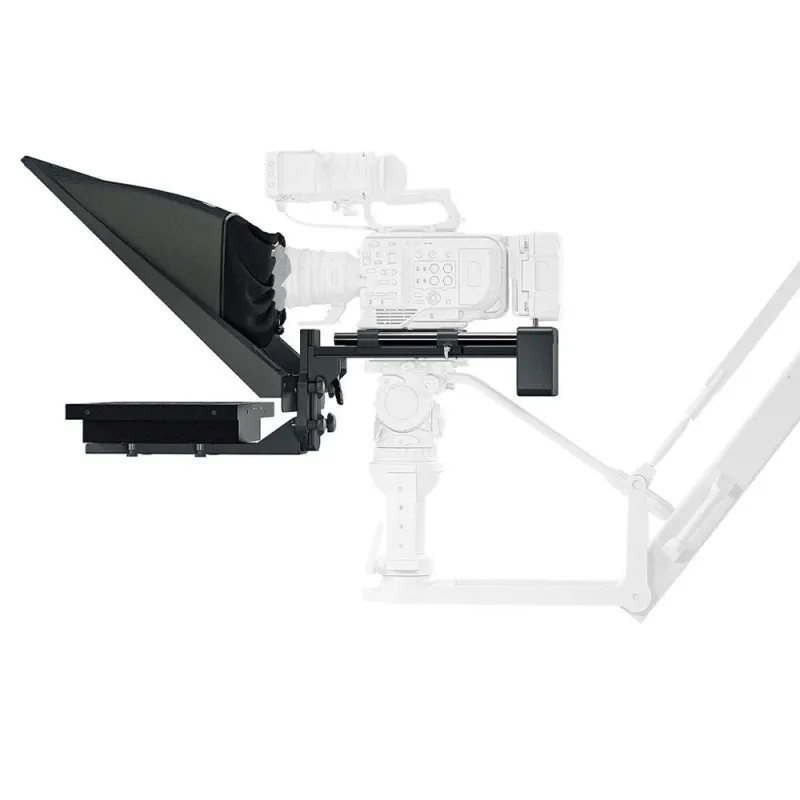

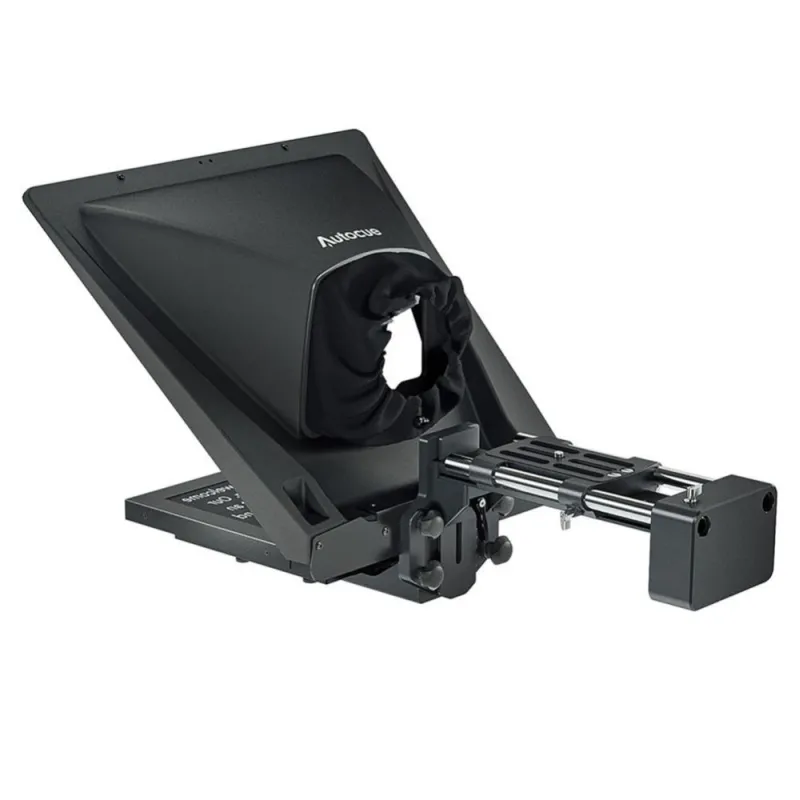

Autocue 12 Pioneer Jib Teleprompter (P7008-0904)

• Designed for small payload supports
• Medium hood and ultra-lightweight small monitor
• Adjustable mounting kit makes it simple to position the lens
• High brightness monitor can be used in any indoor or outdoor light

When your camera support is demanding, Autocue has options. The 12” Pioneer Jib Teleprompter is the smallest Autocue teleprompter package with a composite hood. This keeps it lightweight for low-capacity support and stable during the higher speed moves you might want from a jib.

Pioneer Series packages include Autocue’s highest spec monitors with a brightness that will out-perform any lighting situation to keep your presenter on-script. Like all Autocue monitors they have a strong but lightweight metal housing ready to take years of hard work. Autocue selected a 12” monitor with aluminium casing for this system to keep the weight down and you can expect around a 4.5m/15’ max reading range. HD-SDI, CVBS, VGA, and HDMI inputs make sure the prompter will integrate whether you have a single PC or a full broadcast facility.

The Pioneer Series Jib Teleprompter has Autocue’s medium hood which allows for all but the widest angle lenses and weighs less than its larger sibling. The hood is made of a lightweight composite and holds Autocue 70:30 beamsplitter glass that clearly displays the text to the presenter while keeping it invisible to the camera.

Delivery Content
• Monitor
• PSU
• Mounting rail with bracket set
• Camera carriage
• Monitor spine
• Medium hood
• Beamsplitter glass
• 19mm rod set
• 5kg counterweight
• HDMI cable, 10m
• UK/EU or US IEC power cable

Specifications

Display Size

12

Aspect Ratio

4:3

Brightness

1500Nits

Contrast

1000:1

Resolution

1024x768

Connectivity

3G/HD/SD-SDI (with looped output), CVBS (with looped output), HDMI, VGA

Image Flip

Horizontal and vertical

Input Voltage

12V DC

Aux. Output

12V DC, 3A max.

Power Consumption

25W max.

Power Supply

110-240V AC 50/60Hz input, 12V DC, 5A max. output

Hood

Medium composite hood with collapsible fabric lens seal

Rail Fixings

3/8-16, with optional 1/4-20 inserts

Camera Carriage

Camera fixings: 2x 3/8-16, 1/4-20, Rod fixing: 2x 19mm rod fixings (studio standard 104mm pitch)

Camera base to lens centre height supported

50-140mm (2-5.5)

Monitor mounting

VESA100 with additional 3-8-16 camera support fixings

Counterweight mounting rods

2x 19mm dia.

Counterweight

1x 5kg (11lbs)

Monitor Dimensions

307 x 245 x 56mm (12.1 x 9.6 x 2.2)

Monitor Weight

1.3kg (2.9lbs)

System Dimensions

503 x 420 x 729mm (19.8 x 16.5 x 28.7)

System weight

8.1kg (17.9lbs) [excluding counterweight]
