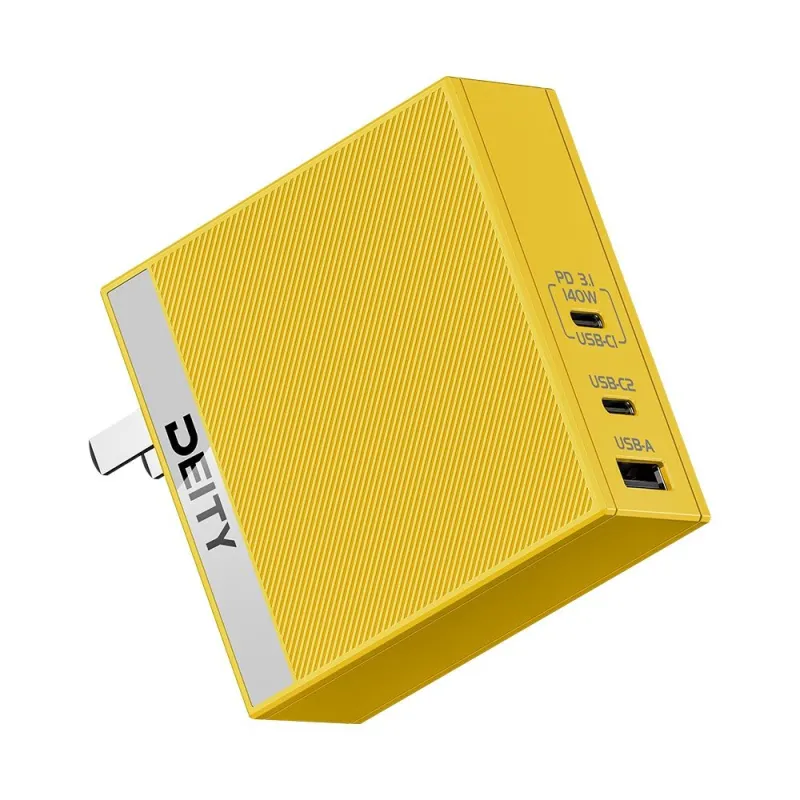

Deity 140W GaN Pro Charger Kit

The Deity 140W GaN Pro Charger Kit uses the third-generation semiconductor material gallium nitride (GaN). The maximum output of a single port is 140W, and when multiple ports are used simultaneously, it intelligently distributes power, allowing multiple devices to be fast-charged at the same time. It is customized for DEITY DQC2 fast charging, utilizing the 100-watt power output of the C1 port. It features all the standard fast charging protocols including PD3.1, PPS (5A), QC5.0, QC3.0, SCP, FCP, AFC, APPLE 2.4, PE+, and many others, meeting the latest MacBook Pro and most laptop computers.

Safety Features

The 140W Charger has an active PFC circuit and built-in multiple safety protections such as over-current, over-voltage, and over-temperature, ensuring a more stable output to protect your equipment.

Charging Capability

It is capable of charging a MacBook Pro 16 (2021) from 0 to 50% in just 30 minutes. Additionally, the plugs are foldable for convenient travel.

Product Specifications

• Product material: Fire Resistant Plastic
• Product size: 73 73 28 mm
• Product weight: 255g
• Interface type: USB-A 1, USB-C 2
• Input: 180-240V 50/60Hz, 2A Max
• USB-C1 output: 5V/9V/12V/15V 3A, 20V/28V 5A (140W Max)
• USB-C2 output: 5V/9V/12V/15V 3A, 20V 5A (100W Max)
• USB-A output: 5V 4.5A, 4.5V 5A, 9V 3A, 12V 2.5A, 20V 1.5A (30W Max)
• USB-C1 + USB-C2 output: 100W + 35W
• USB-C1 + USB-A output: 100W + 30W
• USB-C2 + USB-A output: 5V 4A
• USB-C1 + USB-C2 + USB-A output: 100W + 20W (5V 4A)
• Total output power: 140W Max
• Implementation standard: GB17625.1-2022; GB4943.1-2022; GB/T 9254.1-2021

Delivery Content

• 140W Charger

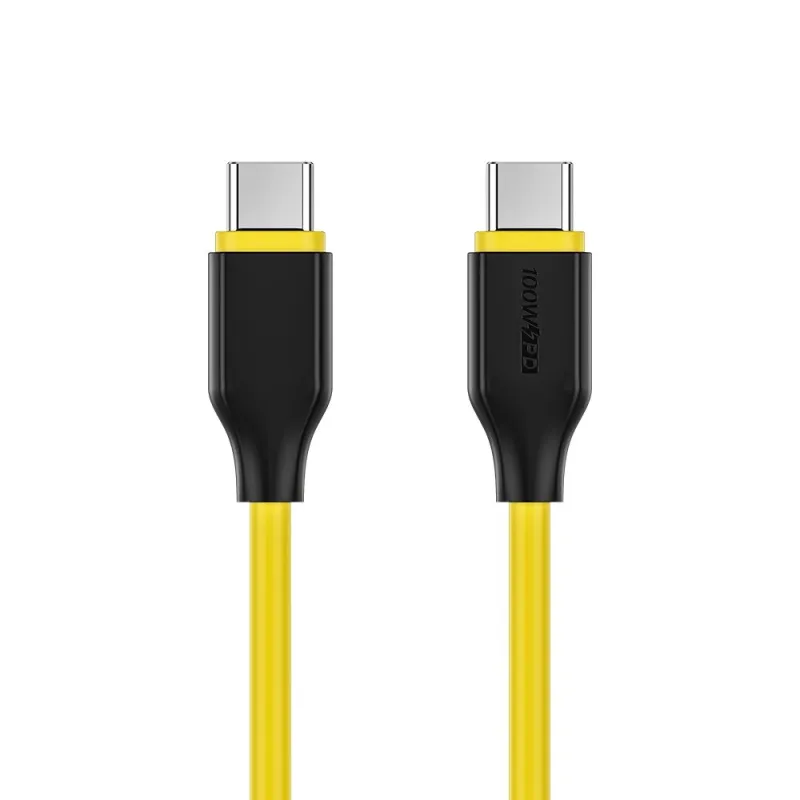

• Deity C23 and Deity C24 (USB C to USB C 1.5m)

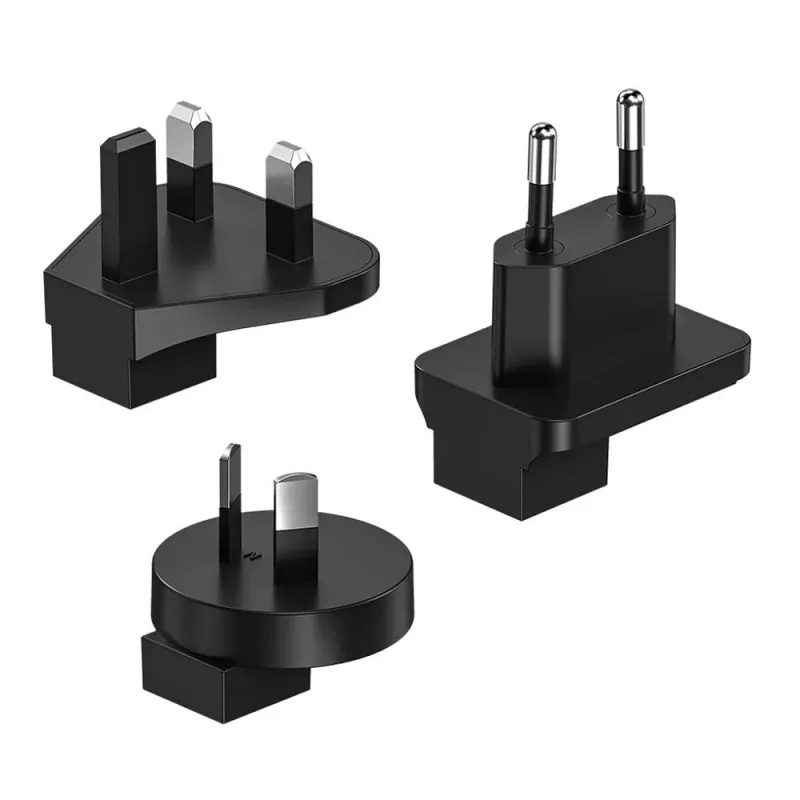

• Electrical plug adapters (Europe/UK/AU)
