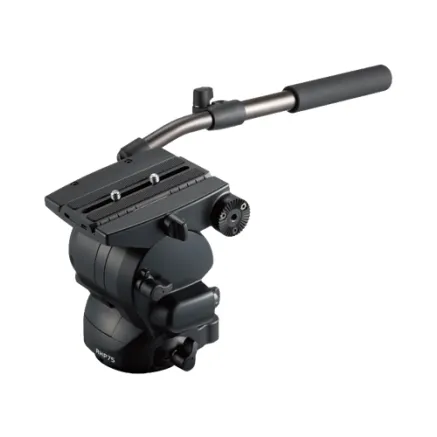

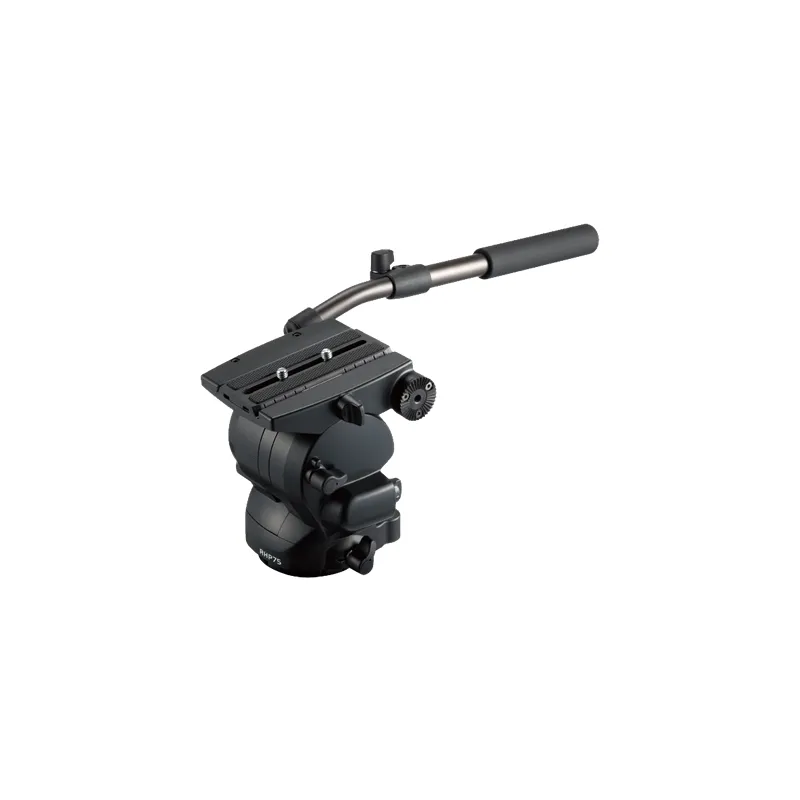

Libec RHP75 Video Head with Counterbalance Technology, 17kg Load

RHP75

Counterbalance Technology

All products in the RS PLUS range have been completely redesigned. The new RHP75 and RHP85 video heads allow detailed and precise adjustment of the spring tension depending on the weight of the camera and its accessories used. Thanks to this adjustment you get a perfect balance between the camera and the internal spring at any inclination.

The unique stabilizing and balancing mechanism

prevents any kinking or oscillation of the spring when stopped and its transfer to the image. In addition, the new mechanism makes adjusting the camera balance much faster and easier. In addition to speeding up the adjustment, the new stabilization system also ensures a perfect and stable image.

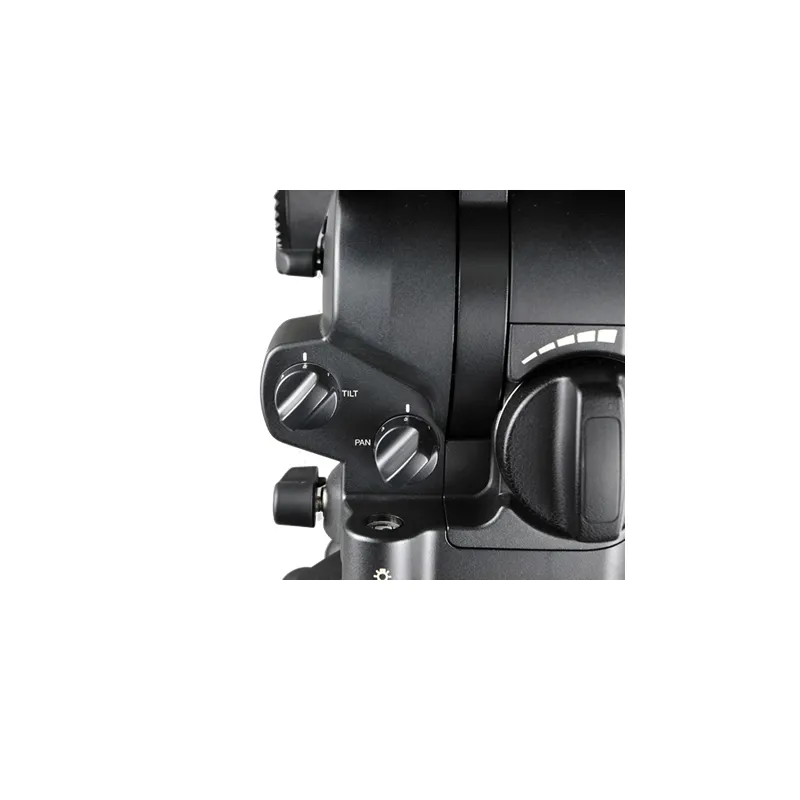

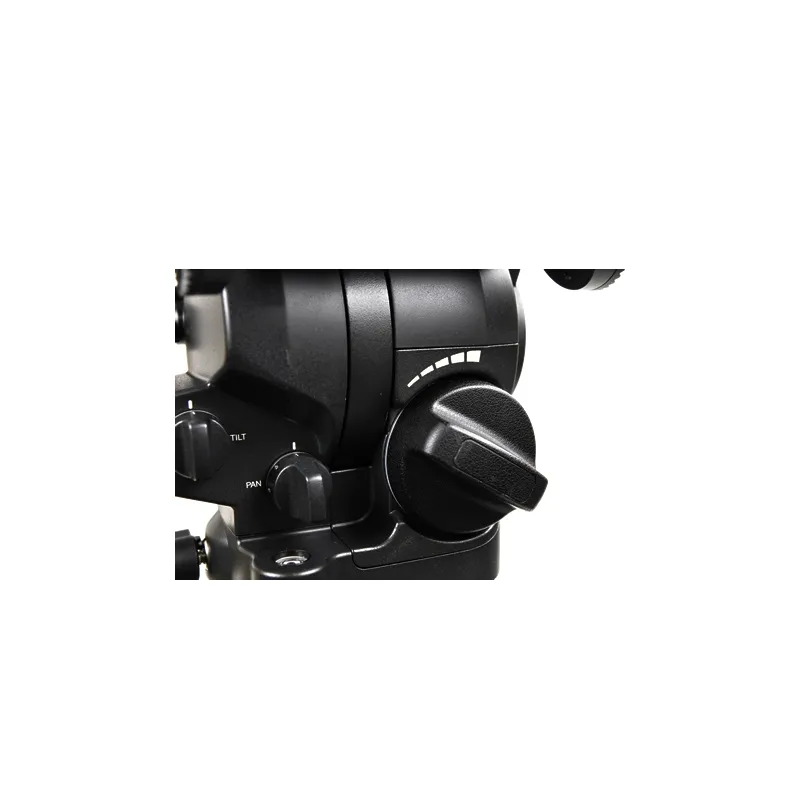

In addition to better stability, the system for adjusting the stiffness or resistance of the spring has also been modified. In general, the stiffer the spring, the harder it is to adjust. With the RS PLUS, this system has been redesigned and the stiffness adjustment is the same throughout the entire range.

New quick release mechanism

The quick-release plate can be inserted and removed very easily and there is no need to retract it - by simply modifying the clamping mechanism you save time and simplify your work.

A new addition to the RHP75 and RHP85 heads is a longer sliding plate allowing for better and more stable mounting of the camera and accessories on the tripod. It can slide up to a few centimeters, allowing for better and faster camera balancing.

Basic specifications of the Libec RHP75 video head:

• Load capacity: up to 17kg
• Counterbalance adjustment: infinitely variable, from 5.5kg to 14kg
(at 125mm centre of gravity)
• Inclination: +90° / -70°
• Stiffness:adjustable, 7 degrees
• Working range. -40°C to +60°C

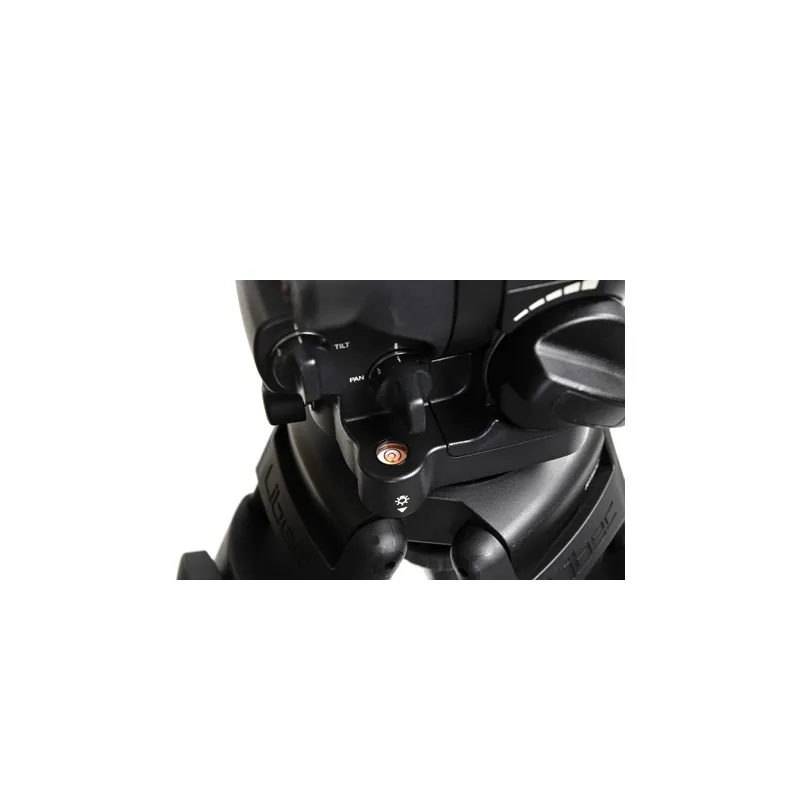

• Level: included, illuminated
• Camera mount: quick release plate, 2x 3/8" thread
• Replacement screw: 1x 3/8"
• Plate: sliding plate, ±55mm
• Hemispherical diameter: 100mm
• Weight: 3.8kg
