Multi-use AirHed
Overview

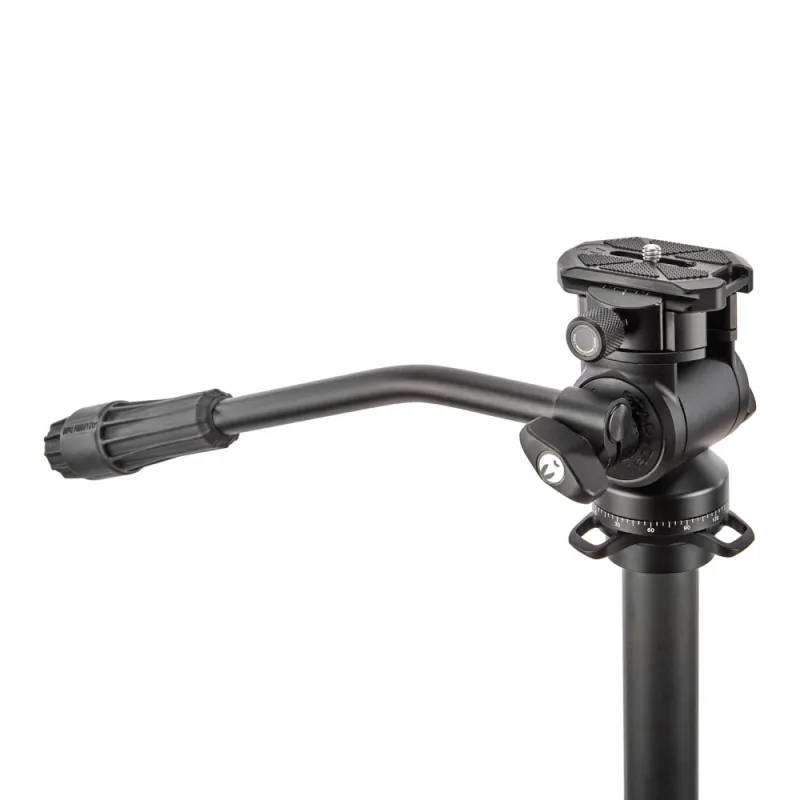

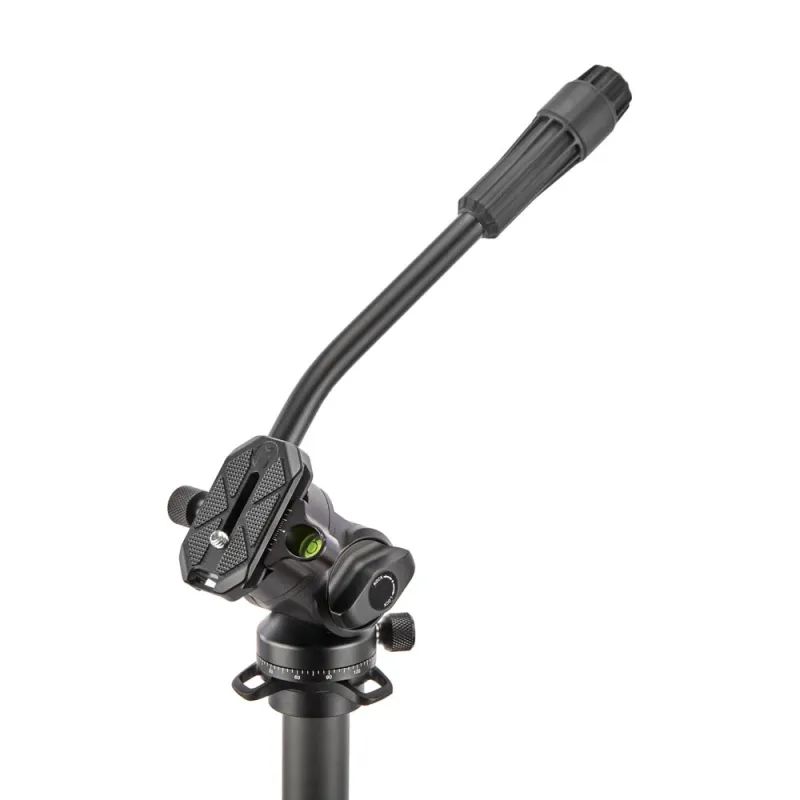

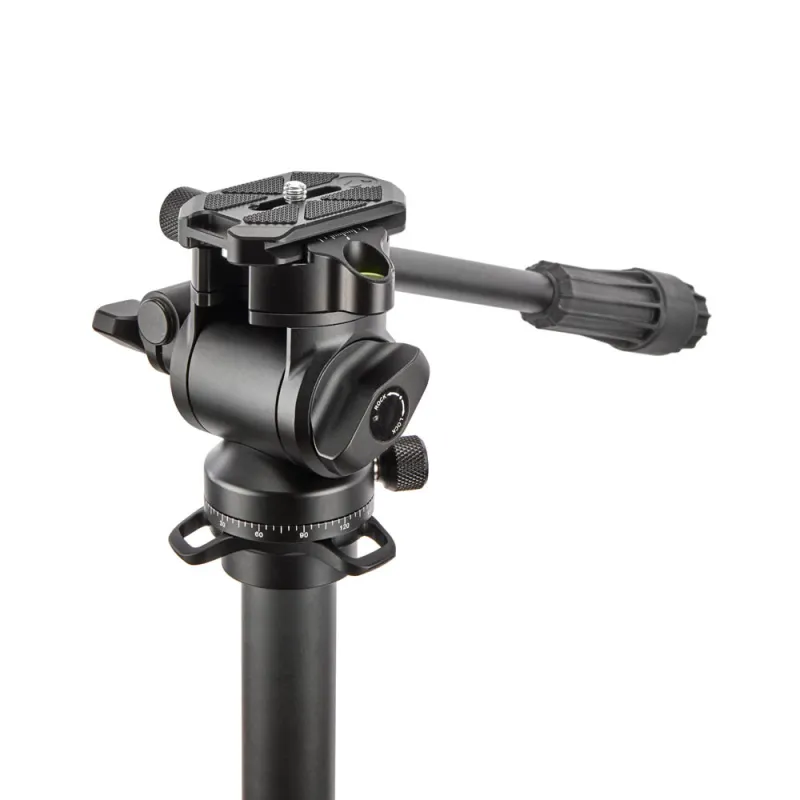

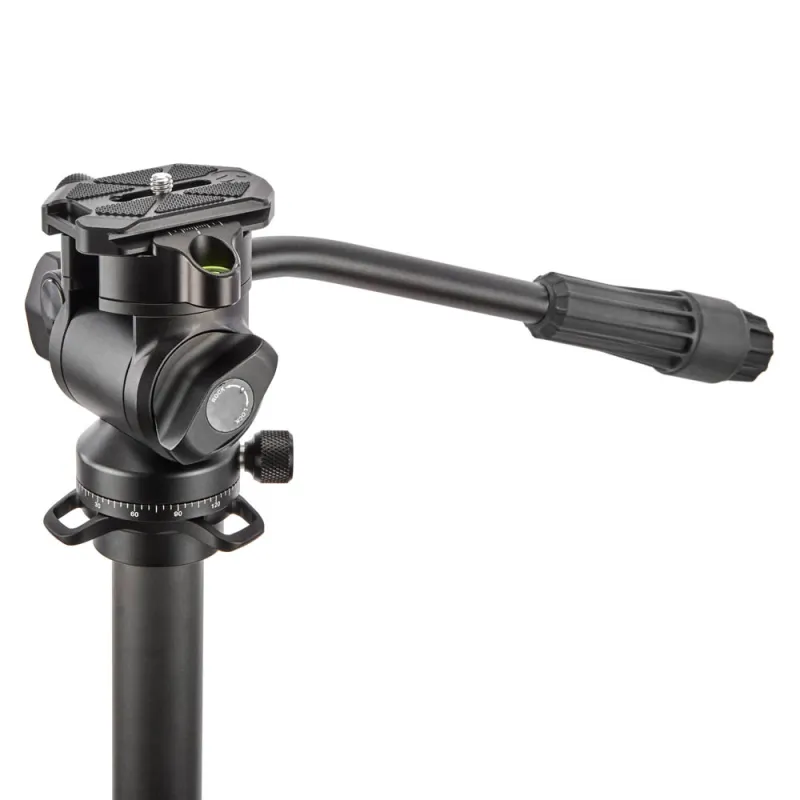

The 3 Legged Thing AirHed Vision is a compact, fluid video head designed for on-the-go video shooting. It features a total tilt angle of 165 (75 backwards and 90 forwards) and a full 360 panning base.
Highlights
- Arca Swiss compatible, compact pan & tilt fluid video head
- 360 panning base with built-in spirit level
- 165 total tilt
- Separate pan and tilt controls for precise motion
- Supports loads up to 5 kg
Precise Positioning
The versatile Arca Swiss compatible clamp features incremental scaling for accurate positioning and can rotate 90 for use with L brackets. It also accommodates the supplied QR7 long release plate.
Lightweight and Robust
Constructed from aerospace-grade magnesium alloy, the AirHed Vision is lightweight yet robust, supporting camera lens combinations up to 5 kg. It attaches to any tripod with a standard 3/8-16 screw mount.
Detachable Panning Arm
The detachable panning arm can be adjusted with a dedicated wing knob, and the head includes leveling levels in both the base and clamp.
Specifications
- Height: 9.1 cm
- Weight: 455 g
- Maximum load: 10 kg
- Head type: Liquid video head
- Controls: Pan, Clamp, Tilt, Arm buttons
- Plate: 38 mm x 38 mm Arca Swiss
- Shoe: Arca Swiss
- Camera mount: 1/4-20 thread (male)
- Clamp style: Arca Swiss Twist Lock
- Base width: 47 cm
- Foot mount: 3/8-16 with 1/4-20 threaded adapter
- Spirit level: 1
- Swivel range: 360
- Material: Magnesium alloy
- 5-year warranty

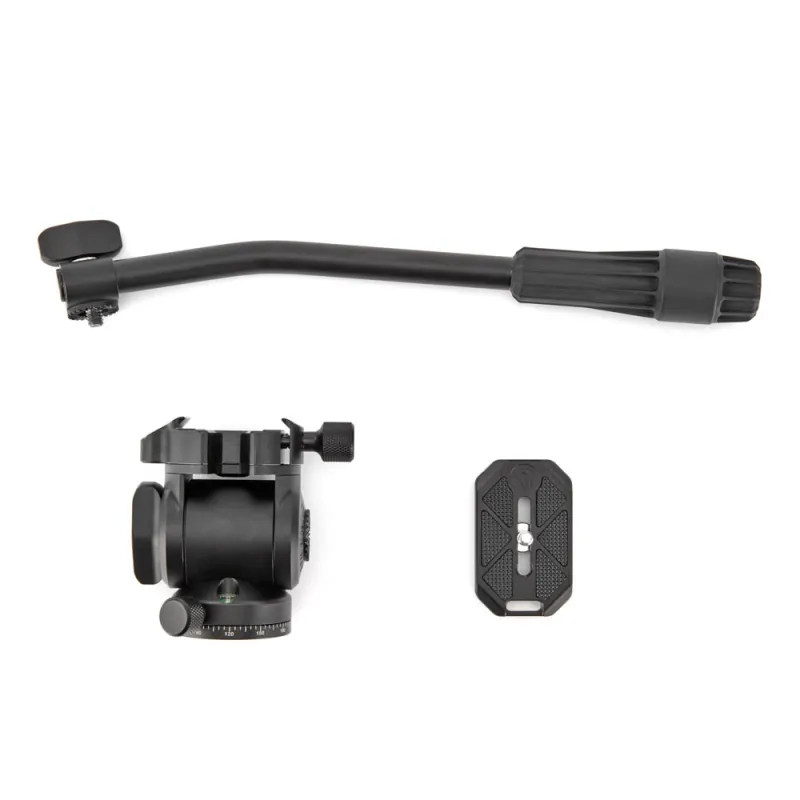

Included Accessories
- Removable panning arm with rubber grip
- QR7 Arca Swiss compatible long clutch plate
- Multi-tool carabiner keychain
- Reusable cable tie
