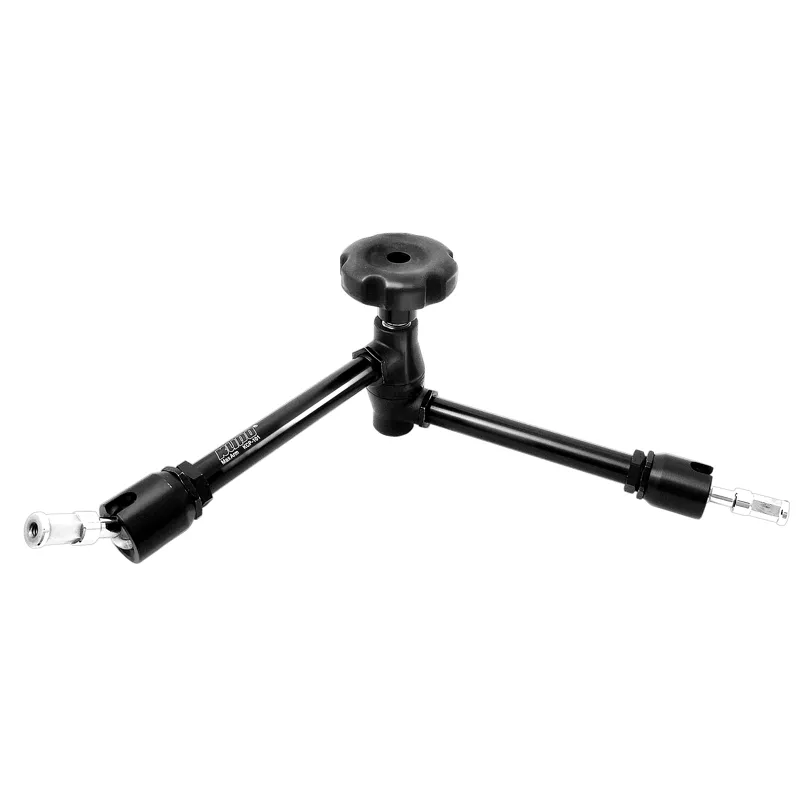

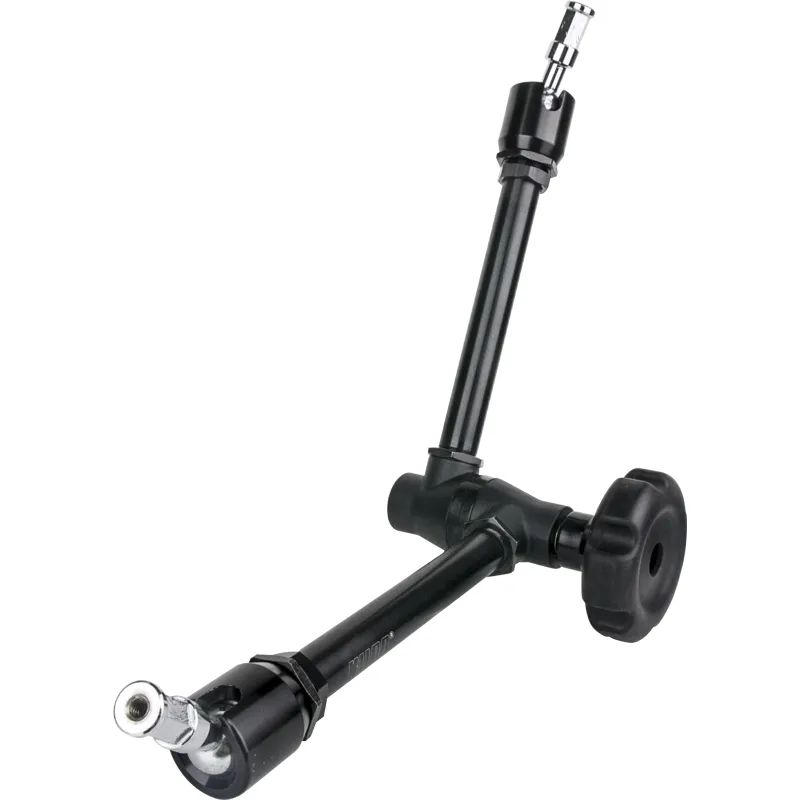

KUPO KCP-101W MAX ARM WITH HAND WHEEL KCP-101W

Product Features

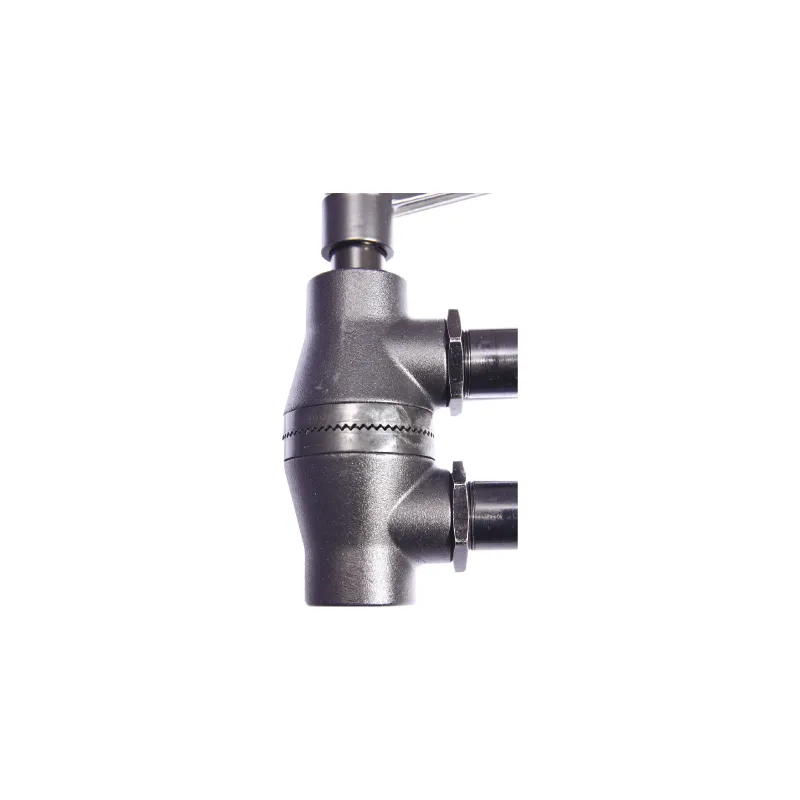

The two 5/8 (16mm) studs at either end are attached to ball joints that rotate 360 degrees. Additionally, a cut-out in the sleeve surrounding the ball allows the stud to be bent 90 degrees. One stud is tapped to receive a 3/8-16 thread, while the other is tapped to receive a 1/4-20 thread. Each stud has six milled flat surfaces, ensuring that whatever you mount on the Max Arm will not rotate. The central elbow rotates 360 degrees for infinite adjustability.

Friction Discs and Tension Control

The Max Arm is equipped with user-replaceable special friction discs with anti-slip rosettes to prevent unwanted movement. The large rubberized hand wheel slowly increases tension until all three joints lock at once, making precise positioning a breeze. It supports loads of up to 4kg and features a black aluminum finish.

Key Benefits

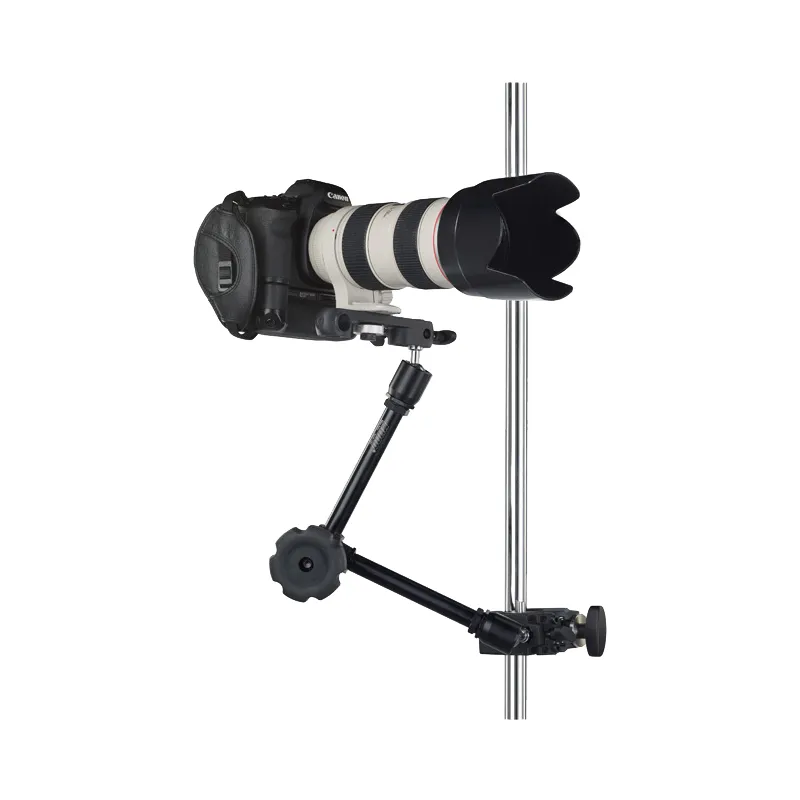

• Adjustable arm allows positioning of a camera, lighting fixture, or accessory within seconds
• Supports loads of up to 4kg
• Large rubberized hand wheel allows joints to lock at the same time for precise positioning
• Six milled flat surfaces for secure mounting
• Limited two-year warranty
