KUPO KS-403 BALL HEAD WITH 1/4-20 FOR SUPER KNUCKLE KS-403

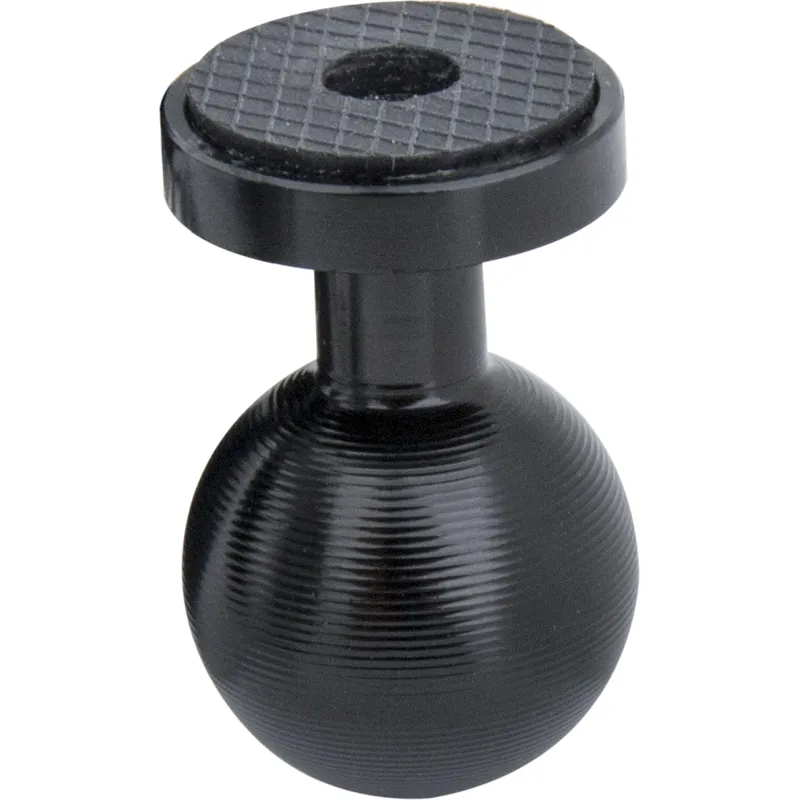

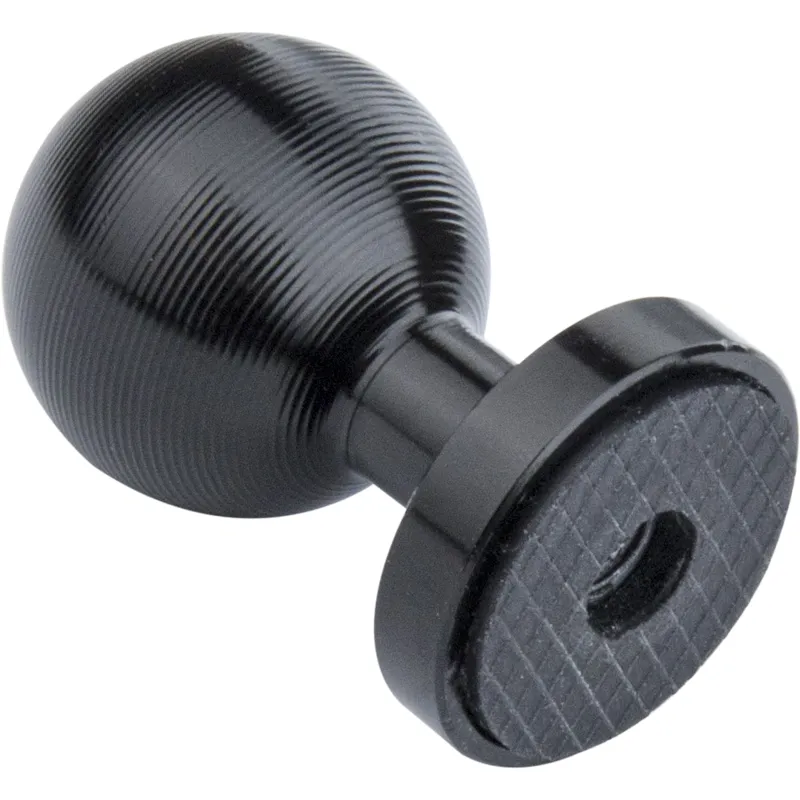

KS-403 / Ball Head with 1/4-20 Female Thread

Overview

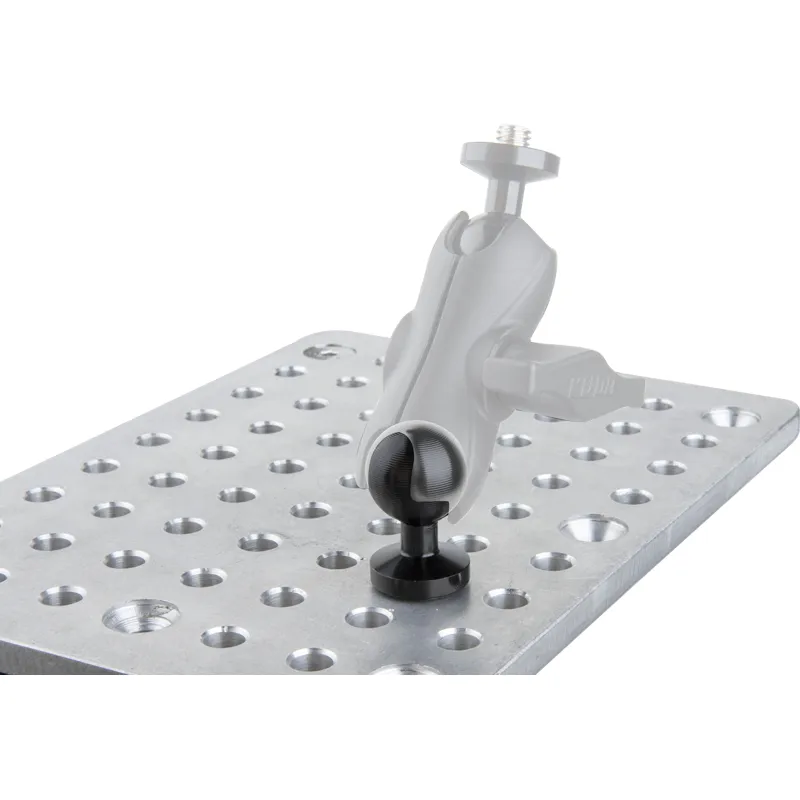

The super knuckle features a double socket arm and ball head at each end, which can be locked by the center knob. It offers an ultra-versatile solution for mounting and positioning. Constructed from a die-cast aluminum alloy shell, the ball heads and knob make it sturdy yet lightweight.

Specifications

• Ball Head Diameter: 26mm
• Material: Hard anodized aluminum with a serrated surface for better grip
• Weather Resistance: Yes
• Tilt Down Angle: Greater tilt down angle due to deeper side cuts
• Silicon Rubber Sleeve: Built-in to hold the unit together while changing the ball head
• Interchangeability: Double sockets and ball heads allow for various components to be interchanged for a wide range of applications

Applications

This product is suitable for various industries including:

• Lighting
• Cameras
• Monitors
• Tablets
• Smartphones
• Any mobile device

Additional Features

• Thread Type: 1/4-20 female threaded on the CNC machined aluminum ball head (Dia. 26mm) for mounting any equipment that comes with a 1/4-20 male thread
• Overall Length: 151mm (5.95 inches)
• Loading Capacity: 8kg
• Weight: 30g
