Caligri Airtube 360L for Arri Orbiter 15

Caligri Airtube 360L for Arri Orbiter 15°

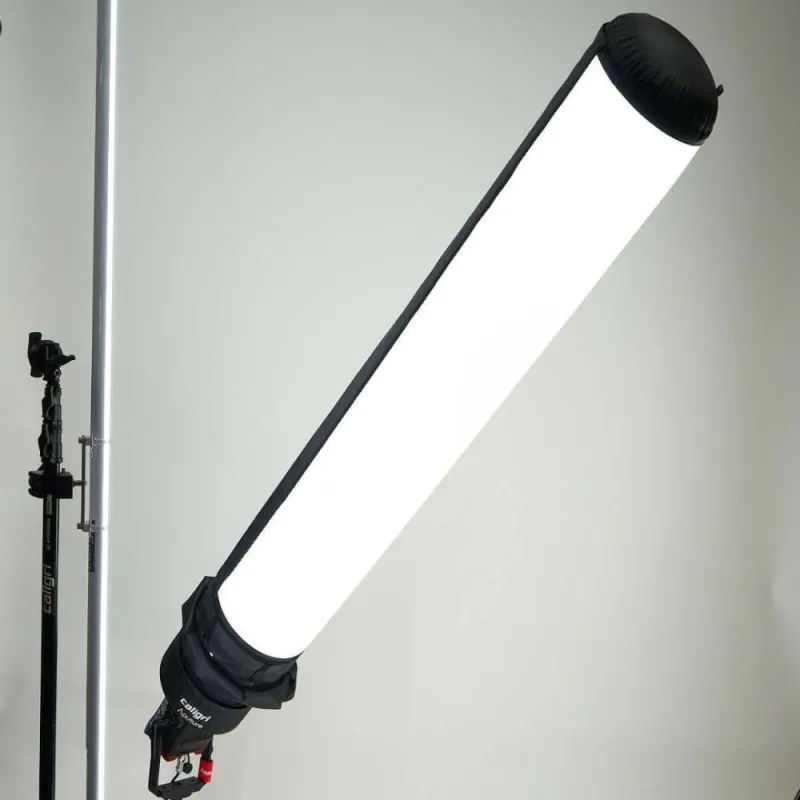

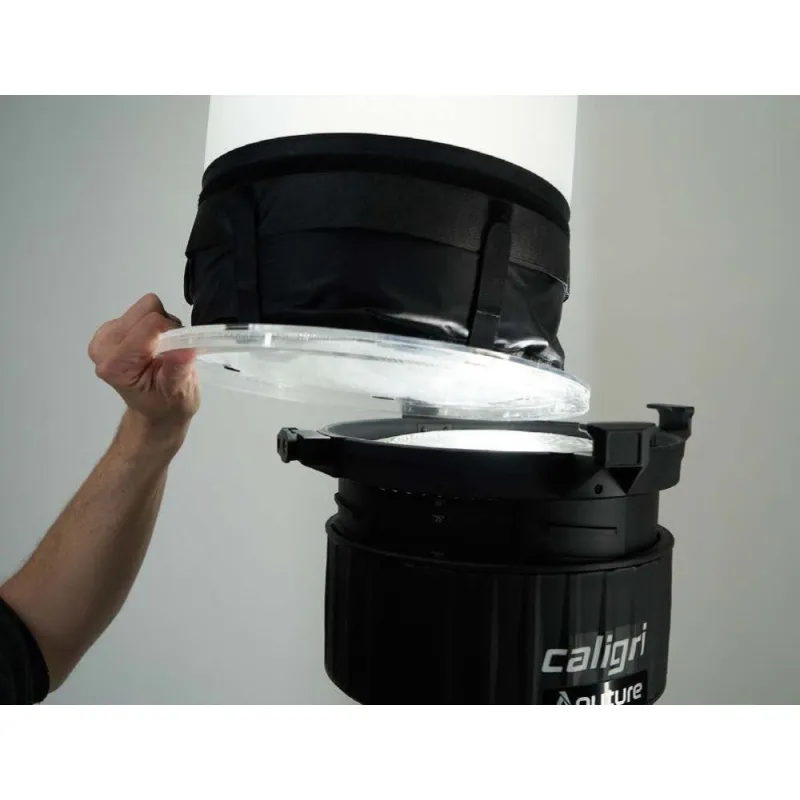

The Airtube 360 L  is a tubular softbox for LED headlights and 1x1 panel lights.* Apart from the two end faces, the entire cylinder is made of translucent fabric. The beam angle is therefore 360°. It is mounted using a Fresnel adapter. Just like that The other models from Caligri can be filled with air in just a few seconds. This way you can transform your headlight into a huge light column. If necessary, you can reduce the light beam to 180°.

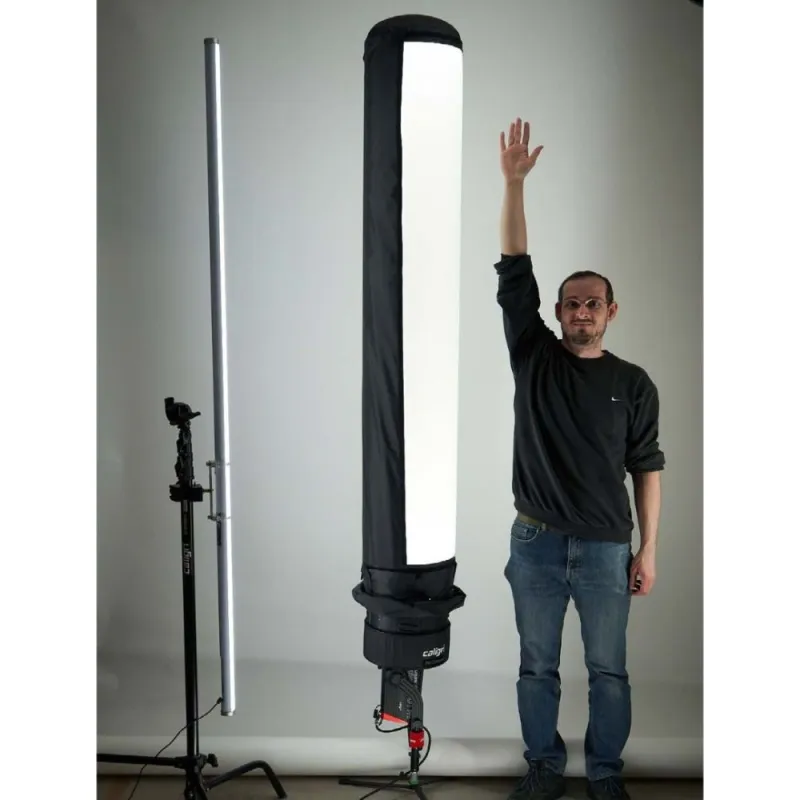

Dimensions when assembled

• Length 180cm
• Diameter 29cm
• Weight 1.8kg

characteristics

• 360° beam of light
• Can be reduced to 180° with curtains
• Can be inflated with a standard air pump from a camping retailer (or with your mouth if necessary), max. air pressure 0.83 bar
• Valve opening diameter: 1.75cm / 0.68
• Light cones can be limited using curtains
• The connection between the light and the softbox can be covered with an apron
• Made in Germany from proven, high-quality materials (Magic Cloth® and Ultrabounce® from TRP worldwide)

safety instructions

• If the light is completely covered with curtains and aprons, the ambient temperature is very high and/or the light is running at full power, you should keep an eye on the temperature. It may be necessary to let the lamp cool down a little or to ensure sufficient ventilation.
• The translucent part of the softbox can withstand a temperature of up to 100°C / 212°F
• Maximum air pressure: 12 PSI / 0.83bar . Especially when inflating with a compressor, you should keep an eye on the pressure so that the seams remain intact
• To protect the Airtube from kinks or other damage, you should carefully roll it up when storing or transporting it. We recommend storing them in the box.

Care tips

• The best way to clean the white, translucent fabric is with warm water and, if necessary, a gentle soap
• It is best to clean the black casing with warm water and common household cleaner

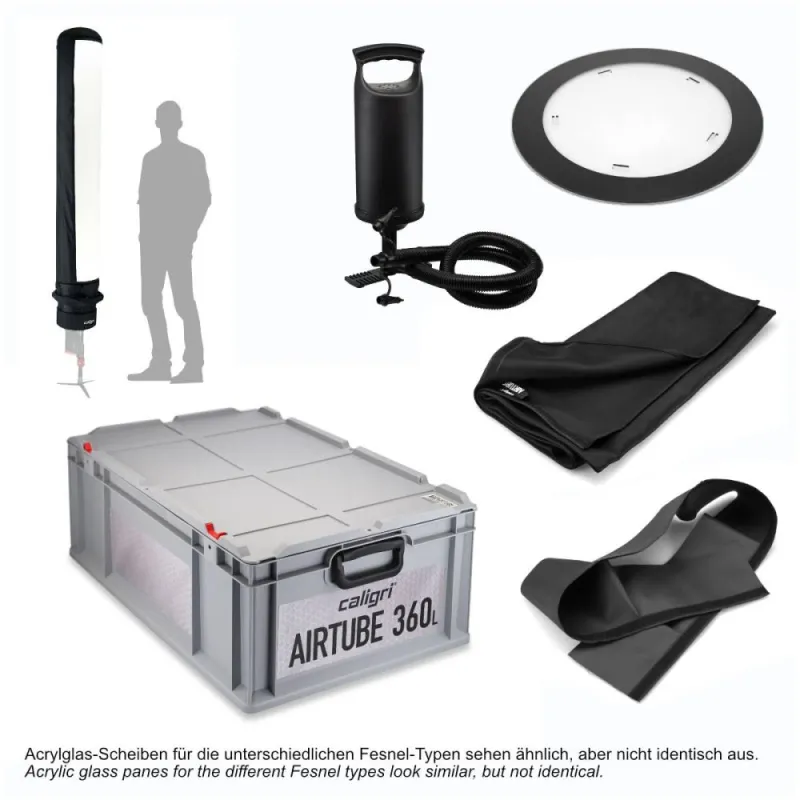

Delivery handling

• Airtube 360 L
• Adapter set for Fresnel attachment ARRI Orbiter 15°
