Enhanced One-Stop Shop to Access the World of NDI

Kiloview N5 is a bi-directional NDI converter that supports 3G-SDI input (encoder) and loop output(decoder). With the support of both NDI high bandwidth and NDI HX2/3, N5/N6 is capable of processing all NDI sources from any camera, software or device.

Featured with powerful functions such as PoE, LCD display with big-sized tally, PTZ control, 3.5mm audio line in/out, multi-channel audio encoding, intercom and centralized management, N5 is the easiest and most cost-effective way to get access to the fabulous NDI world for low latency and high image quality.

• NDI and NDI|HX protocol
• IP-based post production
• Video output to screen
• Low latency transmission
• Video conferences

2-IN-1 for NDI Encoding & Decoding
Kiloview N5 supports encoding/decoding of NDI High Bandwidth and NDI HX 2/3. Both NDI encoding and decoding can work within this compact device. Switch the working mode on the UI to the mode you want, and it can easily accommodate all of your workflows.

In encoding mode, N5 can encode 3G-SDI signal into an NDI High Bandwidth/NDI HX 2/3 video stream.

In decoding mode, N5 will automatically adapt the NDI High Bandwidth/NDI HX 2/3 and output through 3G-SDI.

Audio And Intercom
Kiloview N5 supports 3.5mm analog audio line in/out or embedded audio. Max 4CH audio encoding will be supported. It also supports voice intercom with Kiloview Intercom server.

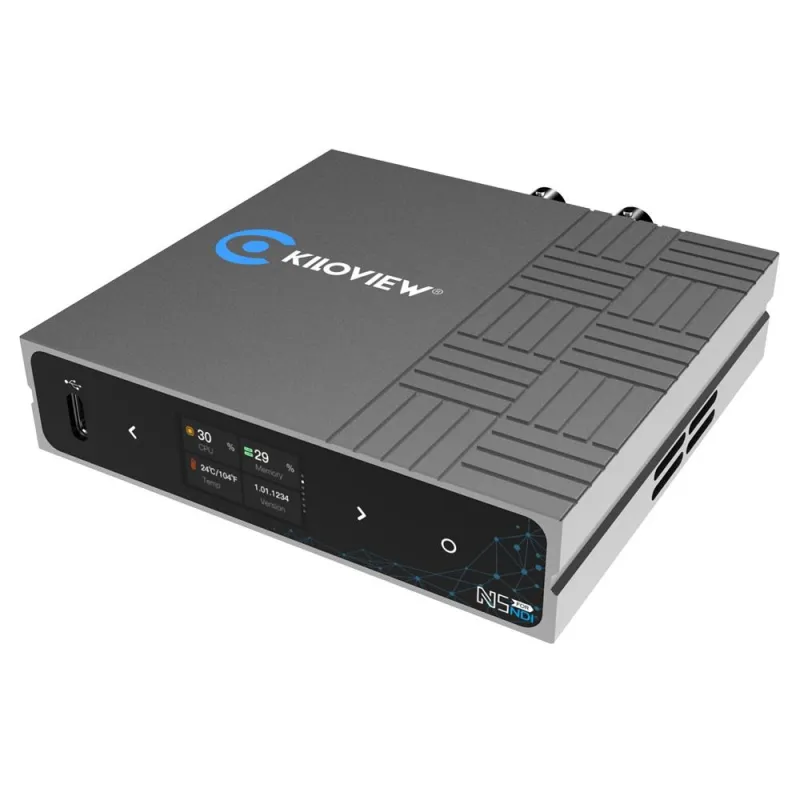

Built-in LCD Screen and Touch Button
N5 is equipped with a 1.14-inch LCD screen with touch buttons for a better user experience. With the built-in LCD screen, you can easily check the connectivity, IP address, CPU, memory, resolution, temperature, and tally status in real-time.

Power It as You Wish
With PoE, the N5/N6 can be powered with a single cable connection. With the design of wide DC input range from 5V to 18V, it can also be easily powered by USB power or a camera battery.

In the Box
1× 3G-SDI NDI Bi-Directional Converter (N5)
1× Power Supply
1× Cold Shoe
1× Quick Start Guide

Specifications

Video input

1× 3G-SDI

Video output

1× 3G-SDI (Loop or decoding output)

Audio port

1× 3.5mm Line In
1× 3.5mm Line Out
1× 3.5mm Mic

Network

1× RJ45 1000Mbps Ethernet port (with PoE)

Video resolution

N5 Input: Up to 1080p60
N5 Output:
1080p24/25/30/50/60; 1080i50/60; 720p50/60; 1920x1200p60; 1600x1200p60; 1680x1050p60; 1280x800p60; 1440x900p60; 1366x768p60; 1280x1024p60; 800x600p60; 640x480p60; 720x480p60; 720x576p50

NDI codec capacity

1× FULL NDI® and 1× NDI®|HX

NDI codec feature

FULL NDI HD encoding, typical bitrate: 125Mbps@1080p60

LED indicator

Tally light, power light and status connection light

Power

PoE, DC, D-Tap (camera) optional. 5-18V wide range supported

Voice intercom

Support

PTZ control

Network PTZ and Serial Port

DHCP

Support

Weight

272 g

Dimension

100×80×24 mm
