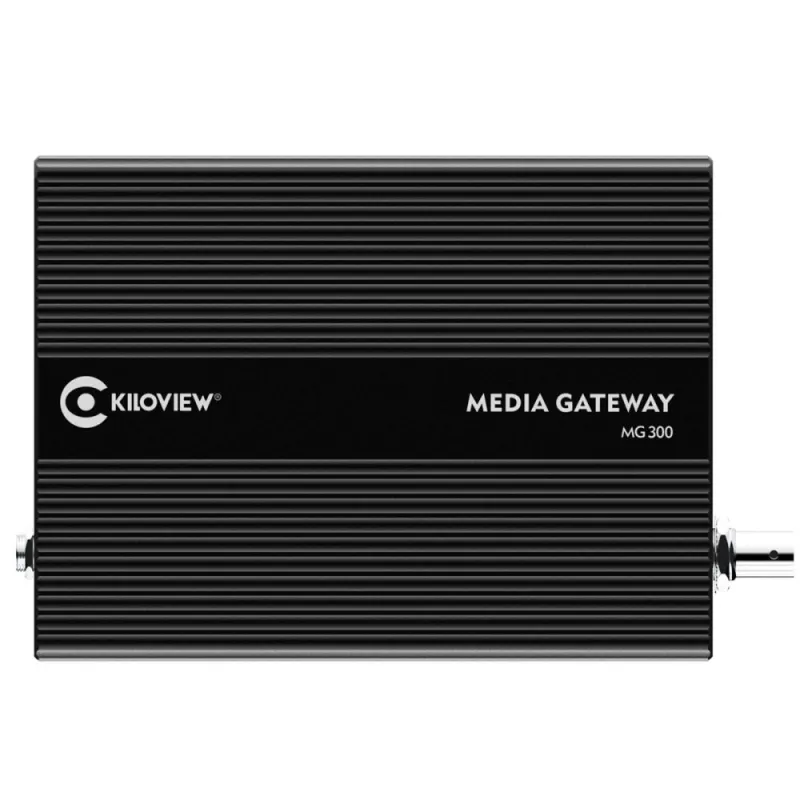

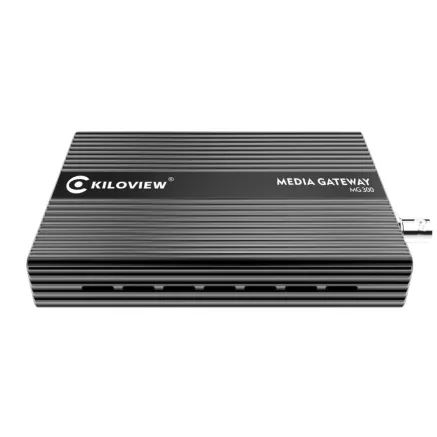

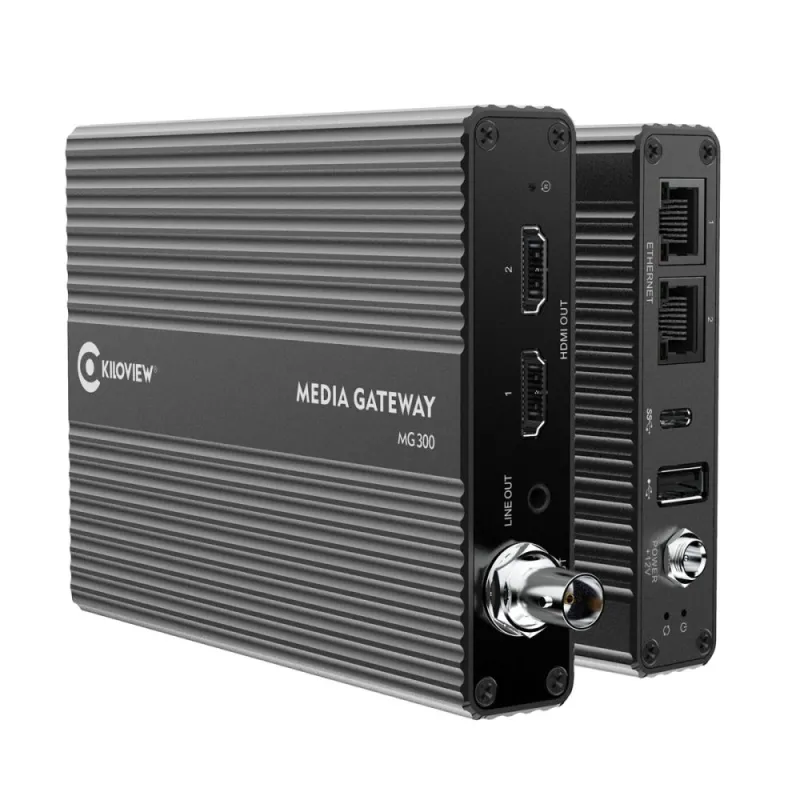

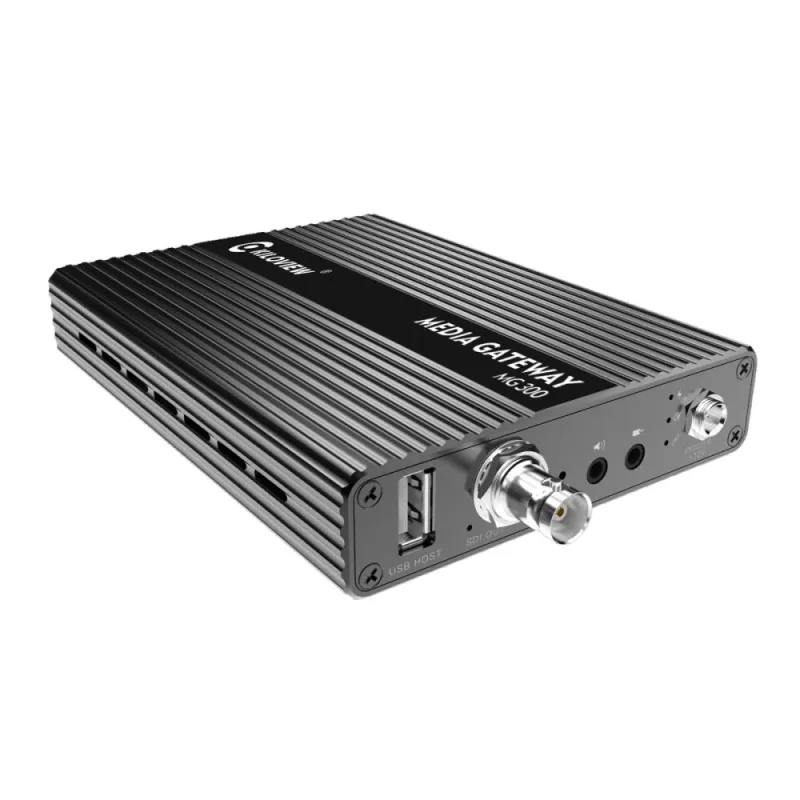

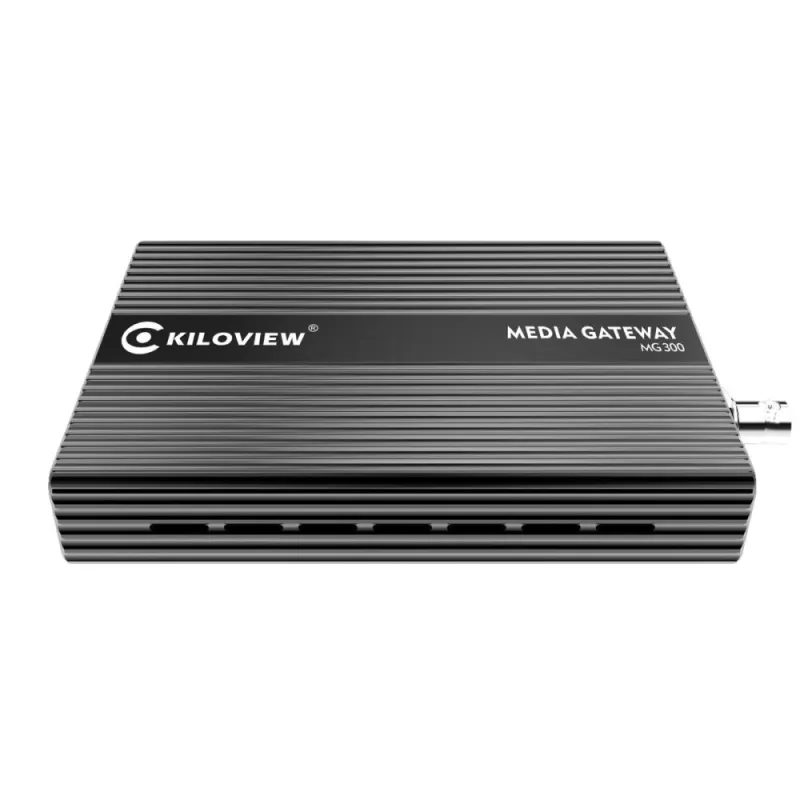

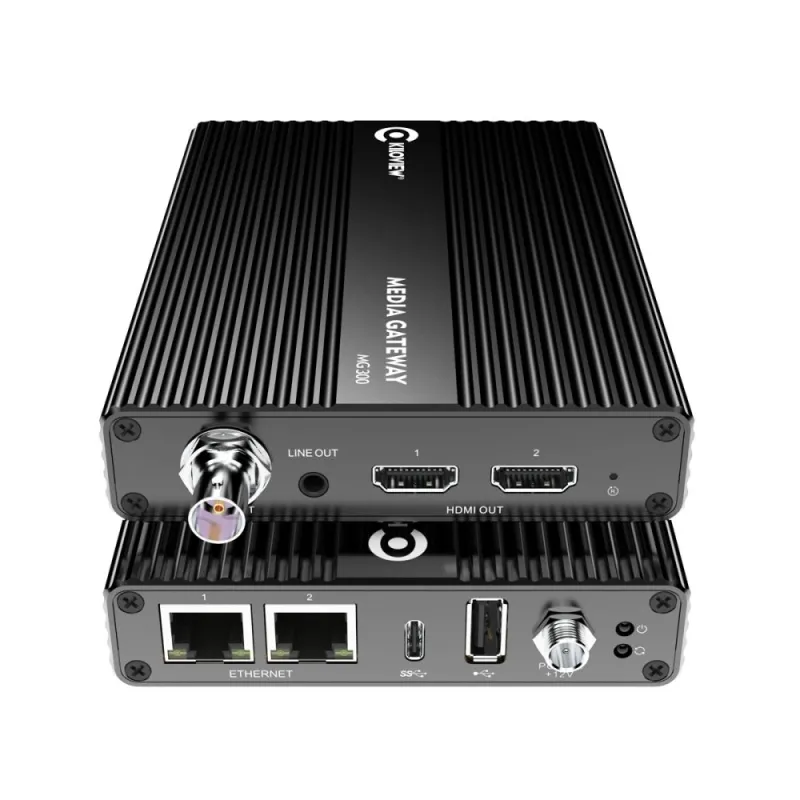

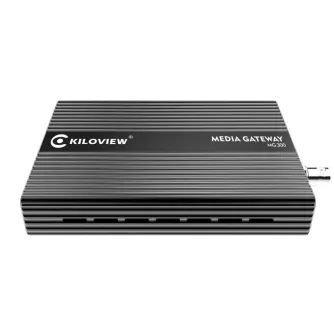

Kiloview 4K NDI-HX to SDI/HDMI Decoder (MG300 V2)

Kiloview 4K NDI-HX to SDI/HDMI Decoder (MG300 V2)
Easily Bridges Most IP Protocols

Kiloview MG300 V2 media gateway is a high-performance embedded multi-functional device. It integrates functions such as multi-channel video decoding between NDI|HX, SRT, RTMP, RTSP, TS-UDP, and HLS to SDI and HDMI. It can do so with the same or different content, multi-view output and streaming, video image segmentation, protocol cross conversion, stream media and distribution services.

Its a protocol converter
MG300 V2 is compatible with NDI®|HX (2.0) , SRT , RTMP, RTMPS, RTSP, TS-UDP, and HLS, etc.It supports the decoding with all those different protocols, at the same time supports up to 9 protocols cross conversion.
Each input stream is converted into 4 same or different protocols output.

Powerful IP Stream Function
Multi-channel video streams can be re-published as a Multiview video source with free layout; Up to 9 channels of IP streaming distribution (including the Multiview video source) and each stream can be pushed to up to 4 same or different targets simultaneously.

In the Box
1× 4K NDI-HX to SDI/HDMI Decoder (MG300 V2)

Specifications

Interface

HDMI 2.0

Video resolution

4K60, compatible with HD

Ethernet port

2× 1000M Ethernet port

USB interface

1× USB2.0

Analog audio interface

1× 3.5mm analog audio

NDI performance

Support HDMI to NDI High Bandwidth®
Support 3.5mm analog audio embedded in NDI®
Support other IP streams to NDI®|HX

Tally light

Built-in

PTZ control

Support Sony Visca/Visca (Laia)/Visca (Kato)/PELCO-D/PELCO-P

PoE

Support

Power/power consumption

DC 12V1A

Size

Φ: 90mm, H: 30mm

Weight

310g
