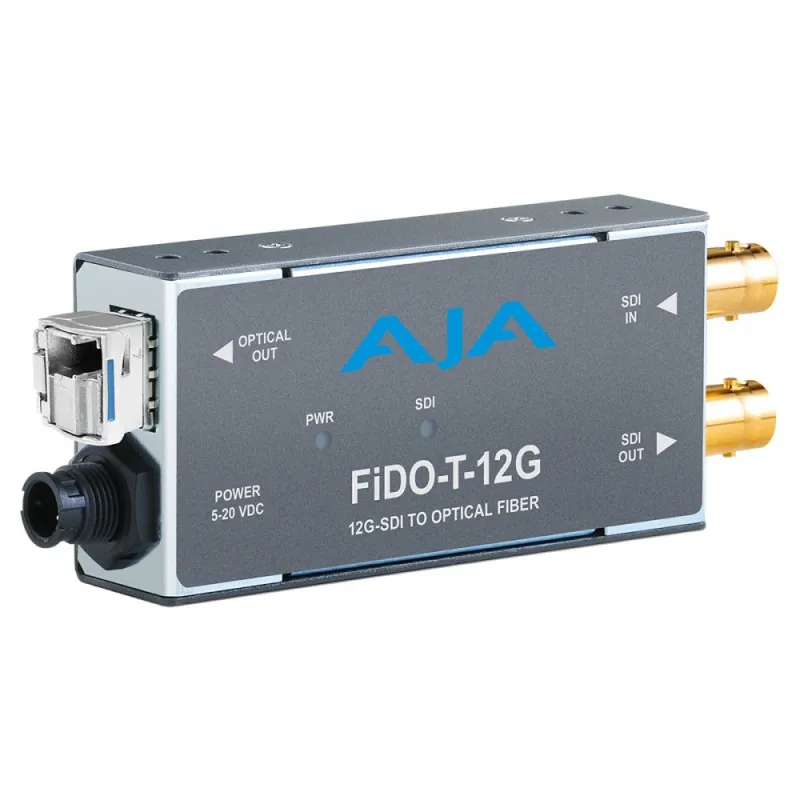

AJA FiDO-T-12G 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
SKU: 14828
Būklė: Naujas produktas
Šiuo metu šio produkto negalima užsisakyti, prašome patikrinti vėliau.
€ 1 215.37 su mokesčiais
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
AJA FiDO-T-12G 1-Channel 12G-SDI to Single-Mode LC Fiber Transmitter
FiDO-T-12G offers unmatched flexibility and cost efficiency for 12G/3G/HD/SD-SDI Fiber conversion, allowing for cable runs up to 10 km (32,808 ft) over standard single-mode fiber optic cable.
FiDO converters use a compact, low-profile enclosure that works well in tight spaces around and behind equipment racks, trucks and on camera.
Features:
• Simplex connection (LC connector)
• 12G-SDI input, which also supports 6G/3G/HD/SD-SDI
• Reclocked loop through of SDI input
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
Specifications
| Video Formats | 100 Mbps - 12 Gbps, format agnostic |
| Video Input Digital | 1-Channel independent 12G-SDI, SMPTE-259/292/424/2081/2082 |
| Video Output Digital | 1-Channel independent 12G-SDI Loop out, SMPTE-259/292/424/2081/2082 |
| 1-Channel Single Mode LC Fiber connector, SMPTE-297/259/292/424/2081/2082 | |
| Nominal Wavelength: 1310 nm | |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.967 Gbps, 2.970 Gbps, 5.934 Gbps, 5.940 Gbps, 11.868 Gbps, 11.880 Gbps - Auto Select |
| All other rates are passed through and not reclocked | |
| Size (w x d x h) | 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) |
