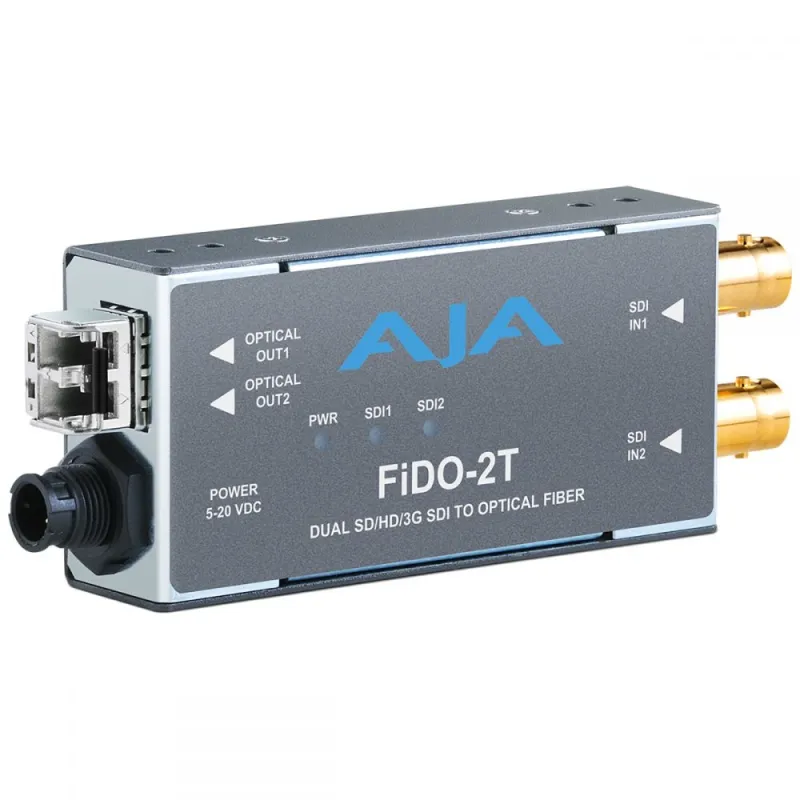

AJA FiDO-2T-MM 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
SKU: 14824
Būklė: Naujas produktas
€ 1 362.84 su mokesčiais
| Type of Product | Blackmagic Design |
| Accessories for video cameras | pārveidotāji |
AJA FiDO-2T-MM 2-Channel 3G-SDI to Multi-Mode LC Fiber Transmitter
FiDO-2T-MM offers unmatched flexibility and cost efficiency for 3G-SDI Fiber conversion, allowing for cable runs up to 700 m (2296 ft) for OM4 and 300 m (984 ft) for OM3 for Multi-Mode* fiber optic cables - useful for eliminating ground loop problems.
Universal Power Supply
All AJA Mini-Converters ship with a universal power supply that includes international plug connections for use around the world.
Compact and Portable
AJA Mini-Converters are small enough to fit behind a monitor, in the back of a rack or directly on a camera rig. A locking power connector can't accidentally pull loose and an optional P-TAP power cable allows for battery power in remote locations.
Features:
• Duplex connection (LC connector)
• Dual, independent 3G/HD/SD-SDI inputs
• Both SDI-to-Fiber paths are completely independent
• Uses 5-20VDC power (DWP-U-R1 universal power supply included)
• Five year warranty
Specifications
| Video Formats | 100 Mbps - 3 Gbps, format agnostic |
| Video Input Digital | 2-Channel independent 3G-SDI Inputs, SMPTE-259/292/424 |
| Video Output Digital | 2-Channel independent Multi-Mode LC Fiber Outputs, SMPTE-297 |
| Nominal Wavelength: 850 nm | |
| Optical Power: -7dBm (min), -2dBm (max) | |
| Extinction Ratio: 7.5dB (Typ) | |
| Reclocking | 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select |
| All other rates are passed through and not reclocked | |
| Size (w x d x h) | 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm) |
| Power | 3 watts max |
| Uses 5-20VDC power (AJA power supply model DWP-U-R1 included) | |
| Safe Operating Temperature | 0 to 40 degrees C (32 to 104 degrees F) |
| Safe Storage Temperature (Power OFF) | -40 to 60 degrees C (-40 to 140 degrees F) |
| Operating Relative Humidity: 10-90% noncondensing | |
| Operating Altitude: <3,000 meters (<10,000 feet) |
