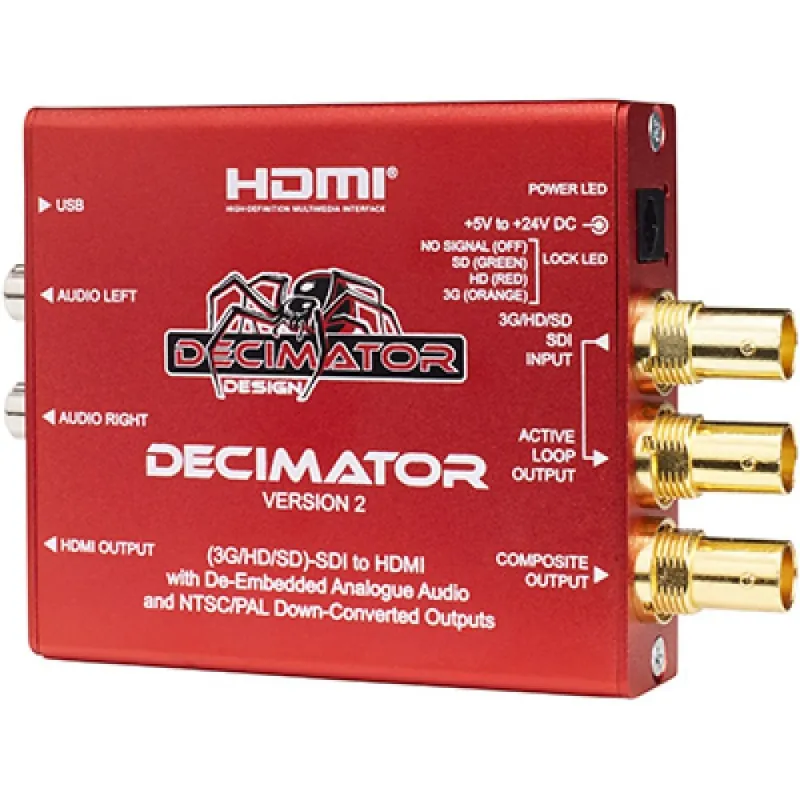

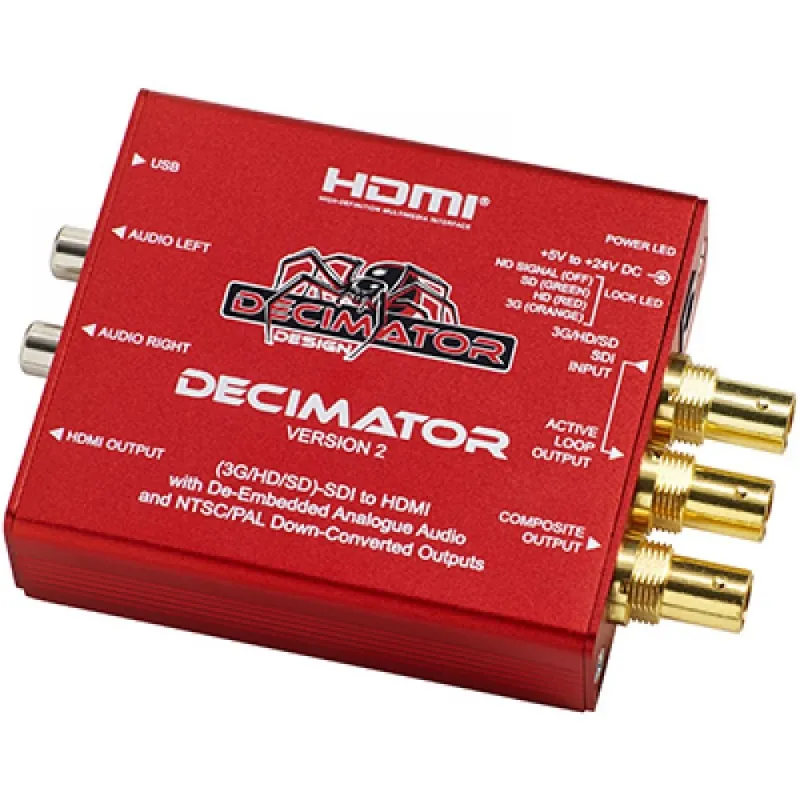

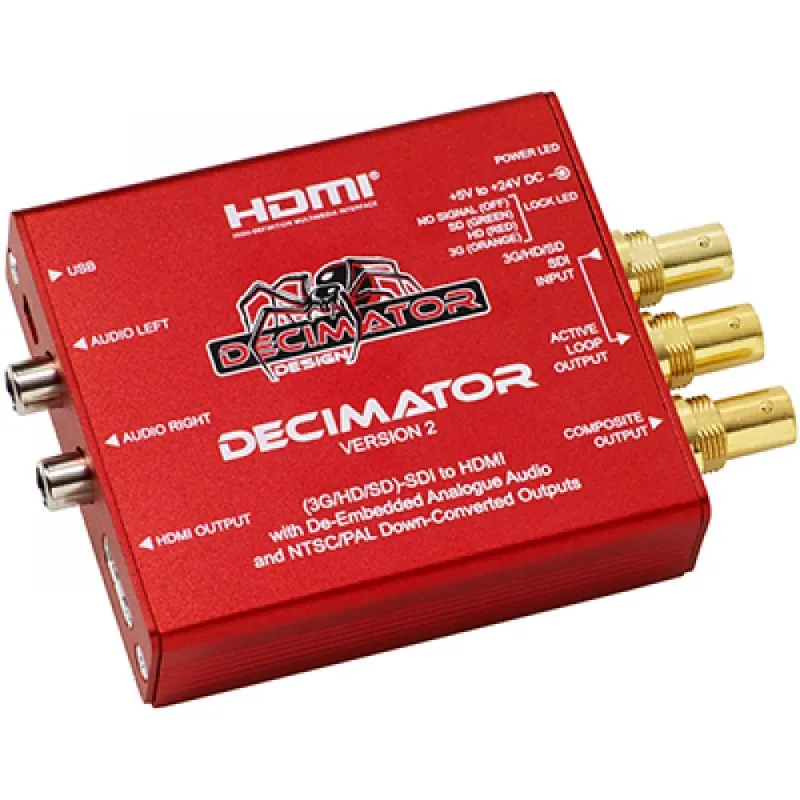

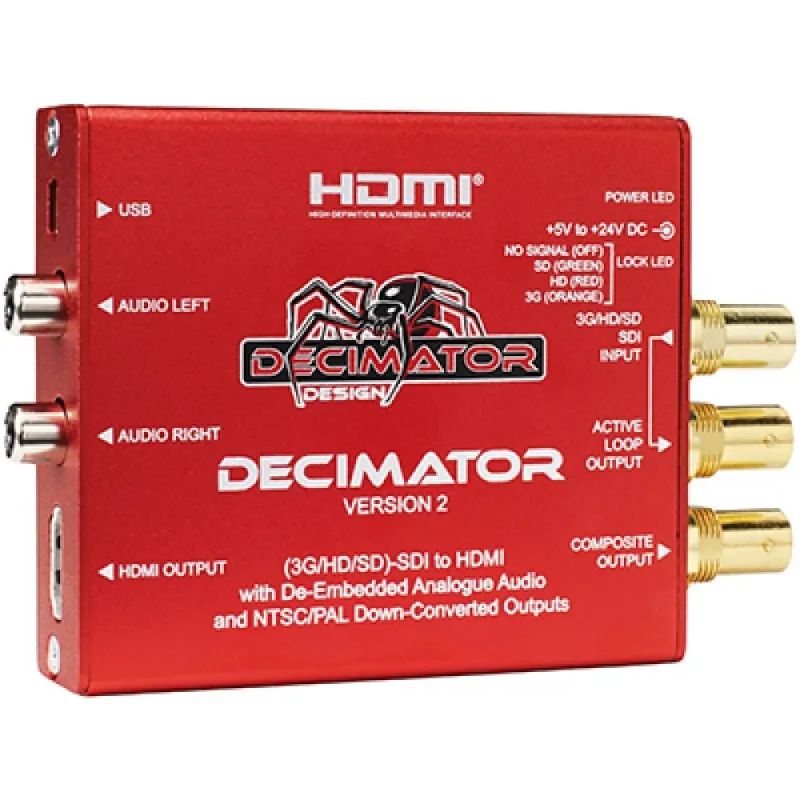

Decimator Design DECIMATOR 2 SDI to Composite/HDMI Converter (DD-DEC-2)

Decimator Design DECIMATOR 2 SDI to Composite/HDMI Converter (DD-DEC-2)

The Decimator 2 from Decimator Design allows you to view any format of SDI on a composite or HDMI monitor with de-embedded audio. Scale either output simultaneously and perform aspect ratio conversion on the HDMI output.

Features:
– Auto detection of 3G, HD or SD (26 formats total)
– Selection of NTSC or PAL for 3G/HD inputs
– 2x RCA connectors for de-embedded analogue audio
– Switching of synchronous sources
– Simultaneous scaling on both the HDMI & composite outputs
– 16:9 and 4:3 aspect ratio conversion
– Full 16 channel audio metering on the HDMI output
– Graticules and overlays on the HDMI output
– Loopthrough-Ausgang

Control either via USB on a Mac/Windows app or on-unit using the dip switch. The unit comes with a Locking DC Power Supply, HDMI Cable, USB Cable & Mounting Bracket. Warranty for all Decimator Design products is 3 years.

Delivery Contents:
Decimator 2
Power Supply
HDMI Cable
USB Cable

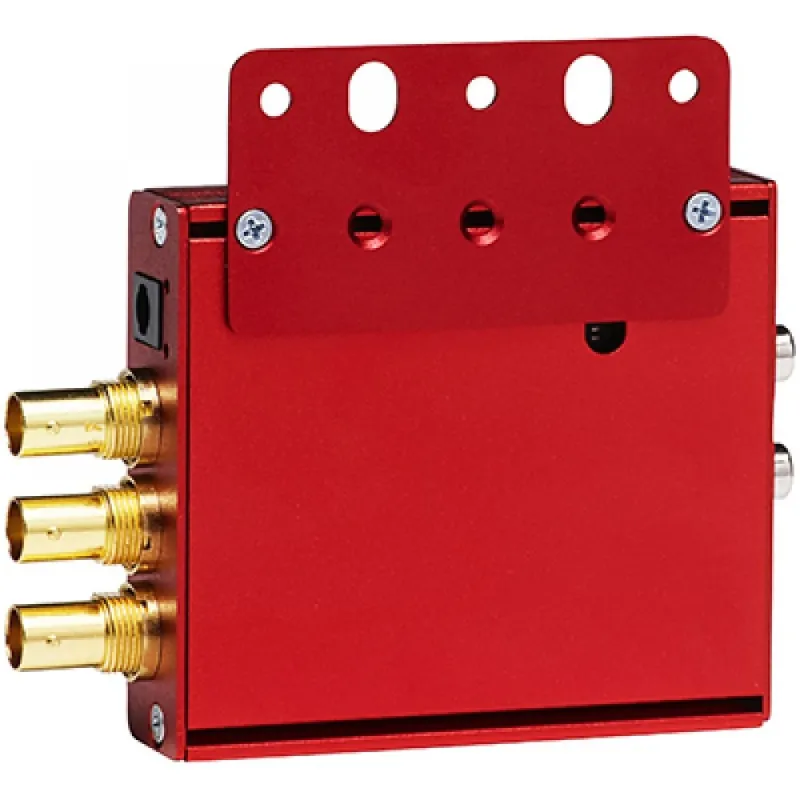

Mounting Bracket
