DAC-75T HD Cross Converter by Datavideo, Video Signal Converter DAC-75T

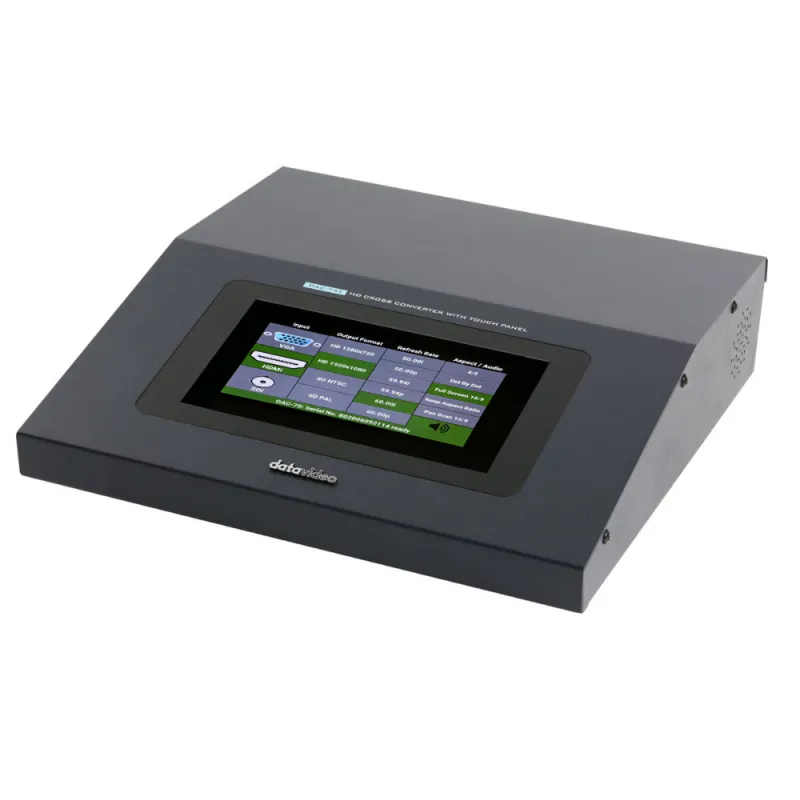

DAC-75T HD Cross Converter

The DAC-75T converts video signals from VGA, HDMI, and SDI with audio input to 3G/HD/SD SDI outputs.

Specifications

• Conversion: VGA/HDMI/SDI to HDMI/SDI (Multi-format Up/Down/Cross)
• Video Inputs: 1x VGA, 1x HDMI, 1x 3G/HD/SD-SDI
• Loop Through: Yes
• Video Outputs: 2x 3G/HD/SD-SDI with embedded audio, 1x HDMI
• Audio Inputs: 2x RCA (Stereo Pair), 2x SDI/HDMI audio embedded
• Audio Outputs: SDI and HDMI embedded audio up to 8CH, 48KHz, PCM audio
• Supported Video Input Formats: 1080p, 1080i, 720p, 625i, 576p/i, 525i, 480p/i, various resolutions up to 1920x1080
• Output Resolutions: 1080p, 1080i, 720p, 625i, 525i
• Equalizer: Yes
• Reclock: Yes
• SDI Cable Drive: Yes
• Dimensions: 280 x 300 x 70 mm
• Weight: 2.4 kg
• Operating Temperature Range: 0-40C
• Power: AC 100-240V
• Whats in the Box:
  • 1 x DAC-75T Unit
  • 1 x Power Cord
  • 1 x Thank You Card
