SmallRig 2266 Baseplate voor BMPCC 4K (Manfrotto 501PL Compatible) DBM2266B

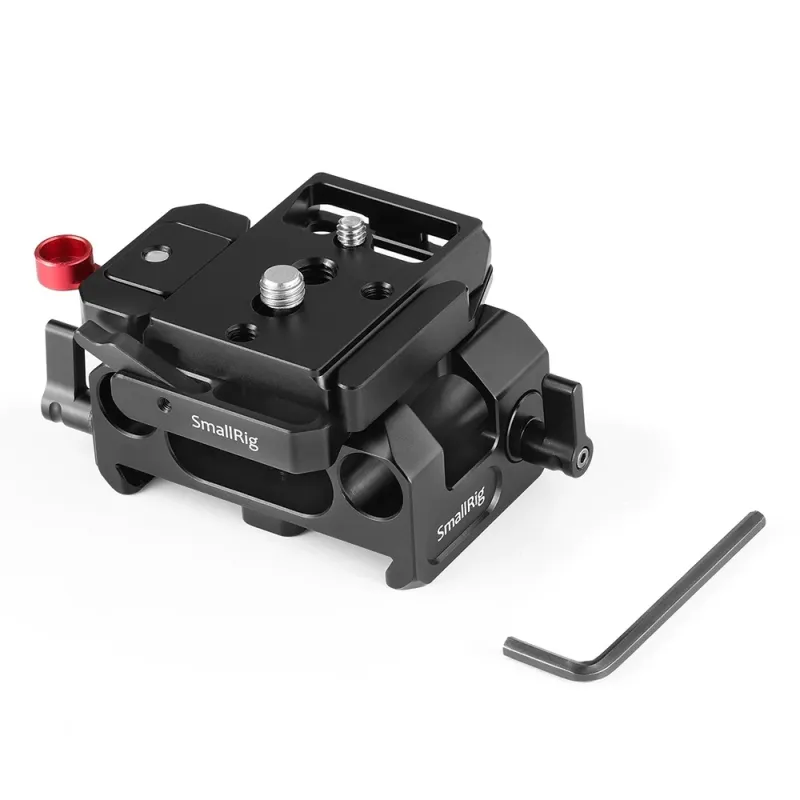

SmallRig Baseplate for BMPCC 4K (Manfrotto 501PL Compatible) 2266
Key Features:
1.A dedicated baseplate designed for BMPCC 4K;
2.Manfrotto 501PL compatible QR plate and receiver on the top and secured by a lever;
3.15mm rail support at 85mm rod height;
4.Arri standard dovetail on the bottom;
5.1/4’’-20 and 3/8’’-16 threaded holes on the bottom for attachment of other plates.

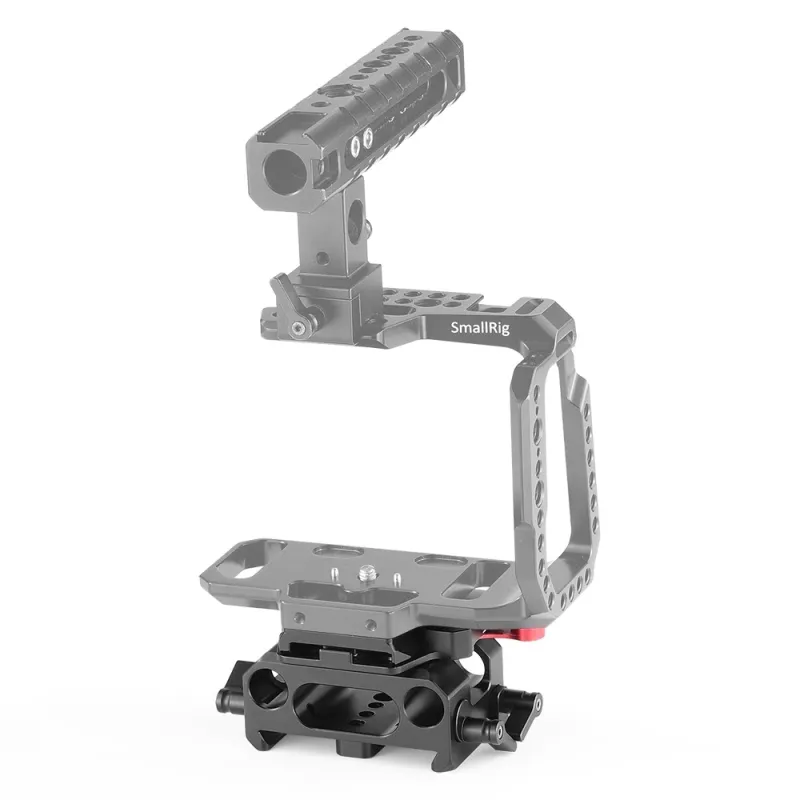

NOTE: If you prefer Arca compatible quick release on the top, please take a look at SmallRig Baseplate 2261. SmallRig Baseplate for Blackmagic Design Pocket Cinema Camera 4K (Manfrotto 501PL Compatible) 2266 is a dedicated baseplate that provides 15mm rail support at 85mm rod height. It is designed to work with SmallRig BMPCC 4K Cage 2203 and 2254. On the top are Mnafrotto compatible QR plate and receiver, where the cage can be quickly mounted. On the middle is 15mm rail clamp for SmallRig 15mm Rods 1053, where accessories like SmallRig Shoulder Pad Kit 2077, SmallRig Lens Support 2152, Matte Box, follow focus and SmallRig Shoulder Rig Handle Kit 998 can be attached. It comes with an integrated ARRI dovetail on the bottom which can directly mount to SmallRig ARRI Standard Dovetail Plate 1463. Additionally, there are multiple 1/4 and 3/8 threaded holes on the bottom of the baseplate so other tripod plates could be attached. Designer: Yetta White Compatibility: Blackmagic Design Pocket Cinema Camera 4K SmallRig cage 2203 SmallRig cage 2254

Package Includes:

• 1 x base plate
• 1 x hex key

• Package dimensions: 108 x 73 x 51.5 mm
• Package weight: 388 g
• Material(s): 125 x 108 x 90 mm
• Net weight: 321 g
• Aluminum alloy
