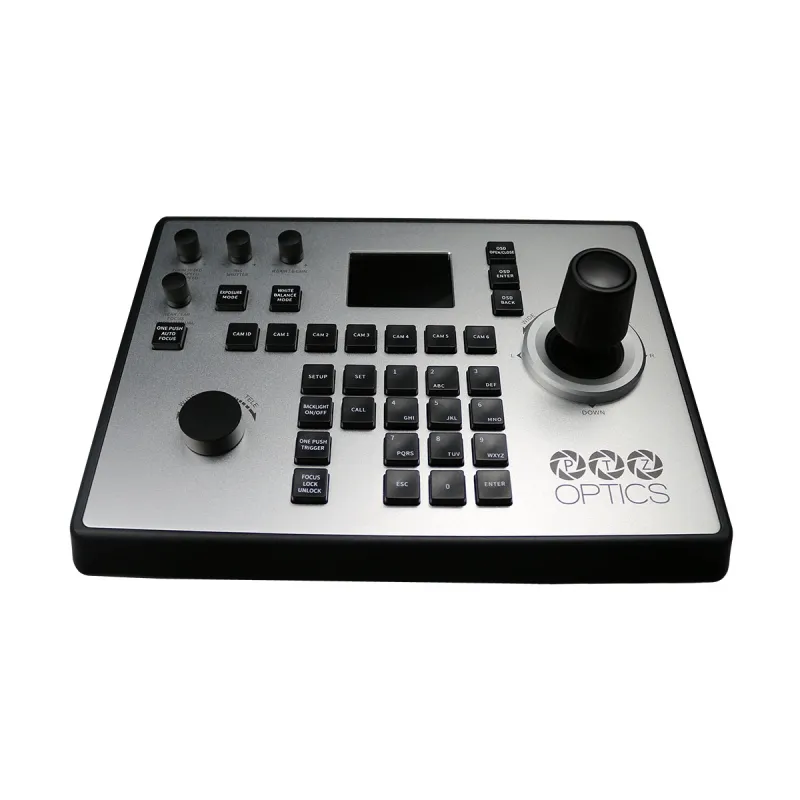

PTZOptics 4D IP Joystick Controller (G4) PT-JOY-G4

PTZOptics 4th Generation IP Joystick Controller

The PT-JOY-G4 is a versatile controller compatible with most PTZ cameras, offering easy integration into existing production systems. It features a web user interface for quick setup and the ability to switch between protocols effortlessly.

Key Features

• Operate cameras in various modes
• Access and recall preset locations
• Control settings like white balance and shutter speed
• Web-based and smartphone app control

Benefits

• VISCA over IP or Serial Control
• Full Pan, Tilt, Zoom Camera Control
• Fine Tune Focus Control
• Focus Lock and Unlock
• LCD Screen with Controller Status
• Direct Exposure, White Balance, Red & Blue Gain Control

Specifications

• Connections: RS-232, RS-485, RS-422, RJ-45
• Maximum Cameras: 255 via network, 7 via serial VISCA
• Recommended Maximum Distance: Varies for different connections
• Baud Rate: 1200 - 19200 bps
• Power: 6W (12VDC) / PoE (802.3af)
• Working Temp: 14°F - 122°F (-10°C - +50°C)
• Working Humidity: 10 - 90 (non-condensation)
• Weight: 4.45 lbs (2.02 kg)
• Dimensions: 11.938 W x 9.25 D x 4.25 H (in.) / 303.23 W x 234.95 D x 107.95 H (mm)
• Warranty: 2 Years
