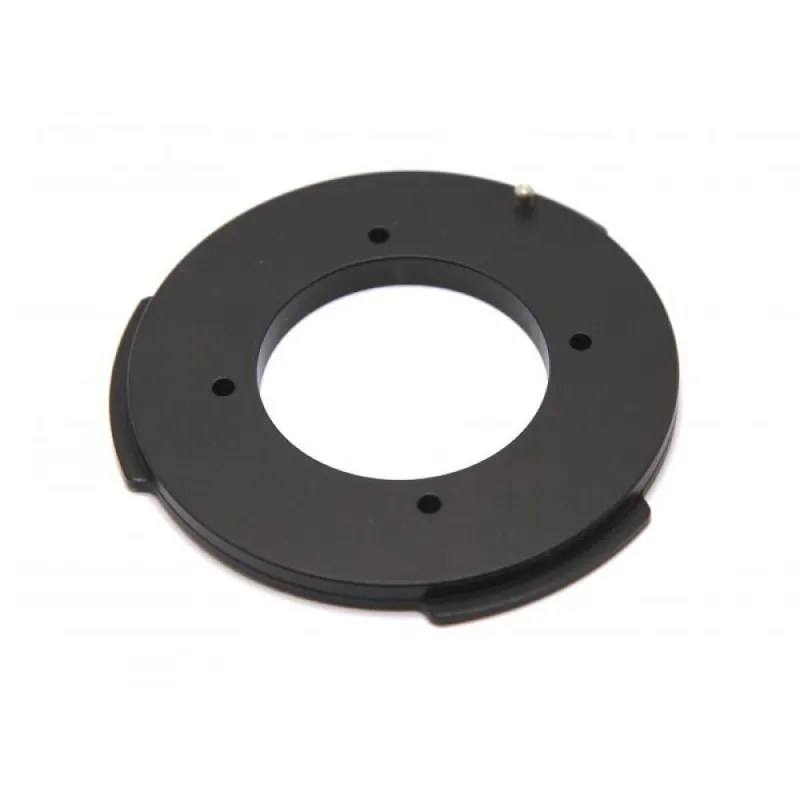

MTF Fuji MK Lens Conversion from E to Sony FZ Mount Adaptor (MTFUJIFZ)

MTF Fuji MK Lens Conversion from E to Sony FZ Mount Adaptor (MTFUJIFZ)

Since the launch of Fujinon's MK lenses in February 2017, users have continued to request a greater range of mounts beyond the native E-Mount that can be found on the 18-55mm and 50-135mm lenses. MTF has now addressed these requests and has designed brand new solutions to convert the lenses to Micro four thirds and FZ mount systems.

• Conversion from E-mount lens only
• Precision-manufactured FZ Mount made from aircraft-grade aluminum
• Black anodized for durability

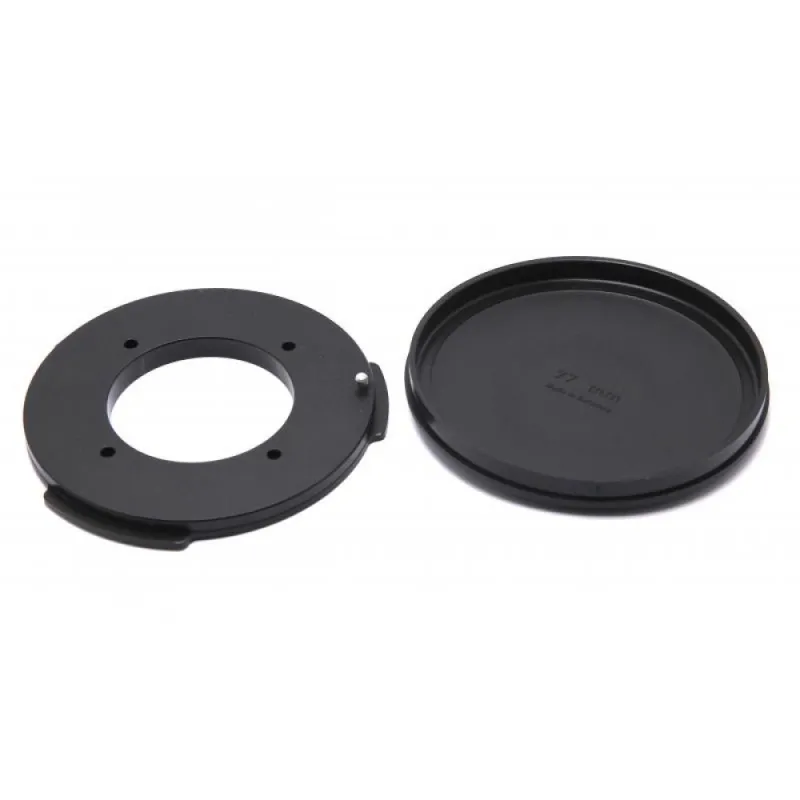

• Push-on cap is supplied

Camera Reference

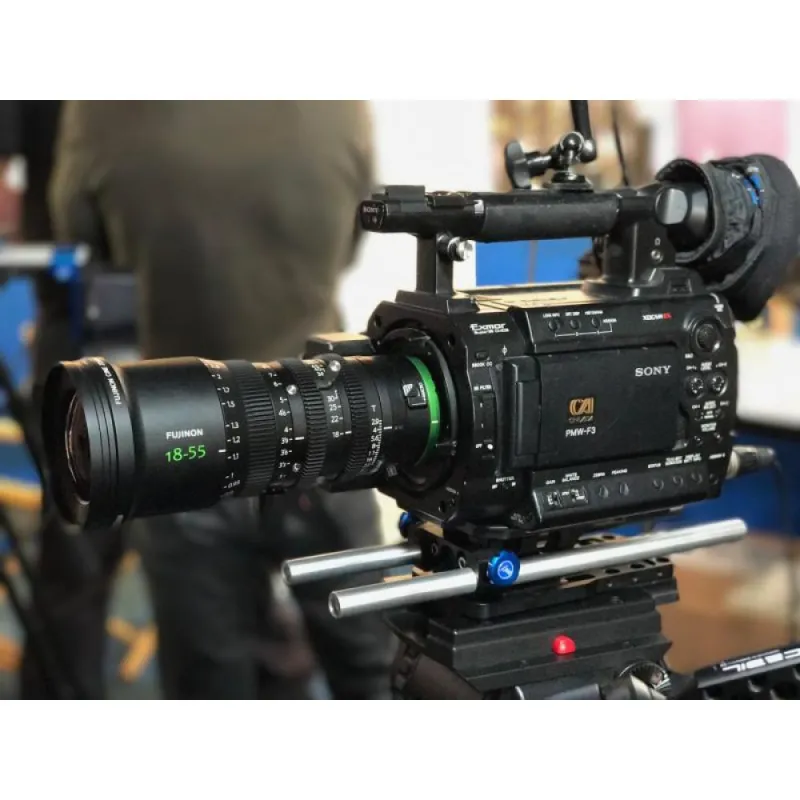

Sony PMW-F3
Sony PMW-F5
Sony PMW-F55

Camera Mount Reference

Sony FZ-Mount

Lens Fit Reference

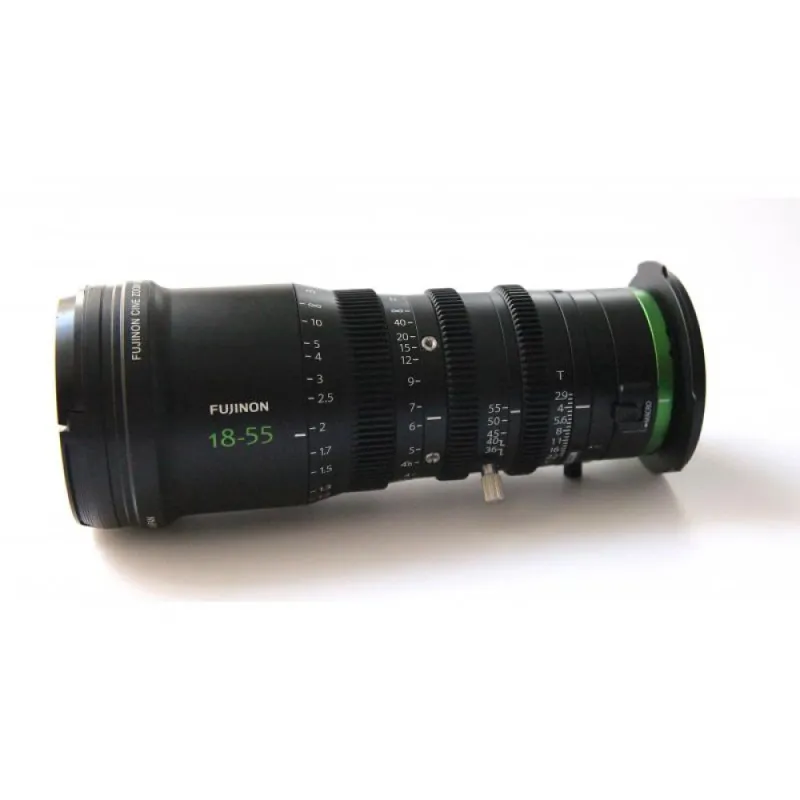

Fuji MK lens

Fitting Instructions

Remove the 4 screws from the existing E mount. (being careful not to lose or damage the screws)
Gently lift off the E mount.
Any shims under the E mount should be left in place.
Carefully fit the new FZ mount with the location pin at the 12 o'clock position.
Fasten with the original 4 screws.
Once fitted, check the lens back focus as usual (it should already be correct but may need minor adjustment)

In the Box

MTF Fuji MK Lens Conversion from E to Sony FZ Mount Adaptor

Specifications

Spec Build Quality

HE30 aluminum body
Black anodized

Weight

100 g
