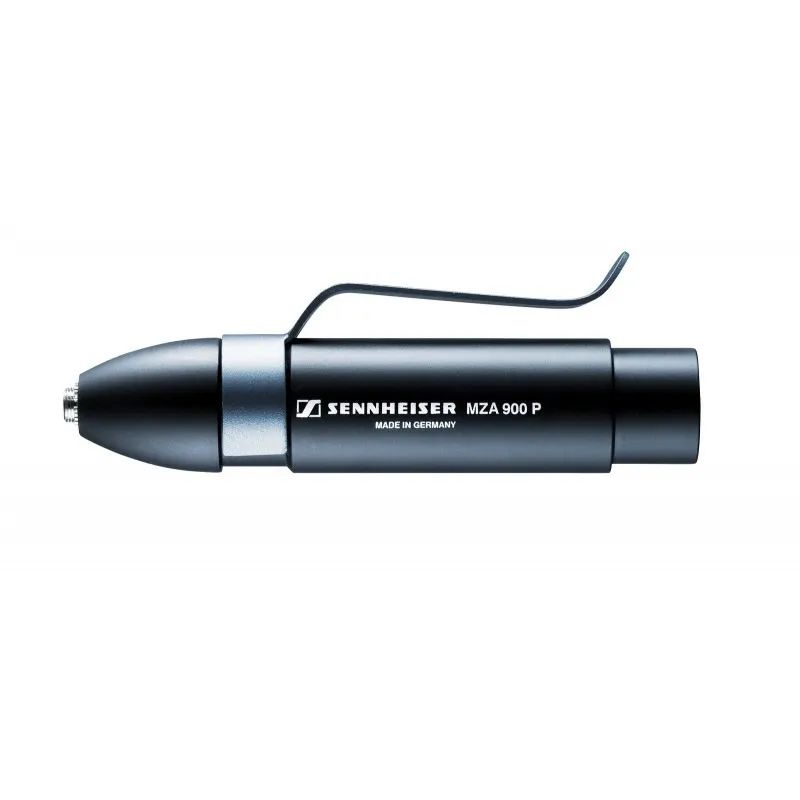

Sennheiser MZA 900 P Microphone Preamplifier Adapter (Phantom Power)

Adapter (microphone preamplifier) for connecting miniature condenser microphones directly to a mixing console or camera with Phantom power supply (12 - 48 V).

Adapter (microphone preamplifier) for connecting miniature condenser microphones directly to a mixing console or camera with Phantom power supply (12 - 48 V). It is designed for microphones with 3.5 mm jack connector.

Features

• Rugged metal housing
• Switchable attenuation (0/- 12 dB) and bass filter (125 Hz (- 3 dB), 12 dB/oct)
• Two-color indicator LED (Phantom power, peak signal level)
• XLR-3 M output connector
• Can also be used for measuring microphone cables

Package contents

• MZA 900 P including special belt clip
• Instructions for use

Frequency range 20 Hz - 20 kHz (-1 dB) Weight 60 g Power supply Phantom 10 - 52 V Input connector NF jack 3.5 EW Output impedance symmetrical 100 Ohms Output connector NF XLR3-M, Microphones by type Accessories
