Amaran F22c EU LED Flexible Lights 60x60cm 240W RGBWW w softbox & grid

Key Features

• Panel Surface Area 2 x 2'
• Color Temperature 2500-7500K
• HSI Full Color Control
• Green-Magenta Adjustment
• 15 Built-In Lighting FX, 46 Gel Presets
• CRI 95, TLCI 98, CQS 96
• 200W Output
• 0-100 Dimming, DMX Control
• Multi-Voltage AC, V-Mount Battery
• Softbox Frame with Two Diffusers & Grid

Product Overview

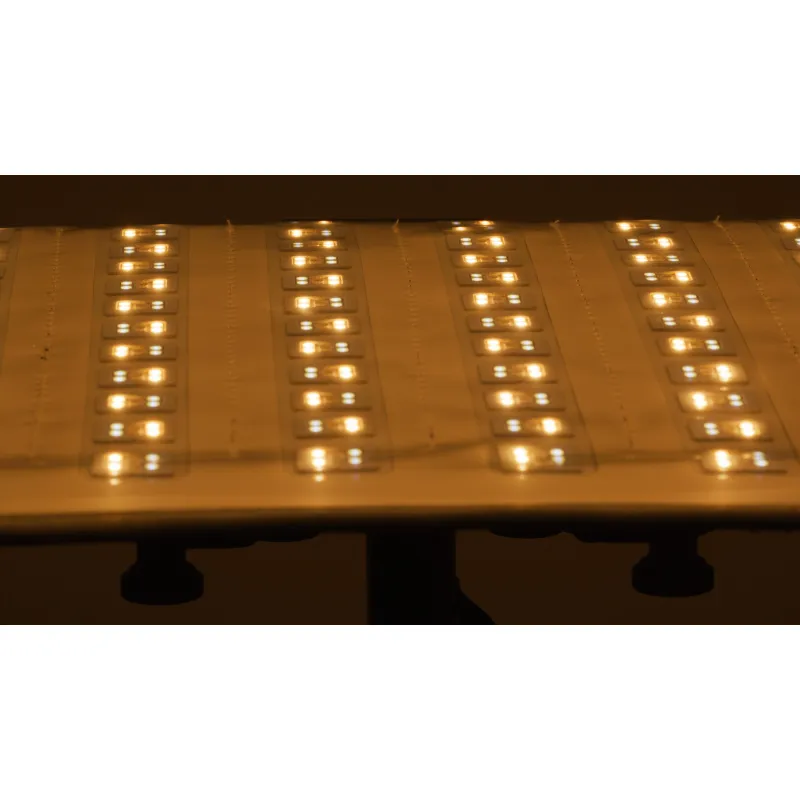

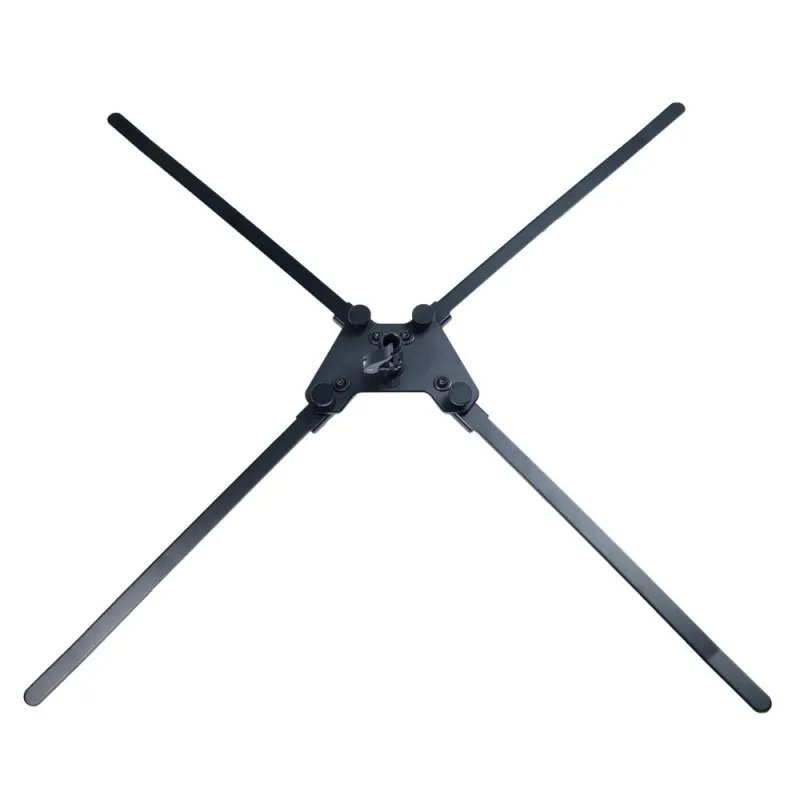

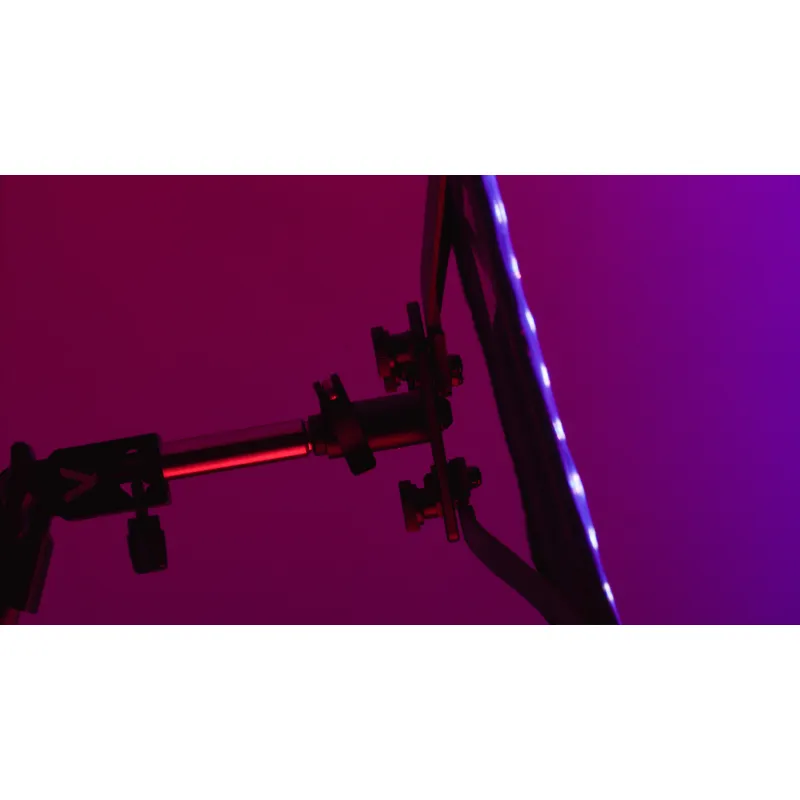

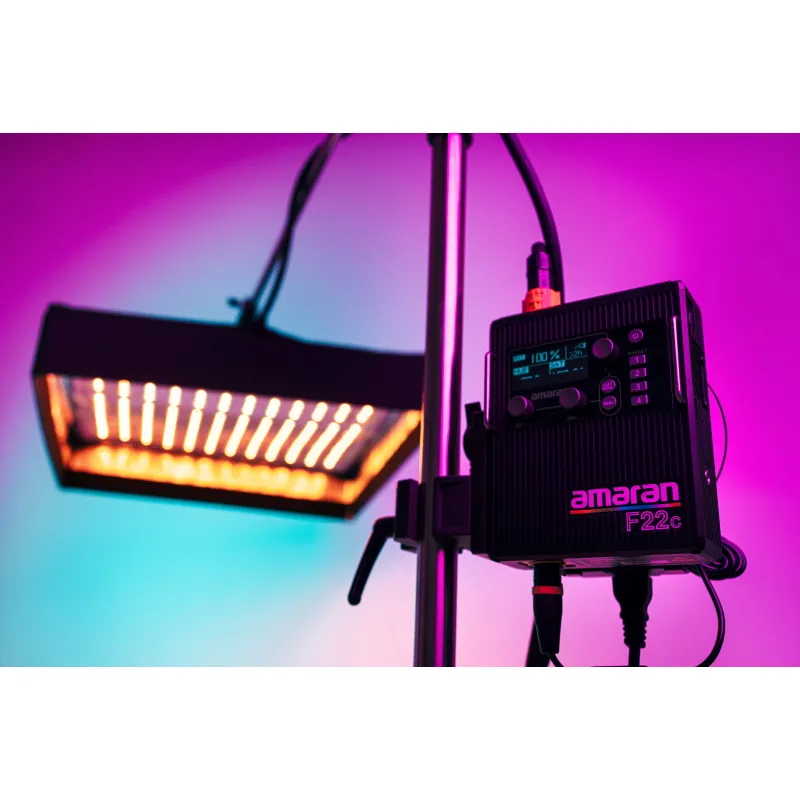

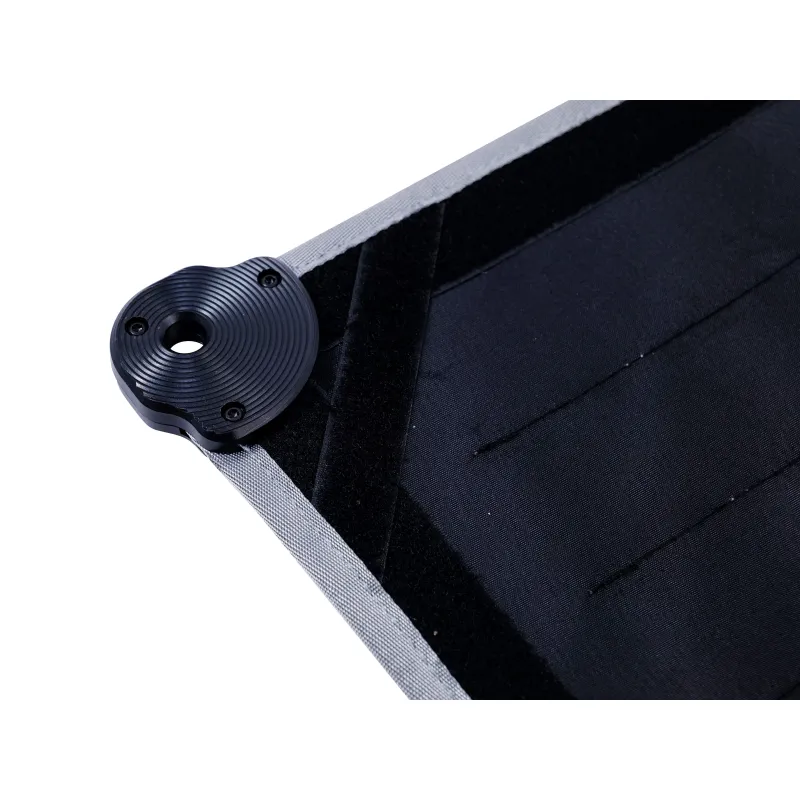

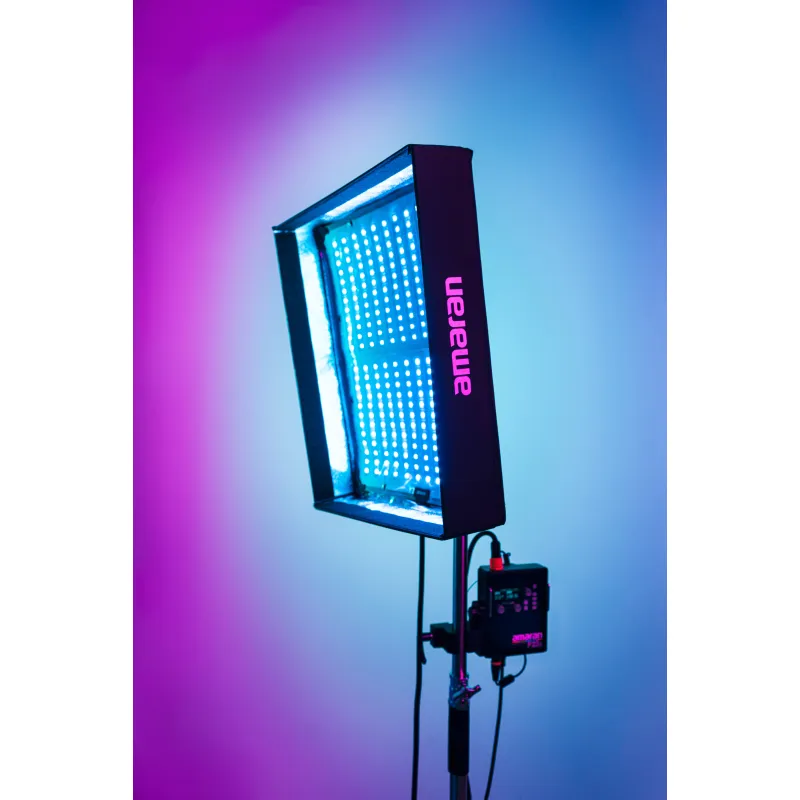

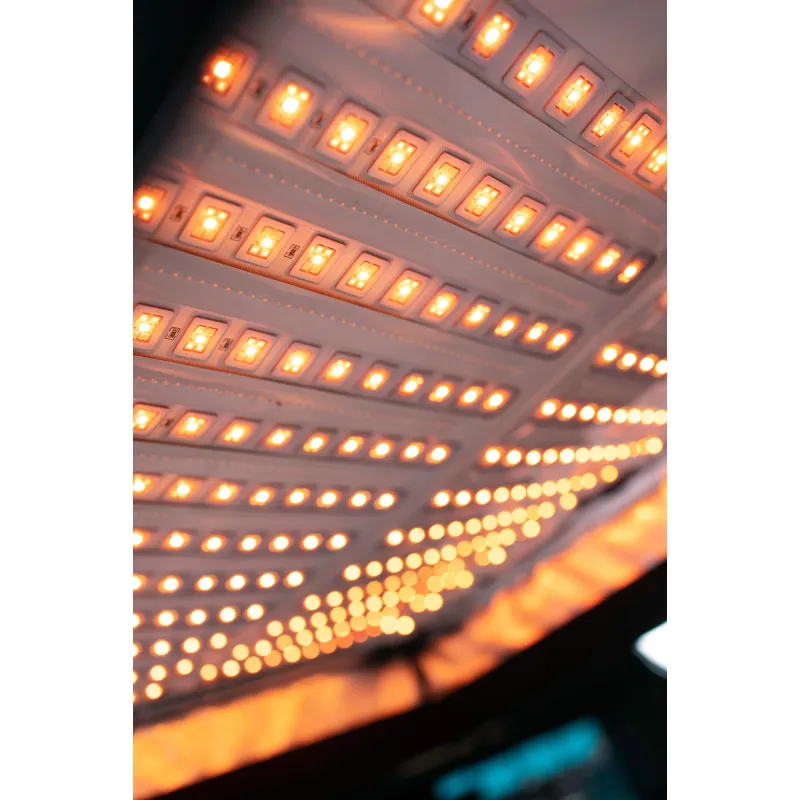

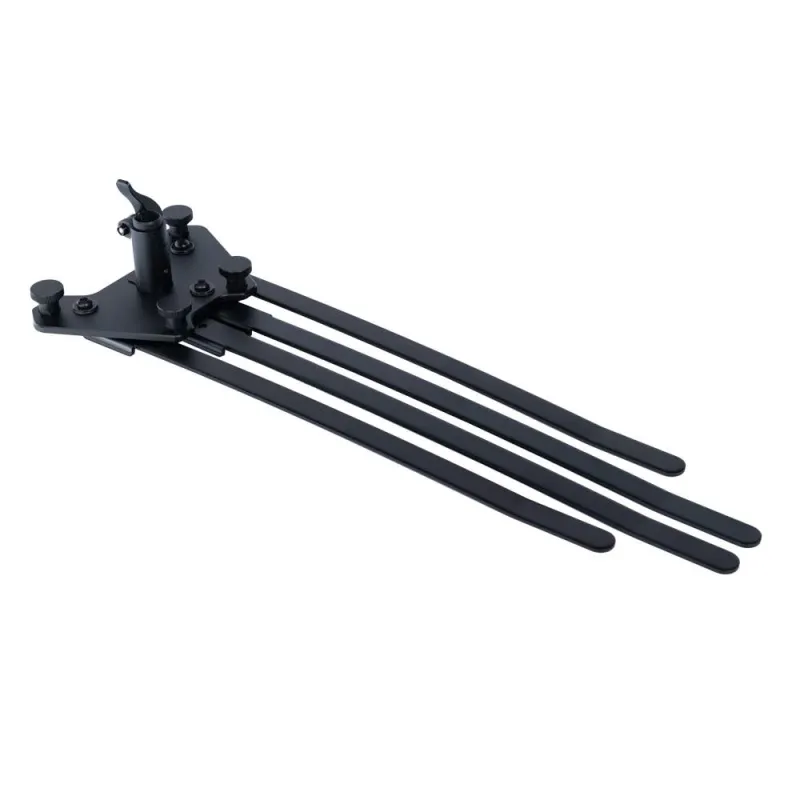

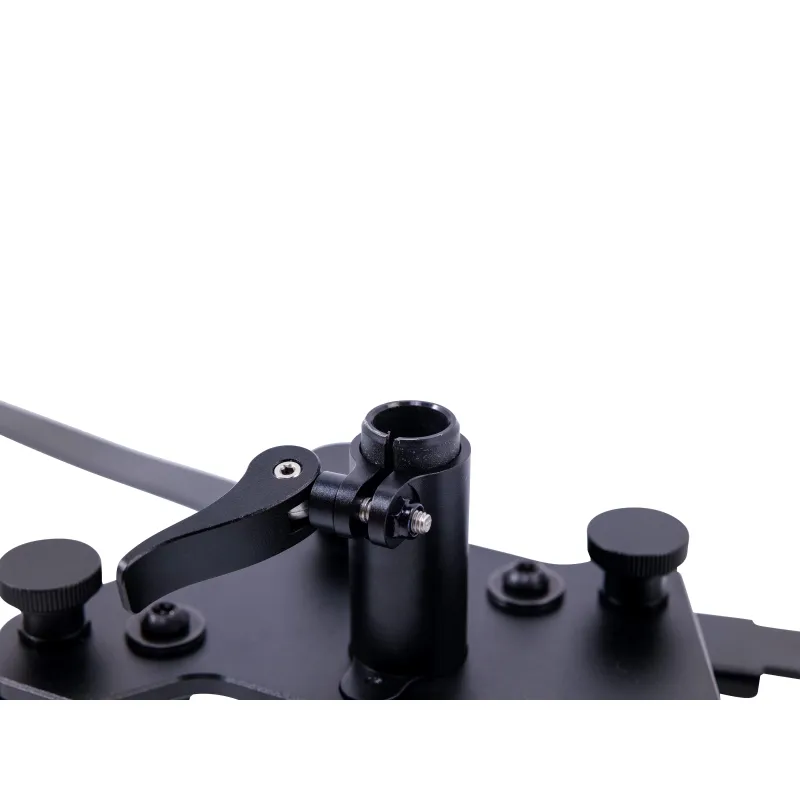

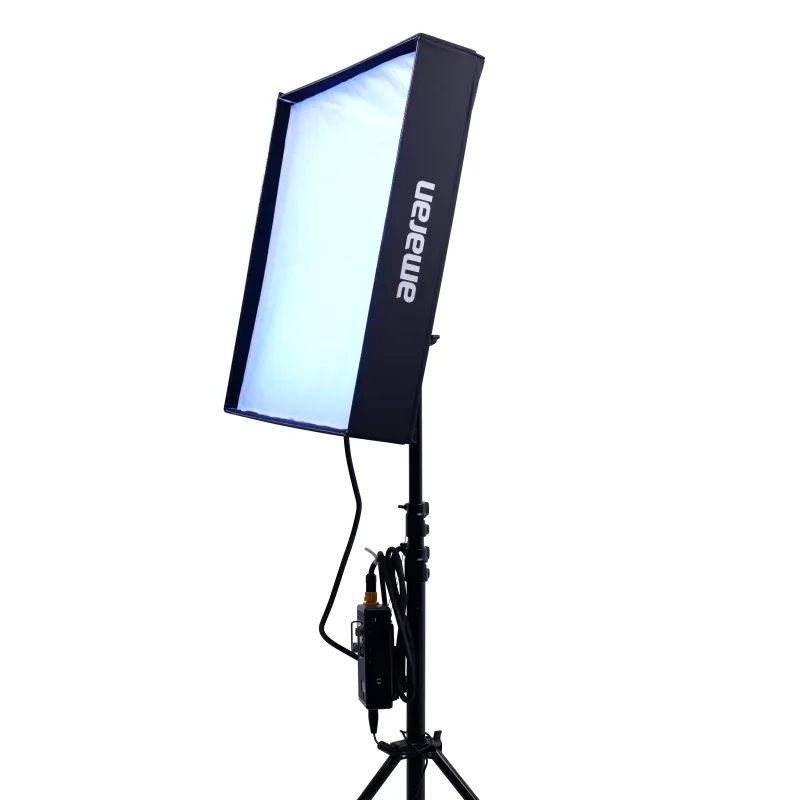

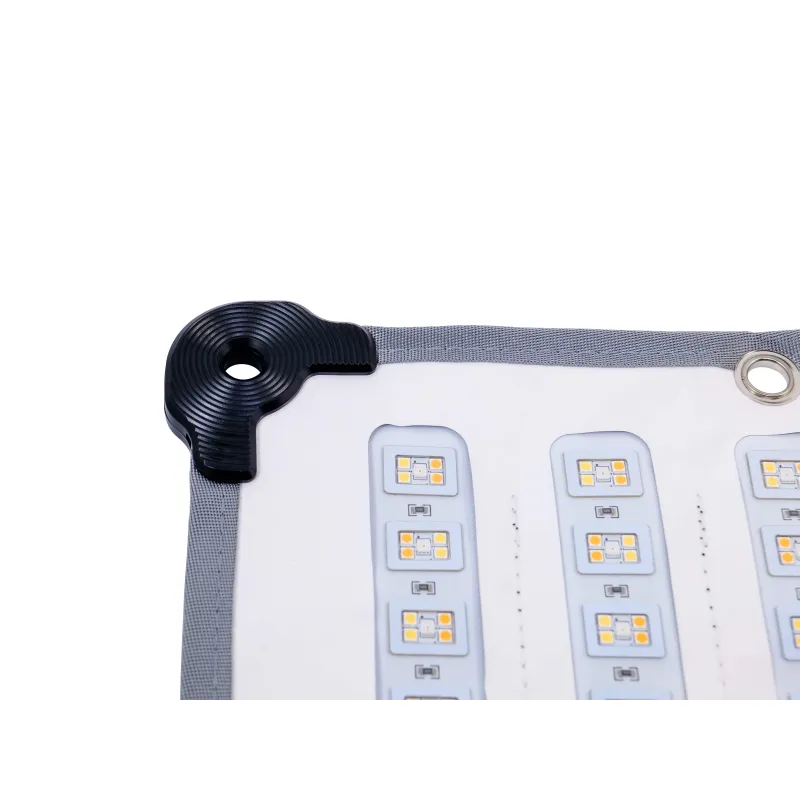

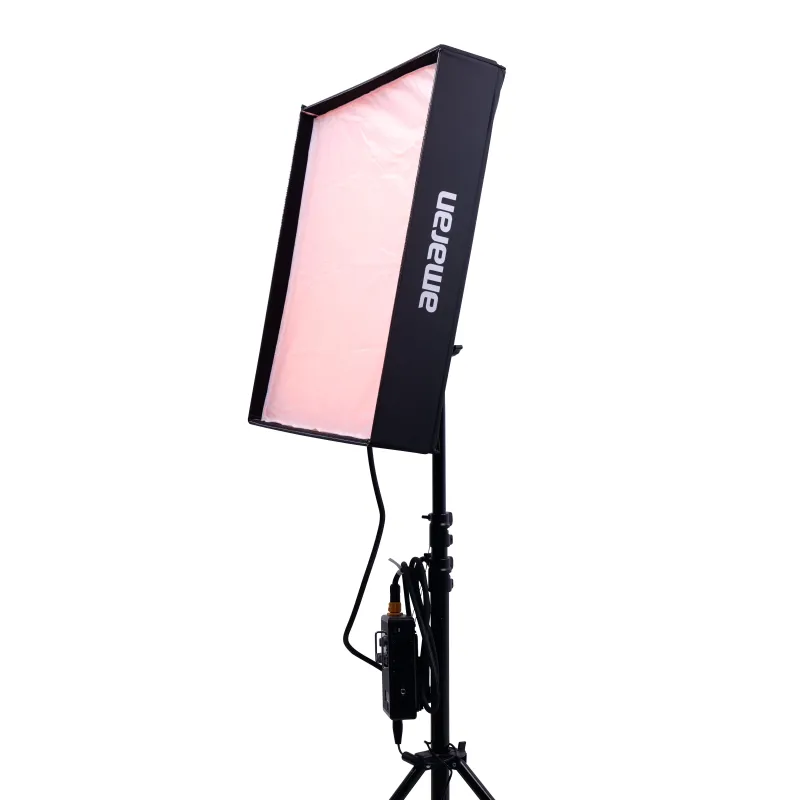

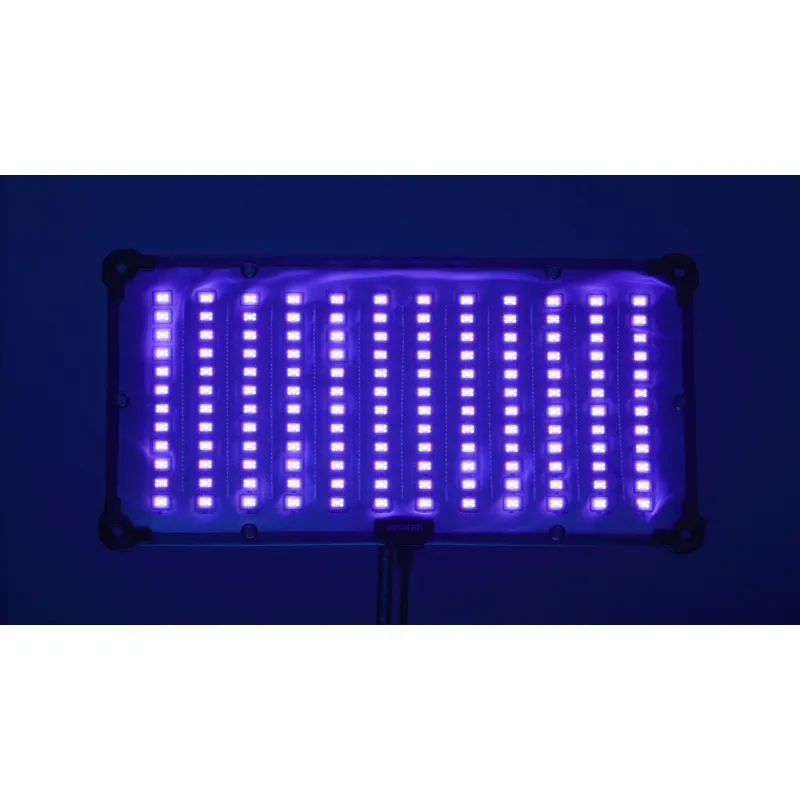

The F22c RGBWW LED Mat from amaran is a powerful, versatile, and flexible LED mat that measures 2 x 2'. It offers outstanding light output and color rendering suitable for a variety of users, from filmmakers to videographers, content creators, and still photographers. Providing 200W of power, it features RGBWW LEDs for complete color control, as well as tunable CCT from 2500K to 7500K, providing endless possibilities for creative lighting selections through 360 HSI control, 46 color gel presets, and 15 unique customizable lighting effects. It has stellar CRI and TLCI scores of 95+ and 97+, and stepless dimming from 0 to 100. An included folding X-frame stretches the mat to a rigid panel that can be attached directly to a C-stand grip head using the straight Baby Pin adapter, or onto any standard light stand with the included right angle Baby Pin and tilting stand mount. The included foldable softbox has two strengths of diffusion, and a fabric grid that uses an integrated hook-and-loop fabric to instantly turn this flexible mat into an ultrathin soft light that will add beautifully controlled soft light to a scene.

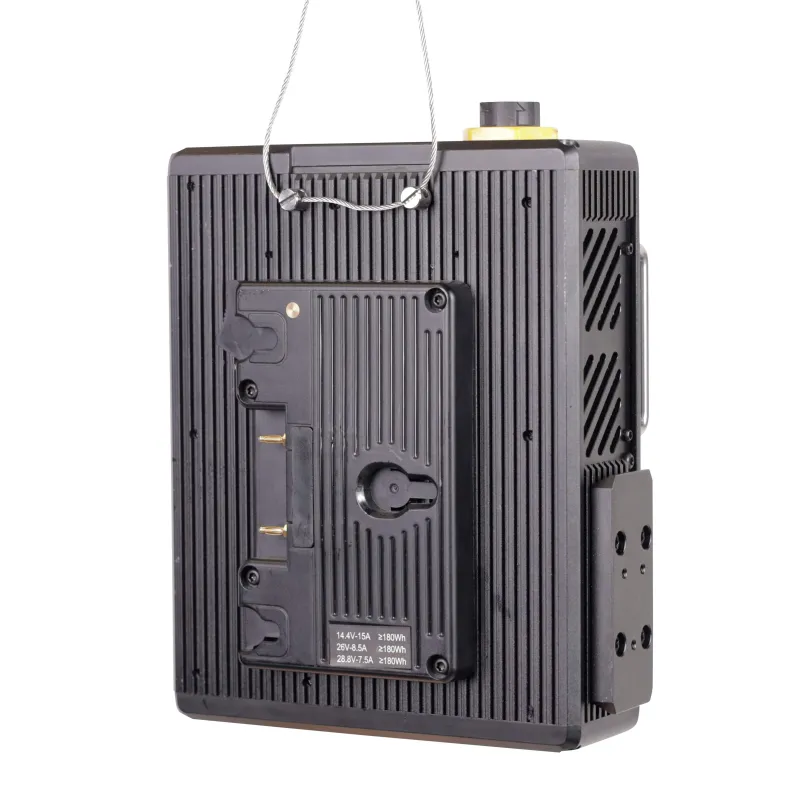

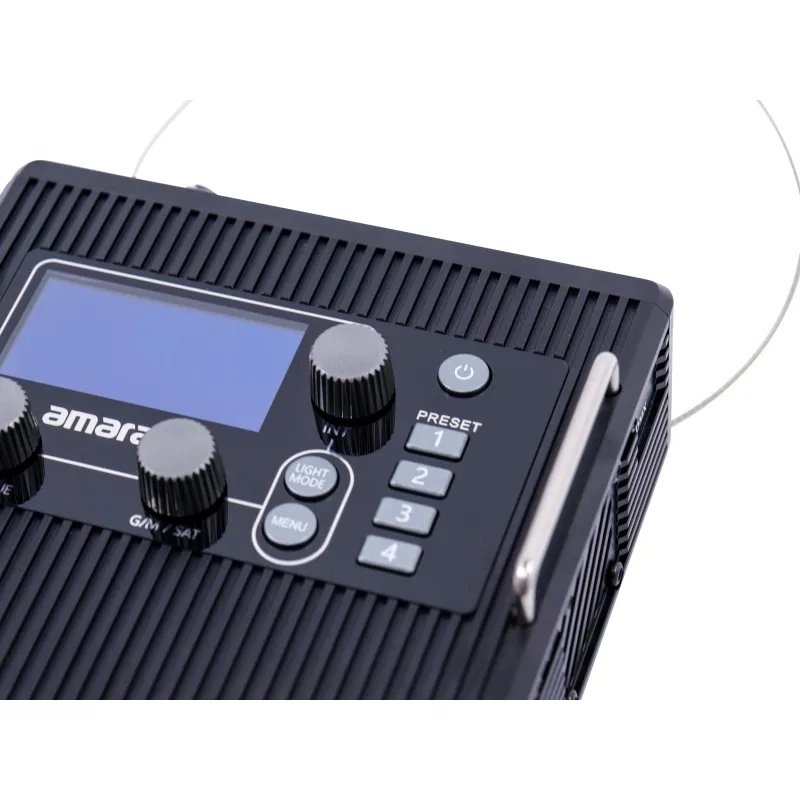

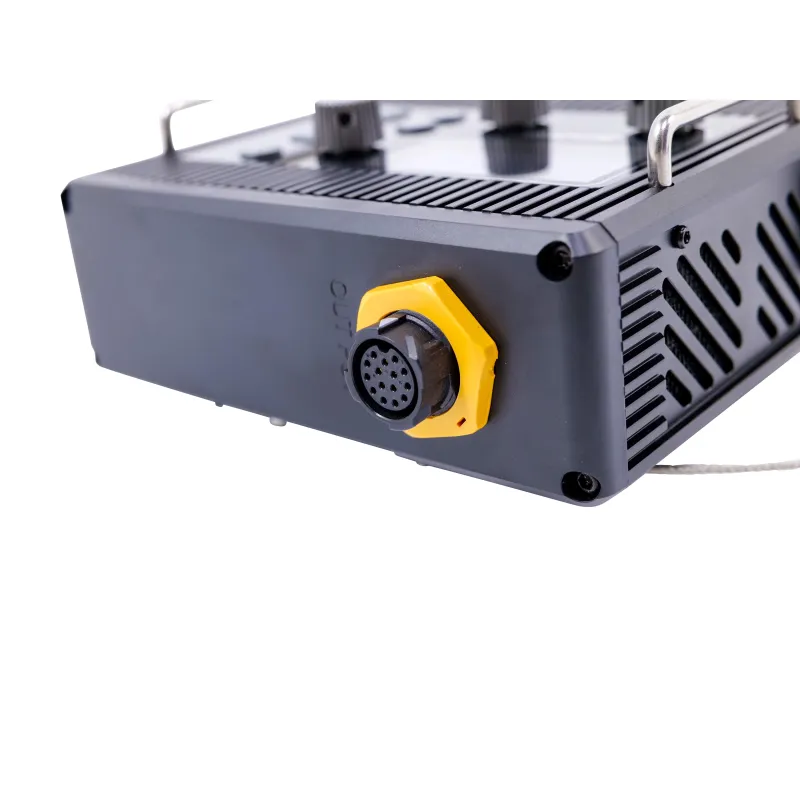

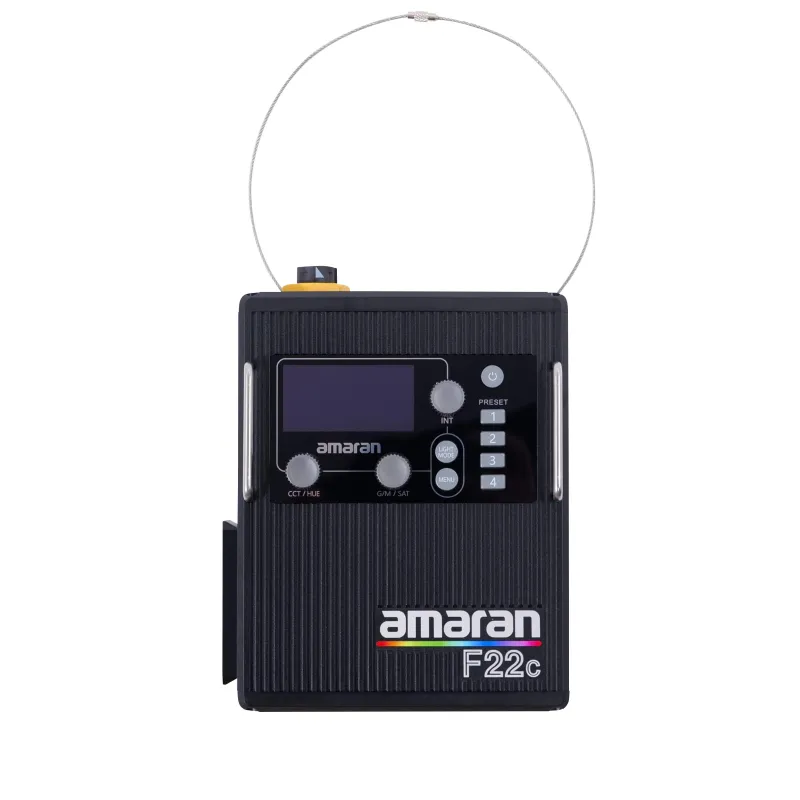

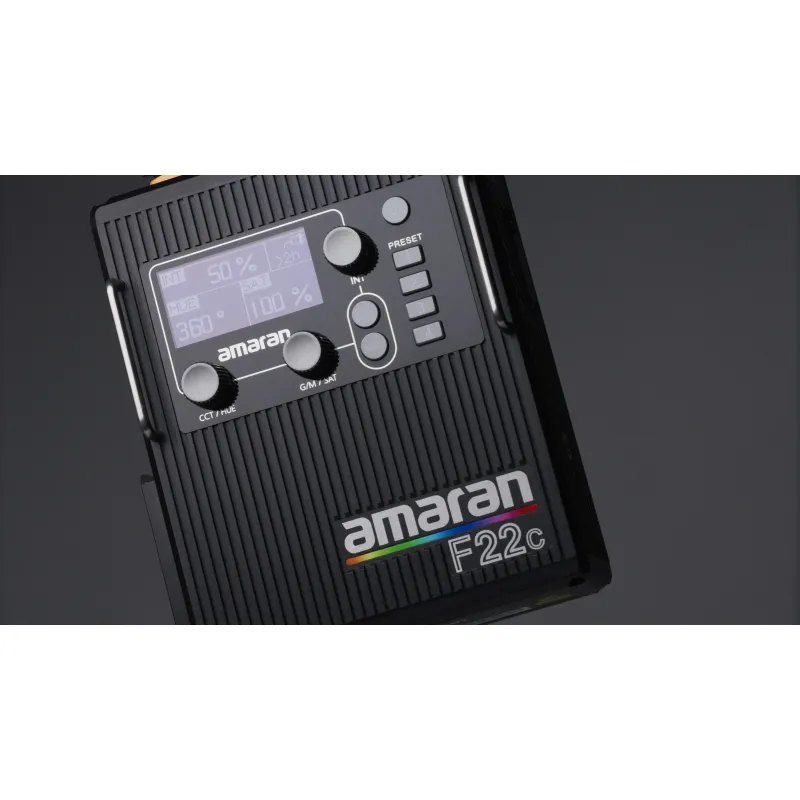

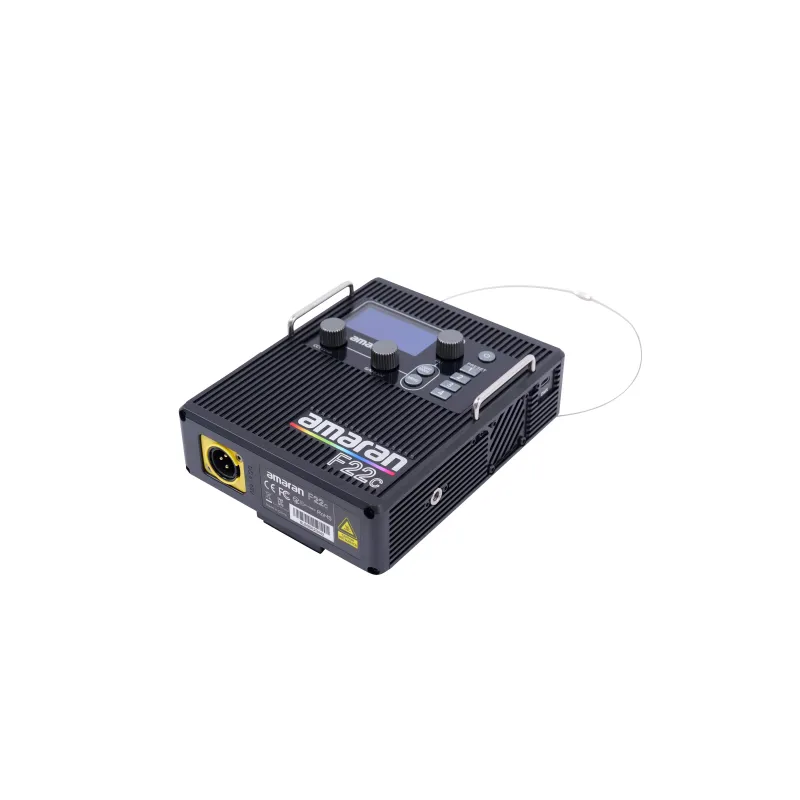

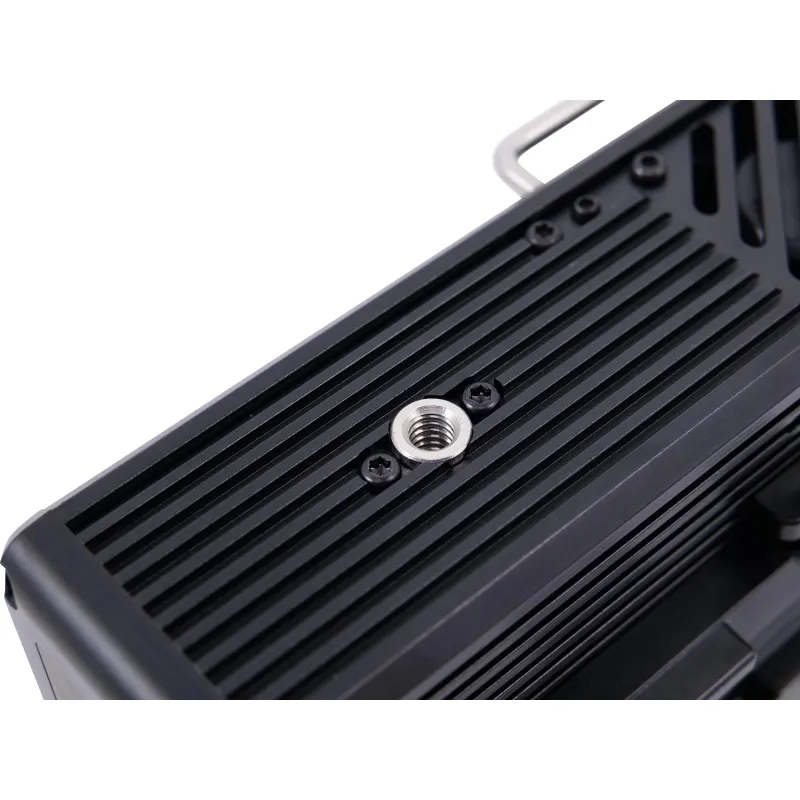

The control box is a multi-voltage AC power supply that features a V-mount battery plate for use with compatible 14.4V, 26V, or 28.8V batteries. Full output can be achieved when using the AC power supply, using batteries allows the F22c to be used at either half or full power, depending on battery strength.

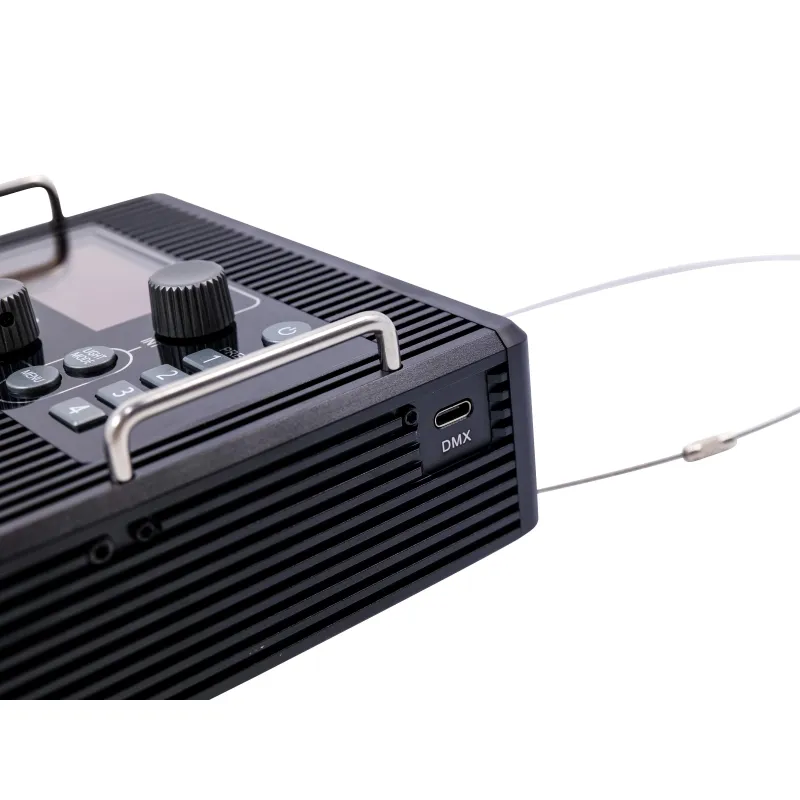

The free Sidus Link app makes it possible to utilize tools unique to the Aputure and amaran ecosystems, such as Source Match, Color Picker, and Custom FX. The F22c can also be controlled using DMX with a separately available USB-C to 5-Pin DMX512 in & out adapter cable, adding professional-level control to an individual unit or groups of lights. The amaran F22c is ideal for videographers who need a versatile and literally flexible lighting solution. The RGBWW flexible panel gives users unmatched strength and control over a wide, expanded CCT range to match a variety of white light environments.

In the Box

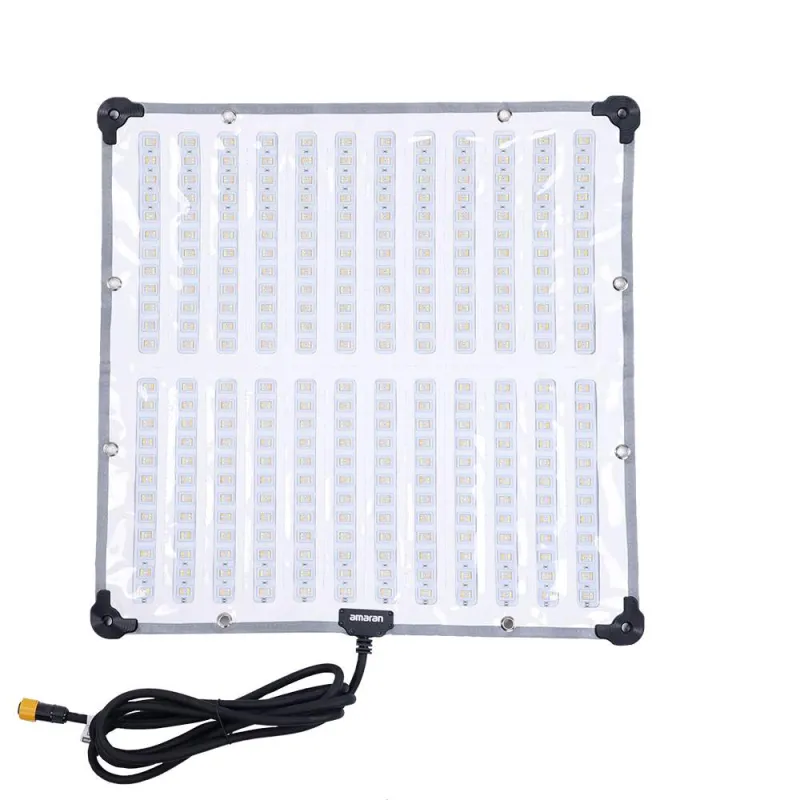

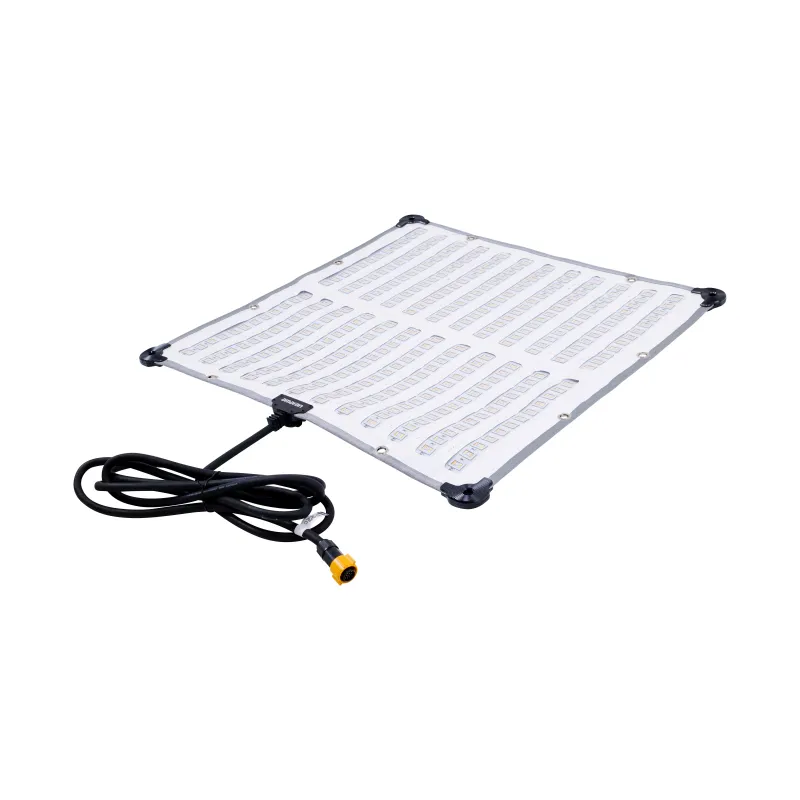

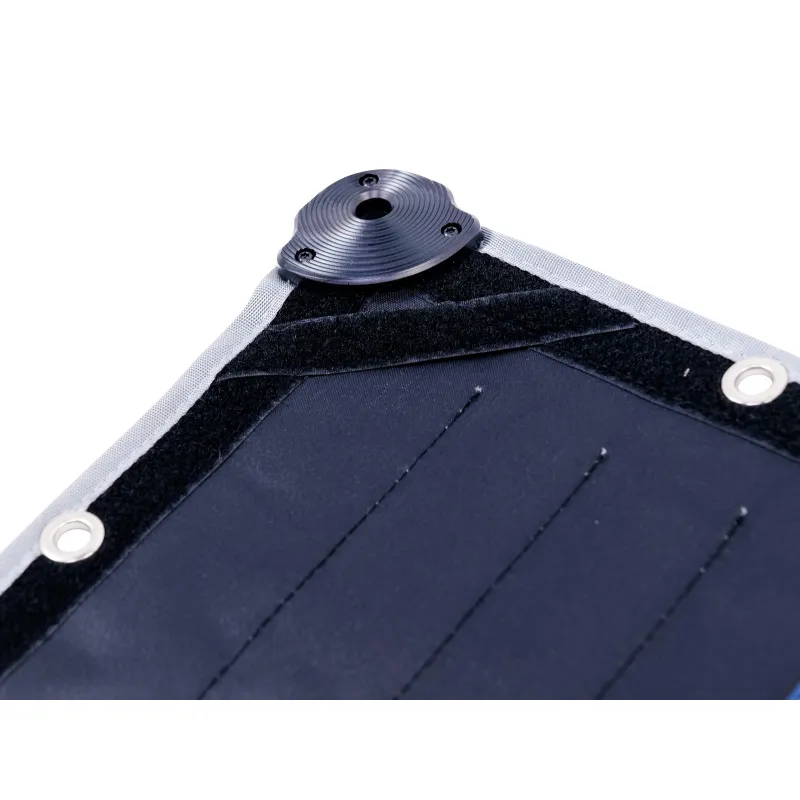

• amaran F22c RGBWW LED Mat (V-Mount, 2 x 2')
• Control Box with V-Mount Battery Plate

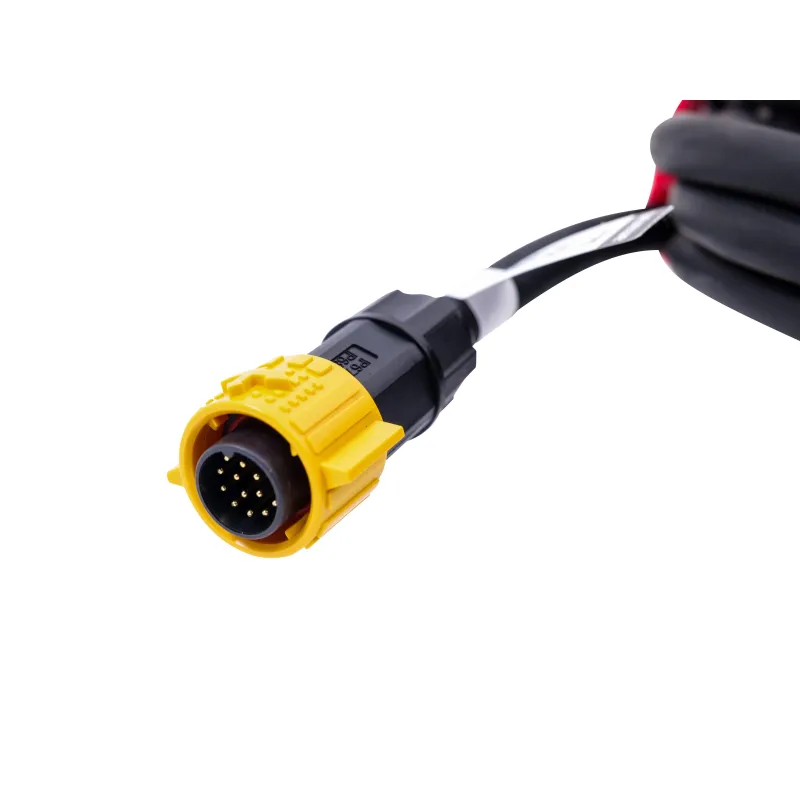

• 9.8' Head Extension Cable
• Support Bracket
• Right-Angle Baby Pin Adapter

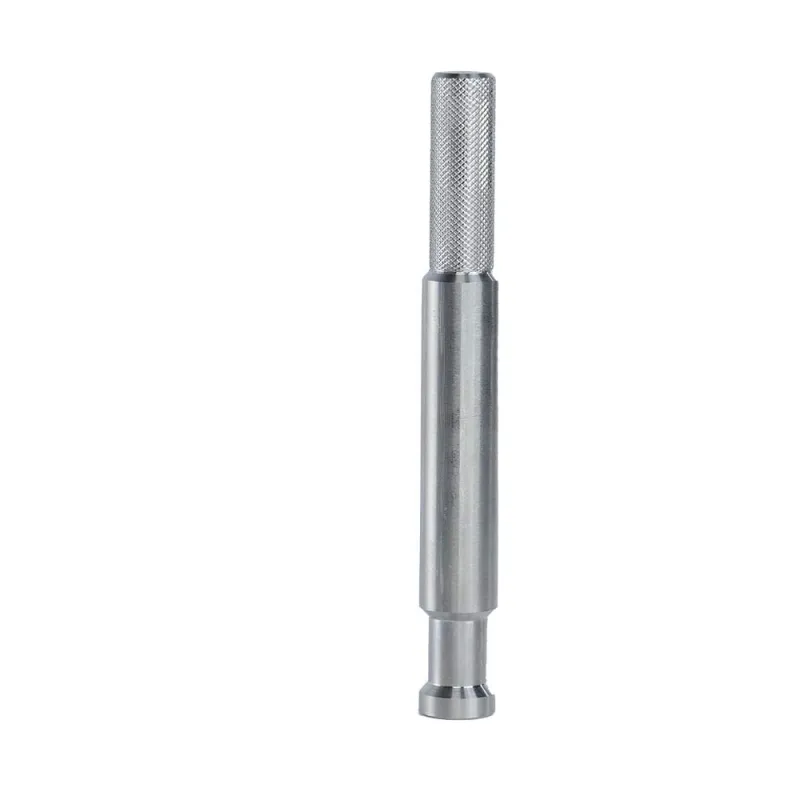

• Straight Baby Pin Adapter

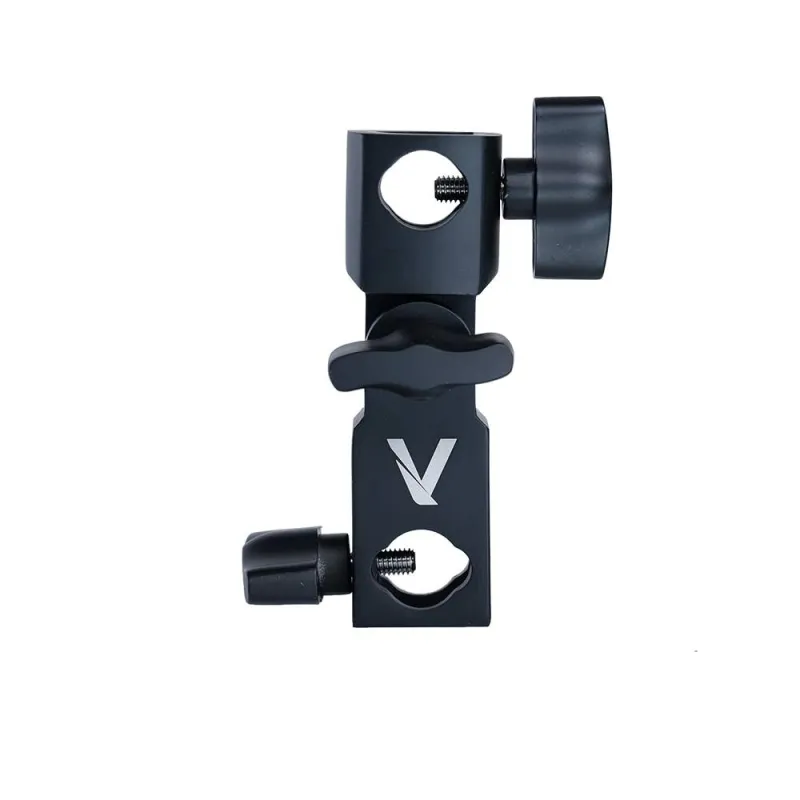

• Tilting Stand Mount
• F22 Softbox Frame
• F22 Diffusion Cloth 1 (1/2 Grid Cloth)
• F22 Diffusion Cloth 2 (2.5 Stop)

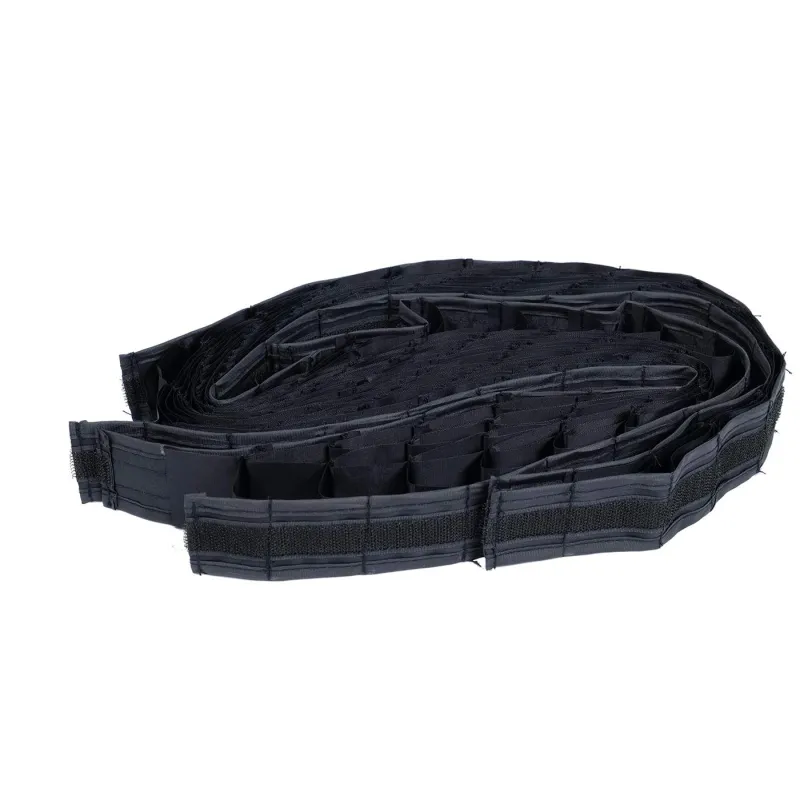

• F22 45 Light Control Grid

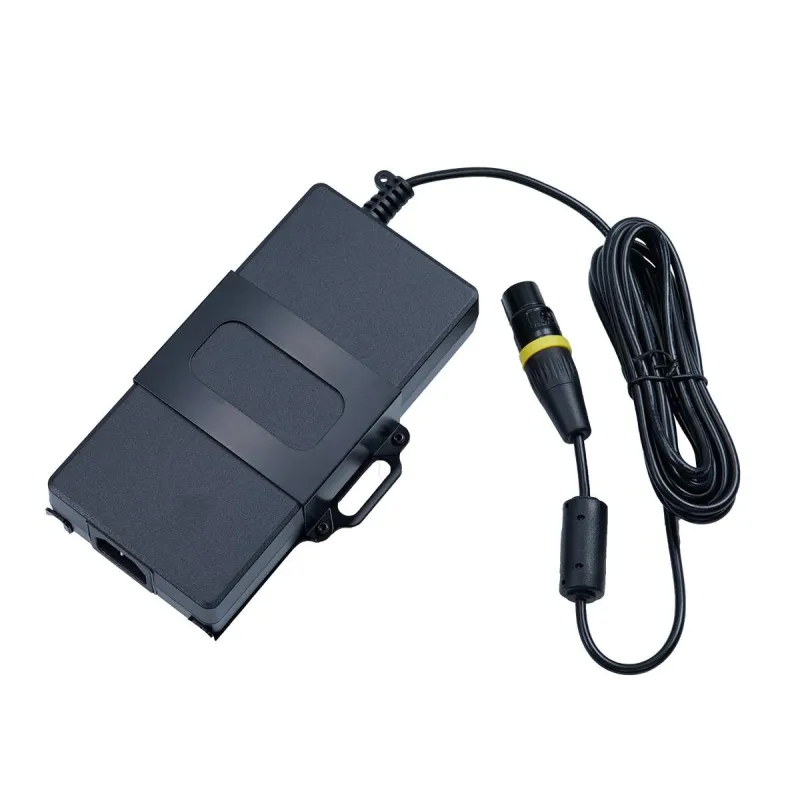

• Multi-Voltage AC Power Supply
• AC Power Cable

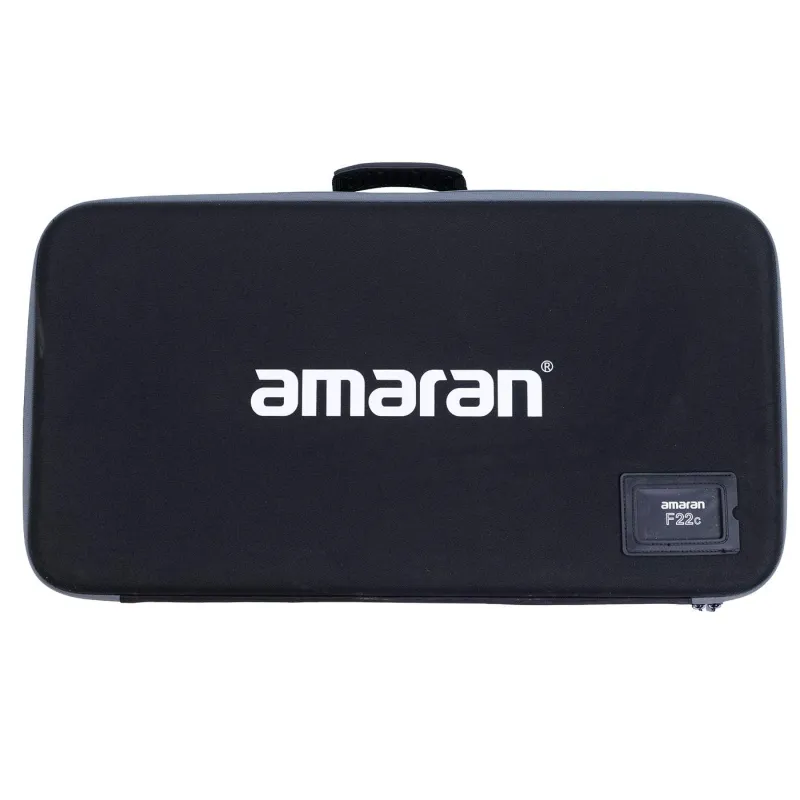

• Carrying Case

Specifications

Light Fixture

• Photometrics:
  • 2500K: 1675.9fc / 18,040Lux at 1.6' / 0.5m
  • 3200K: 1742.8fc / 18,760Lux at 1.6' / 0.5m
  • 4300K: 1832fc / 19,720Lux at 1.6' / 0.5m
  • 5600K: 1975.1fc / 21,260Lux at 1.6' / 0.5m
  • 6500K: 2067fc / 22,250Lux at 1.6' / 0.5m
  • 7500K: 2159.9fc / 23,250Lux at 1.6' / 0.5m
• Color Temperature: 2500 to 7500K
• Color Modes: RGBWW
• Color Accuracy Standard: CRI95, TLCI98, CQS96, SSI83 at 5600K
• Cooling System: Passive
• Dimming: Yes, 0 to 100 (Continuous)
• Display: OLED
• Housing Material: Plastic
• Expected Lamp Life: 50000 Hours
• Rectangular Panel Size: 23.6 x 23.6" / 60 x 60cm
• Fixture Dimensions: 23.6 x 23.6 x 0.2" / 60.0 x 60.0 x 0.5cm
• Fixture Weight: 1.94lb / 0.88kg

Connectors

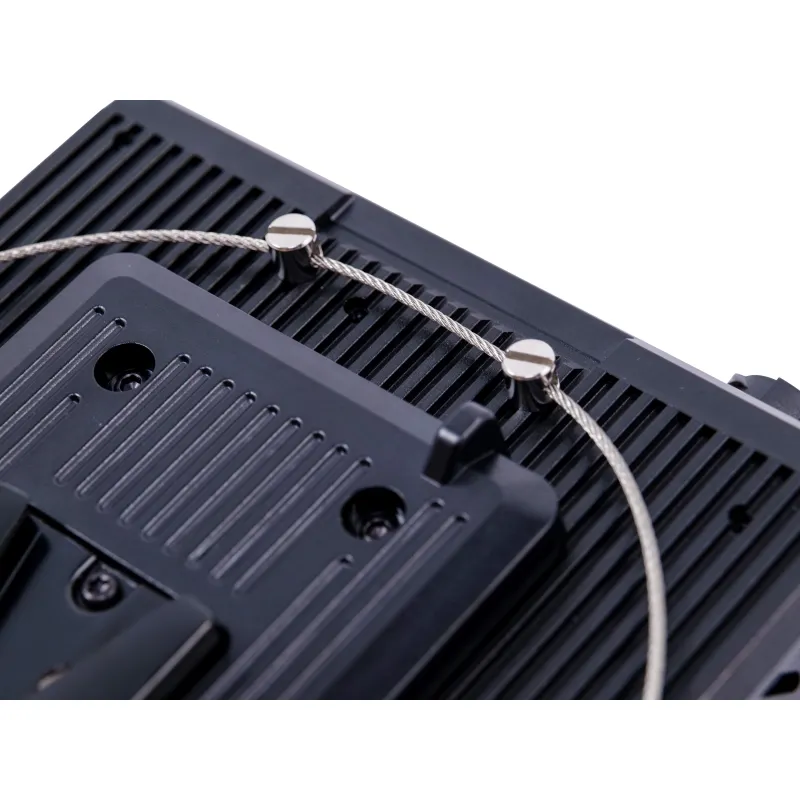

• Battery Plate: 1 x V-Mount

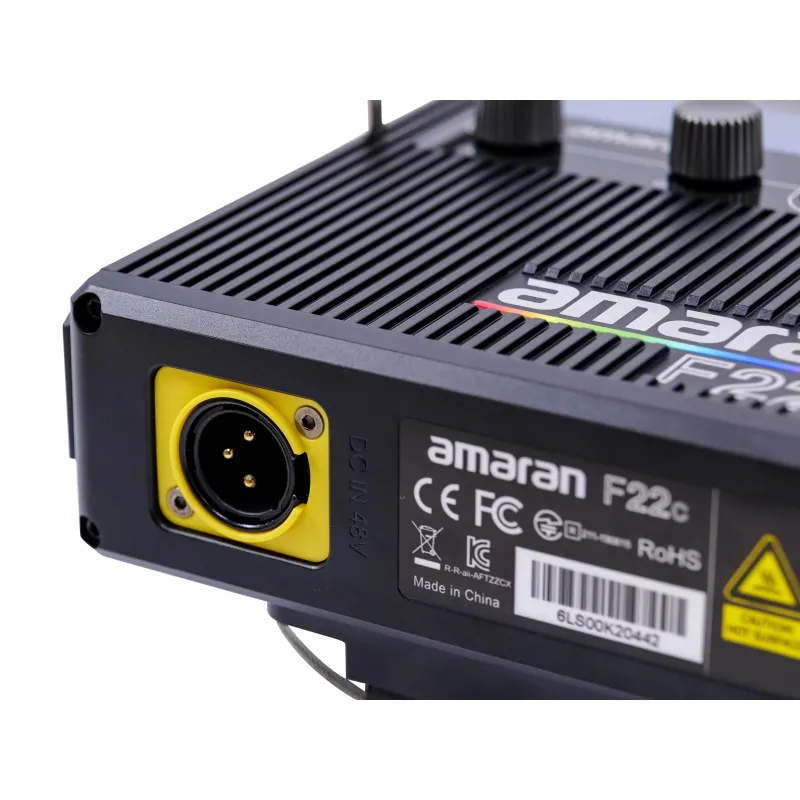

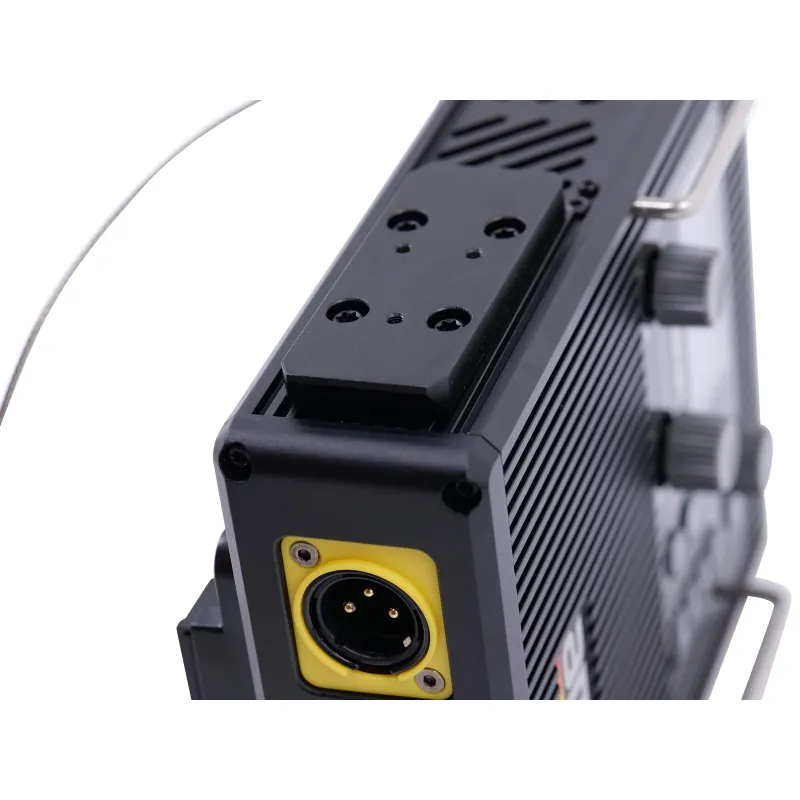

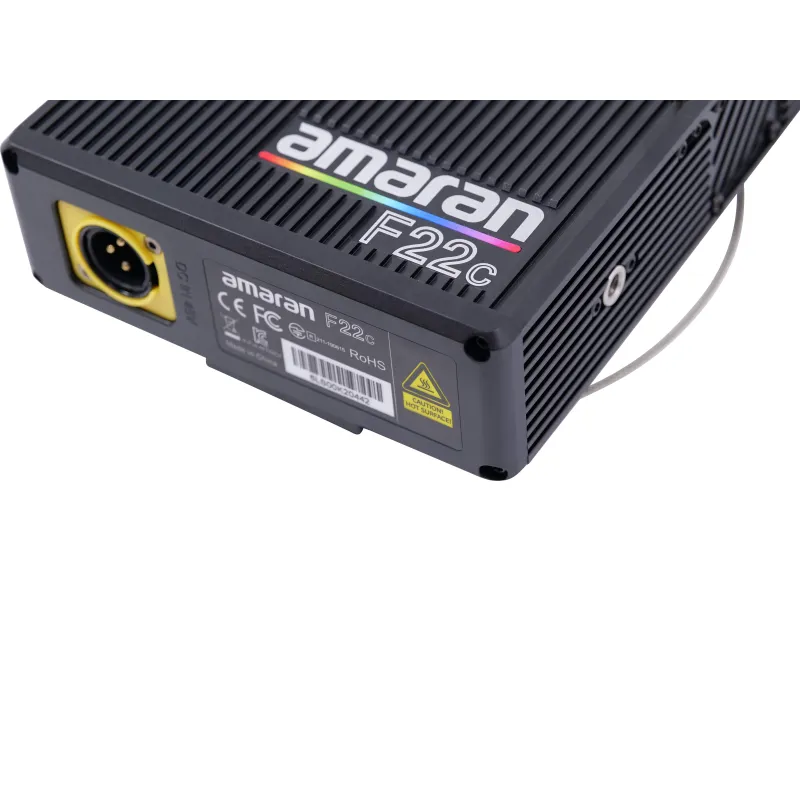

• Power Input Connection: XLR 3-Pin

Mounting

• Fixture Mount: 5/8" Stud

Remote Operation

• Remote Control Type: Bluetooth, DMX
• Wireless Range: 262.5' / 80m (Bluetooth)

Power

• AC Input Power: 100 to 240 VAC, 50 / 60 Hz
• DC Input Power: 12 to 33.6 VDC
• Power Source: AC Power, External Battery
• Max Power Consumption: 240 W
• Power Pass-Thru: No

Power Supply

• Power Supply Output: 48 VDC
• Power Supply Weight: 2.4lb / 1.1kg

Physical

• Certifications: CE, FCC, RoHS, cTUVus, as per Manufacturer
• Operating Temperature: 14 to 104F / -10 to 40C (Recommended)
