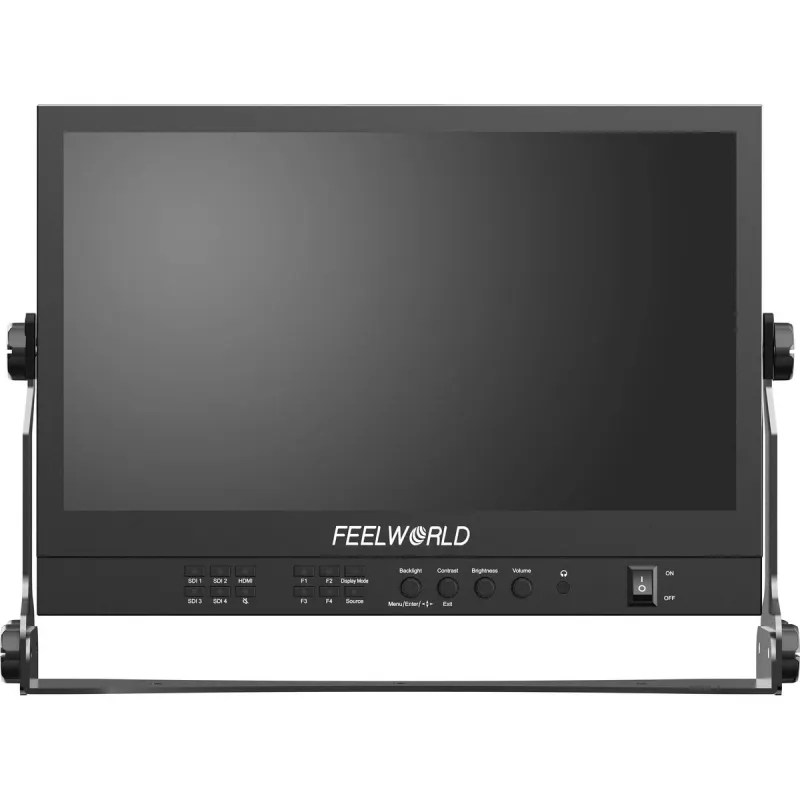

Feelworld Seetec ATEM156S 15.6 Multiview Monitor HDMI/SDI ATEM156S

The ATEM156S is the HDMI/SDI variant of the popular ATEM156 HDMI multiview monitor for (not only) ATEM switcher. The "S" version offers 4x 3G-SDI inputs/outputs in addition to the HDMI input and is therefore the ideal complement to e.g. ATEM SDI/SDI Pro/SDI Extreme ISO swotchers. Of course, the Quad View function is available to display all four SDI inputs.

• Display 15.6" (39.6 cm) IPS LED, 1920x1080, 16:9, 141 ppi, 800:1, 200 cd/m², Rec.709
• Inputs: 4x BNC (3G-SDI), 1x HDMI, 1x USB-A 2.0, 1x RJ-45 (GPI), 1x RJ-45 (RS-485)
• Outputs: 4x BNC (3G-SDI), 1x 1/8"/3.5mm headphone jack, 1x RJ-45 (RS-485)
• Supported HDMI formats: 1080p (60/59.94/30/29.97/25/24/23.98), 1080i (60/59.94/50), 720p (60/59.94/50), 576p, 576i, 480p, 480i
• Supported SDI formats: DCI 2K (60/59.94/50/30/29.97/25/24/23.98), DCI 2Ki (60/59.94/50), 1080p (60/59.94/50/30/29.97/25/24/23.98), 1080i (60/59.94/50), 1080PsF (24/23.98), 720p (60/59.94/50/30/29.97/25/24/23.98), 576p, 480p
• Power: 12V= (12-24V= / ≤21W), V-Mount battery plate.
• VESA mounting elements 100x100 mm, 75x75 mm
• Durable aluminum body
• Display modes QuadView, PIP/PBP Dual View
• Features for focus assist, 3D LUT correction (up to 36 presets), zoom, Pixel-to-Pixel, anamorphic modes, RGB histogram, false color, etc.
• Dimensions 372x262x28.4 mm, weight 1.57 kg, without accessories
• 372 x 262 x 28.4 mm, 1.81 kg
