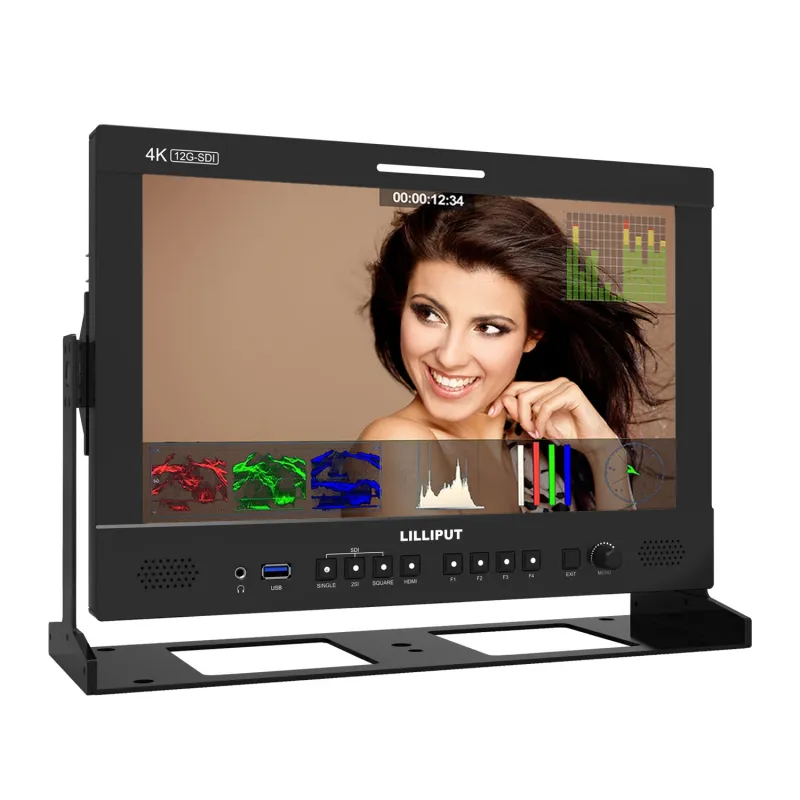

Lilliput Q13 13.3 12G-SDI Studio / Broadcast Monitor LILLI-Q13
SKU: 32674
Model: LILLI-Q13
Ean: 6950821602492
Būklė: Naujas produktas
Produktas užsakomas. Pristatymo laikas nuo 3 savaičių.
€ 1 825,45 su mokesčiais
The Lilliput Q13 is a professional studio monitor, packed with features and facilities for the professional photographer, videographer, or cinematographer.Compatible with a multitude of inputs – and featuring the option of a 12G SDI and 12G-SFP Fiber Optic input connection for broadcast quality monitoring, It also features Audio Vectoring using the standard Lissajous graph shape a- llowing you to visualize the depth and balance of a stereo recording. You also can connect the Q13 to a computer / laptop which will allow you to control the monitor via applications.
 |
 |
 |
 |
 |
 |
 |
 |
Features
- 13.3" inch panel with 3840*2160 resolution
- 300cd/m² brightness, 1000:1 contrast, 178°/178°viewing angle
- Input Ports: 2x12G-SDI, 2x3G-SDI, 12G SFP, 1xHDMI 2.0
- Ourput Ports: 2x12G-SDI loop, 1xHDMI 2.0
- Control Ports: LAN port, RS422 input & output, GPI
- Audio: Built-in speaker, Earphone jack
- 12G-SDI supporting Single/Dual/Quad Link and supporting backward compatibility
- HDMI 2.0 supports up to 4K 60Hz
- Functions: Remote Control, Quad view, Audio Vector, 3D-LUT, HDR, etc.
- 15V DC Adapter
- VESA mount plate bracket
- HDMI A/C cable
- V- mount (or Anton Bauer Mount)
- Base bracket
- 8GB USB flash drive(User guide and software included)
| Display | |
| Aspect Ratio | 16 : 9 |
| Brightness | 300 cdm² |
| Colour Space | Can Calibrate to REC.709 with optional calibration unit |
| Contrast Ratio | 1000:1 |
| Resolution | 3840 x 2160 |
| Viewing Angle | 178° / 178° |
| HDR | ST2084 300/1000/10000/HLG |
| LUT Support | 3D LUT (.cube format) |
| Screen Size | 13.3" |
| Supported Log Formats | SLog2 / SLog3 / CLog / NLog / ArriLog / JLog or User... |
| Remote Control | |
| GPI | 1 |
| LAN | 1 |
| RS422 | In / Out |
| Supported Formats | |
| HDMI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080i,50/60, 720p 50/60 |
| SDI Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| SFP Formats Supported | 2160p - 24/25/30/50/60, 1080p - 24/25/30/50/60, 1080pSF - 24/25/30, 1080i,50/60, 720p 50/60 |
| Monitor Specification | |
| Video Inputs | SDI - 2x 12G, 2x 3G (Supported 4K SDI Formats Single / Dual / Quad Link) - 1x HDMI 2.0 - 1x SFP (Optional) |
| Audio Outputs | SDI - 16ch, 48KHZ, 24 Bit // HDMI - 8ch, 48 Khz, 24 Bit // Ear Jack - 3.5mm // Speakers x2 |
| Power | |
| Compatible Batteries | V-Mount or Anton Bauer Mount |
| Input Voltage | DC 12V - 24V |
| Power Consumption | <-31.5W (15V) |
| Environment | |
| Operating Temperature | -20°c to 60°c |
| Storage Temperature | |
